OPERATION ST100A Series Flow Meter
56 Fluid Components International LLC
Root Menu

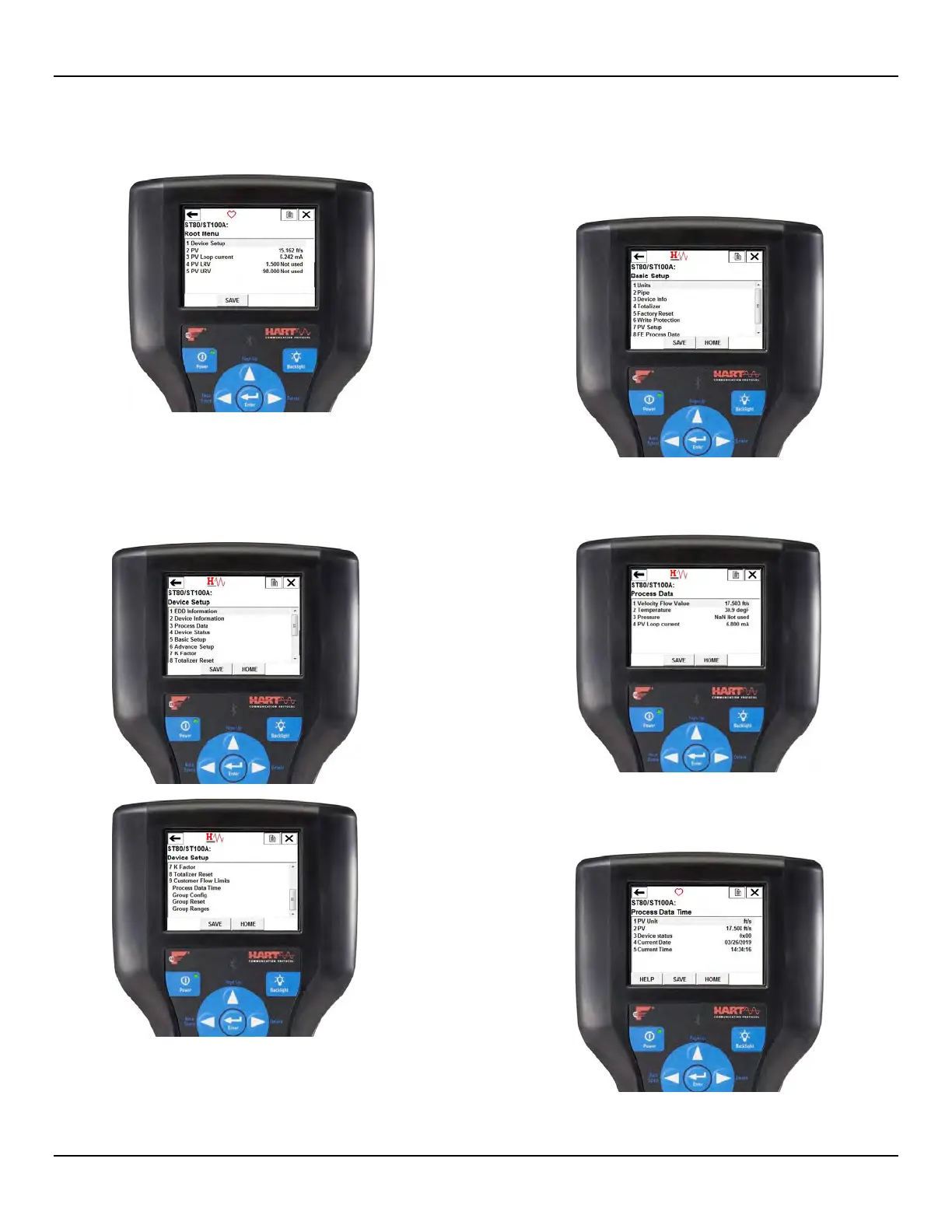

Shown below is the Root Menu as displayed on the Emerson 475 HART
communicator.
Device Setup (from Root Menu)
The Device Setup function is a gateway to ST100A Series device information,
process data and setup, both basic and advanced. Additional options include K
Factor display/adjust, totalizer reset, and customer flow limits.
Basic Setup (from Device Setup)
The Basic Setup function includes the ability to review and change the
engineering units of the process variables, review and change the plenum or pipe
size, enable or disable the Totalizer, review and change device information, reset
the operation of the ST100A Series to the factory settings, enable or disable the
write protect, and PV Setup.
Process Data Example (from Device Setup)
The Process Data screen lets you review process data including flow rate, temperature,
pressure, and the process variable’s 4-20 mA current loop output value.
Process Data Time Example (from Device Setup)
The Process Data Time screen lets you review the current process variable value and
its engineering units, device status, and the current date and time (24-hour clock).
