ST100A Series Flow Meter OPERATION
Fluid Components International LLC 57

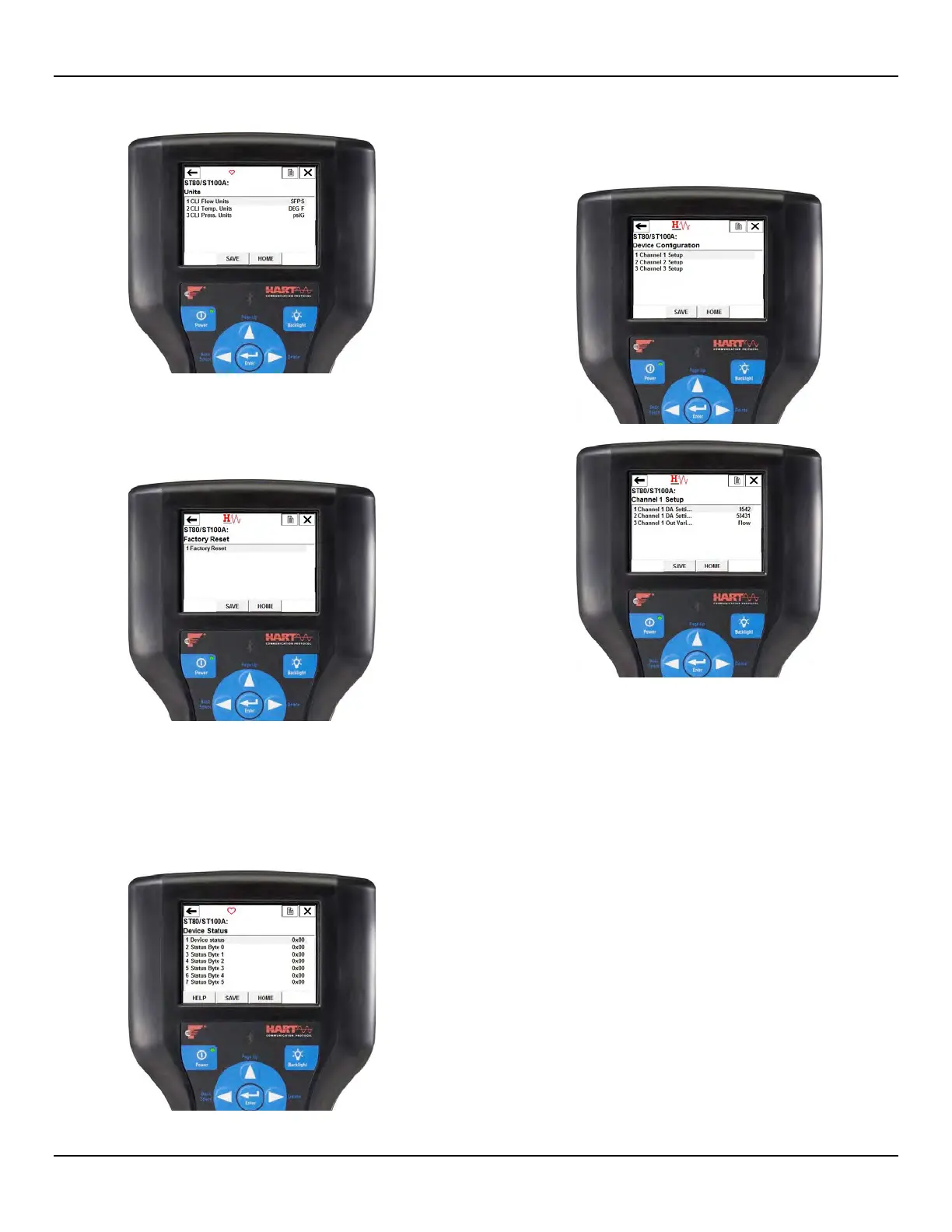

Engineering Units Example (from Basic Setup)
Factory Reset (from Basic Setup)
CAUTION – The Factory Reset command reloads the configuration and calibration
parameters that were loaded into the instrument during the original calibration and
setup. Any subsequent changes made to the calibration parameters configuration
will be lost when the Factory Reset command is executed.
Device Status (from Device Setup)
Use the device status function to see the hex values of the Command 48
Additional Device Status (6-byte field, bytes 0-5). The topmost “Device status”
shows the value of the “More Status Available” bit within the HART command
response data field (b4 in 2nd byte). If b4 is set, more status is available and the
subsequent error(s) shown in the Additional Device Status bytes (Command 48).
If b4 is cleared, there is no additional status to report. Refer to Command 48,
Additional Device Status Bytes, page 75.
Device Configuration (from Advance Setup Device Setup)
Use the device configuration function to view/set up the flow meter’s 4-20 mA
current output channels. Raw DA counts are shown for 4 mA and 20 mA and the
output variable is shown as OFF, Flow, Temperature, or Pressure.
To Next Page
