7 Operations of CEMS2000 Monitoring Software

107

FOCUSED PHOTONICS INC

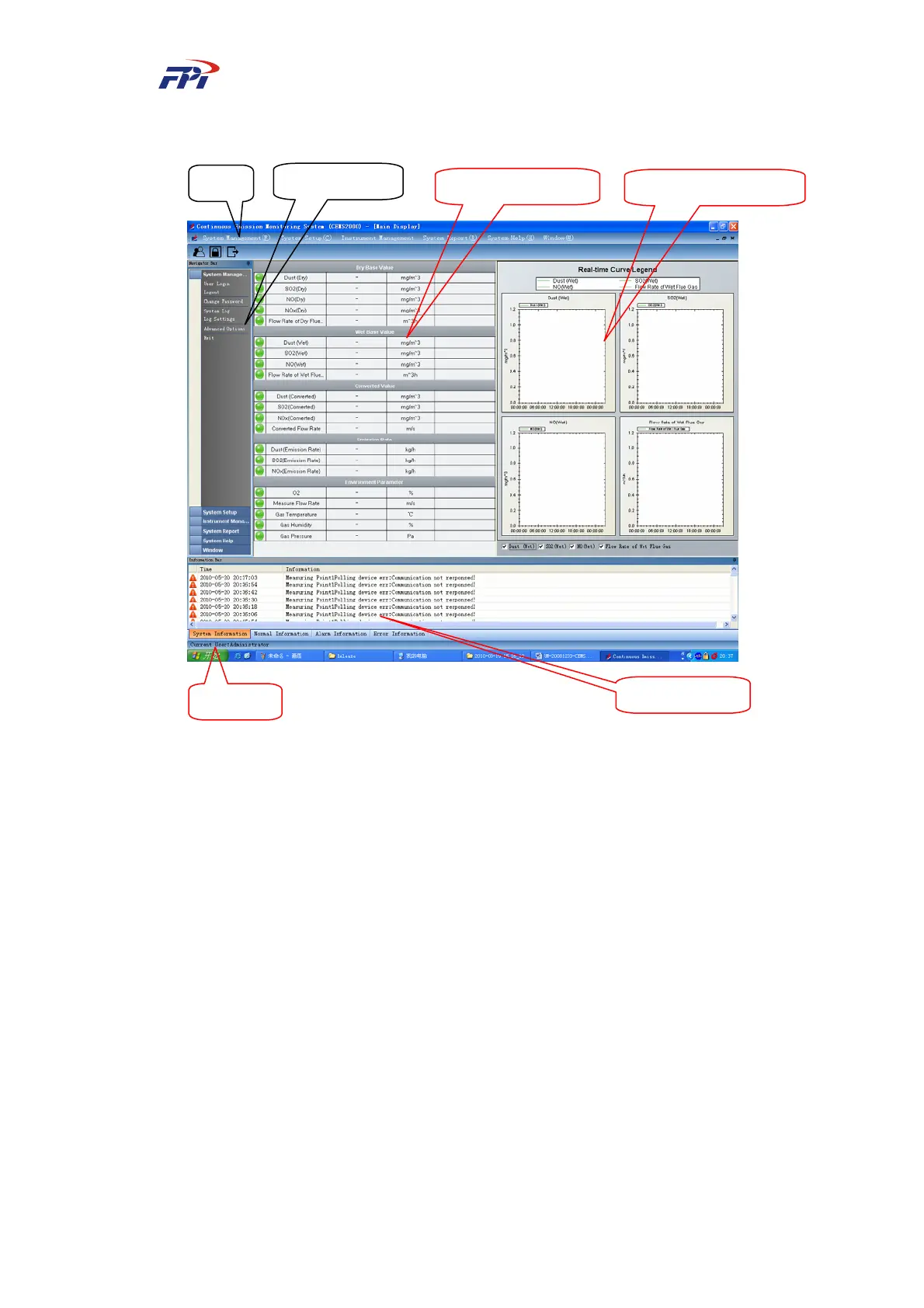

Fig 7-79 Layout of Main Window

If the you open more than one main window, you can configure each of the windows with

options of horizontal cascade, vertical cascade, close all, minimize all and maximize all.

Navigation Ba

Real-time Data Area

Real-time Curve Area

Status Ba

Information Area
