5 System Operations

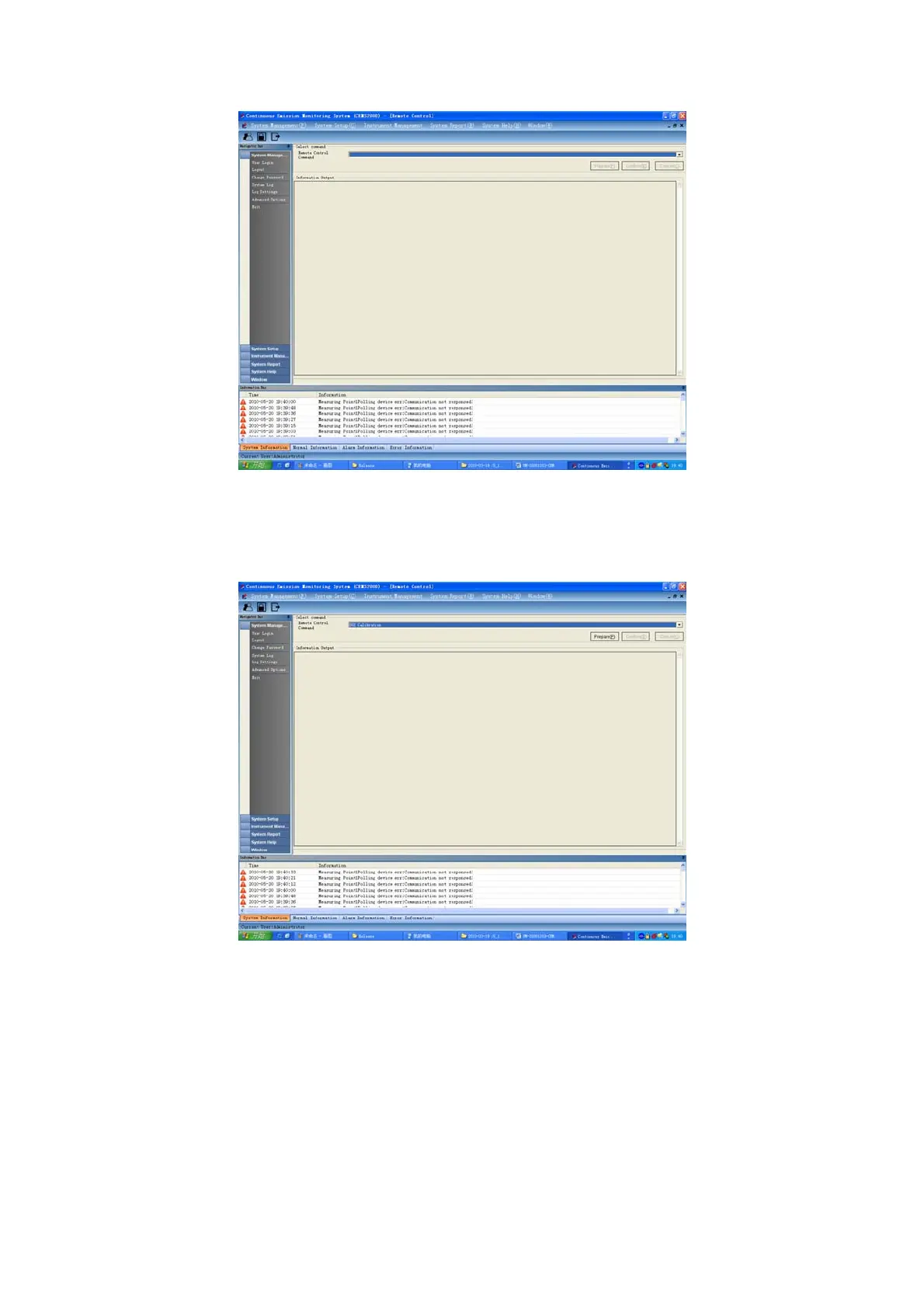

Fig 5-17 Remote Control Page

In the remote control page in Fig 5-17, you can select the command of “SO2 calibration” in

the list of “Remote Control Command”, as shown in Fig 5-18.

Fig 5-18 Pre-Calibration Page

Click the “Prepare” button to open the calibration electro-valve. Then adjust the flow rate

meter for the standard gas at bottom left of the cabinet front panel to control the flow rate at

(1.5~2) L/min and click the “OK” button to start remotely calibration.

5.3.4.3 Auto Calibration on CEMS-2000 Monitoring Software

You can configure the auto calibration parameters on CEMS-2000 monitoring software and

the system will periodically perform the calibration according to the settings. You can click
