FPI CEMS-2000 Series - Fig 4-30 System Purging 1; Fig 4-31 System Purging 2

6 Operations of OMA-2000 Spectroscopic Gas Analyzer
49
FOCUSED PHOTONICS INC

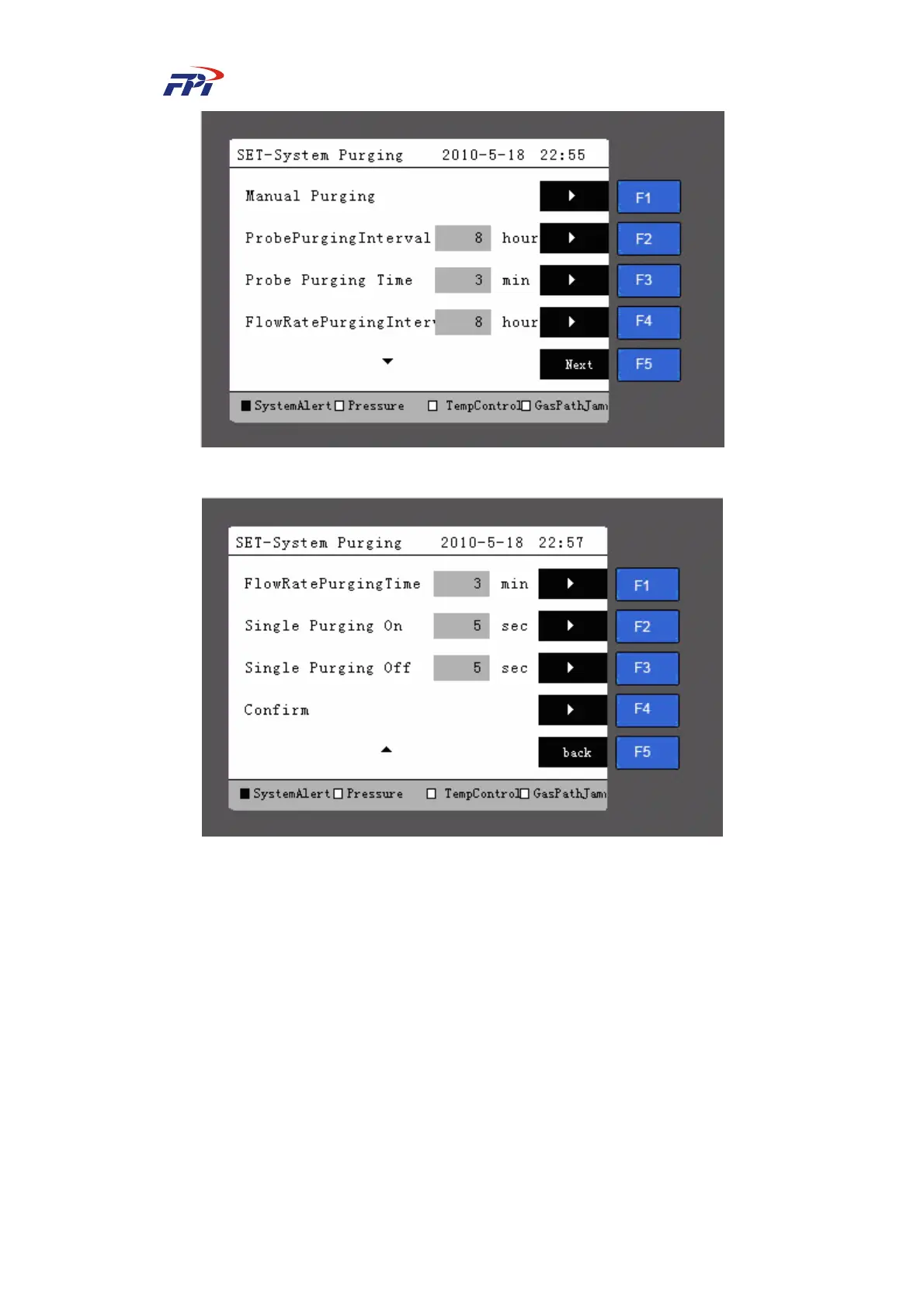

Fig 6-31 System Purging 1
Fig 6-32 System Purging 2
The meanings of items on the page are:
z Manual purging: Set the manual purging to the system with options of probe purging,
flow rate A purging and flow rate B purging;
¾ Probe purging: The purging to the sampling probe in the stack;
¾ Flow rate A purging: The purging to the full pressure tube in TPF-100 integrated
transmitter;
¾ Flow rate B purging: The purging to the static pressure tube in TPF-100 integrated
transmitter;
z Probe purging interval: Set the interval of automatic probe purging;
z Probe purging time: Set the time of automatic probe purging;
