Fronius Pull User Manual

Fitting the unreeling wirefeeder
Fitting the un-
reeling wirefeed-
er
WARNING!
An electric shock can be fatal.
If the power source is connected to the mains supply while the work described
below is being carried out, there is a risk of serious injury and damage.
▶
Only carry out the work described below when the power source mains
switch is in the "O" position and when the power source is disconnected from
the mains.

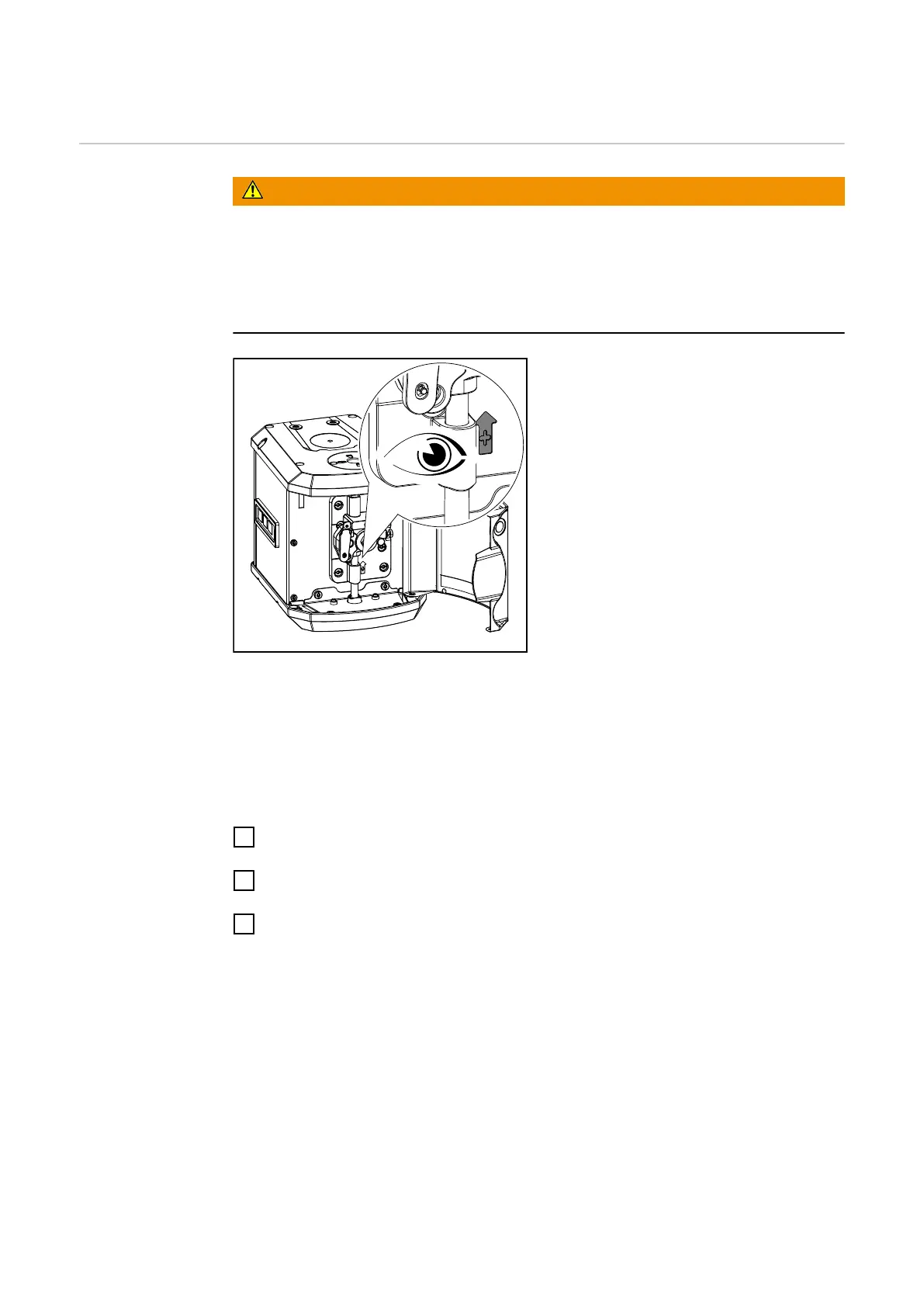

Ensure that the unreeling wirefeeder is
fitted in the correct direction. The
threading direction of the wire elec-
trode is marked with an arrow.
The unreeling wirefeeder is designed exclusively for vertical installation on the
following mounts:
-
WF Mounting WALL 4,100,846
-
WF Mounting Drum 4,100,845
Operating a 2-roller WF30i REEL R /2R unreeling wirefeeder with a basket-type
spool is not permitted.
1
In accordance with the Installation Instructions, mount the unreeling
wirefeeder onto the wall bracket or the wire drum mount
2
Use the QuickConnect option to connect the wirefeeding hose to the unreel-
ing wirefeeder
3
Use Fronius SpeedNet to connect the unreeling wirefeeder to the power
source in the welding system
