(9) Blanking cover for option 2
(10) Wire infeed

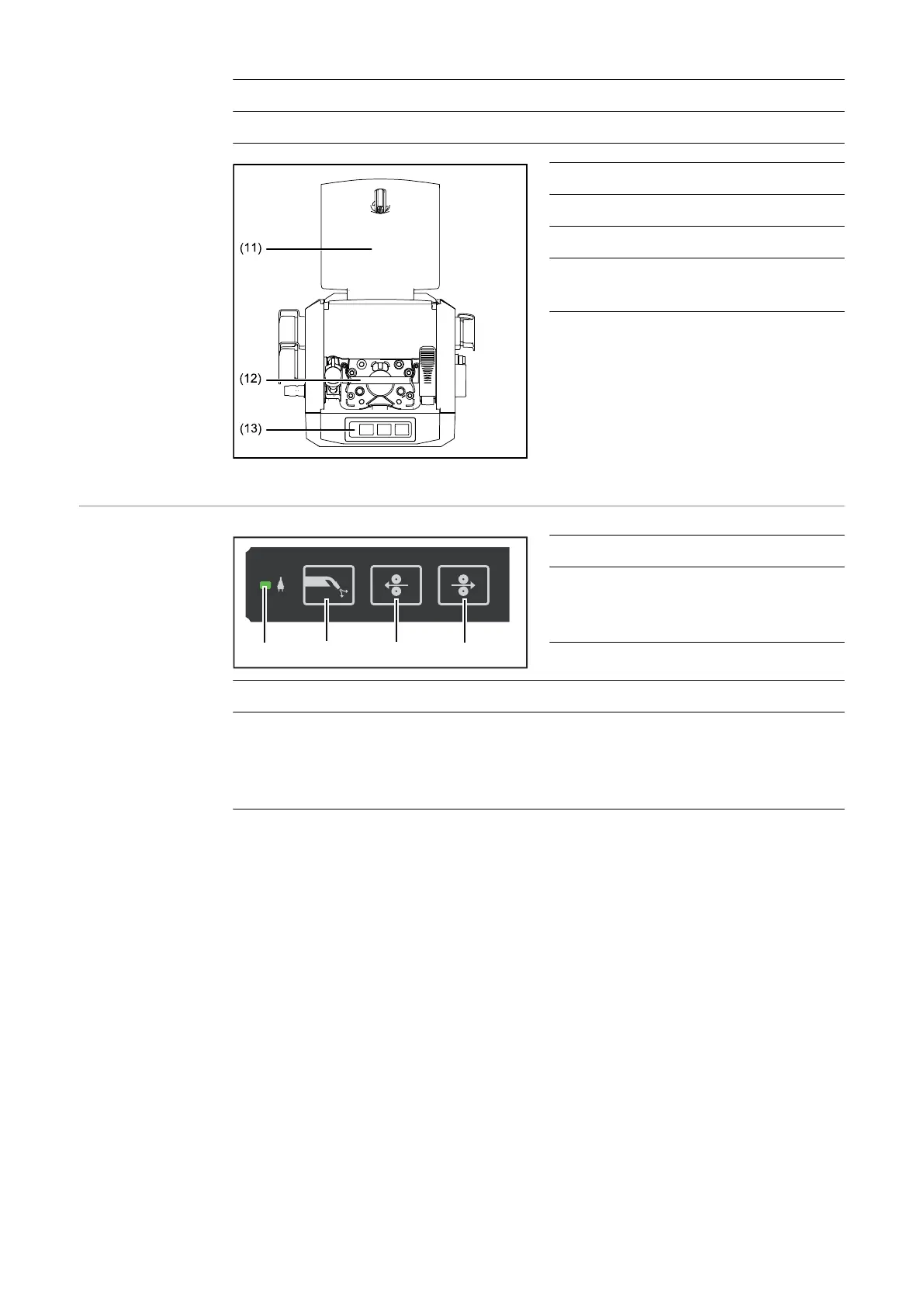

Side view
No. Function
(11) Cover
(12) Bushing
(13) Gas test / wire threading con-
trol panel (option)
Gas test/wire
threading con-
trol panel (op-
tional)
No. Function
(1) Operating status LED
Shows steady green when the
device is ready for use
No. Function
(2) Gas-test button
For setting the required gas flow rate on the pressure regulator
-
Gas will flow out for 30 seconds after the gas-test button is pressed.
Press the button again to stop the gas flow prematurely
(3) Wire retract button
For retracting the wire electrode with no accompanying flow of gas or cur-
rent
-
While the button is being pressed, the wirefeeder runs at the preset
wire retract speed
The wire electrode can be retracted using one of two methods:
Method 1
Retracting the wire electrode using the preset wire retract speed:
