Fronius Pull User Manual

Fitting the OPT/i camera mount

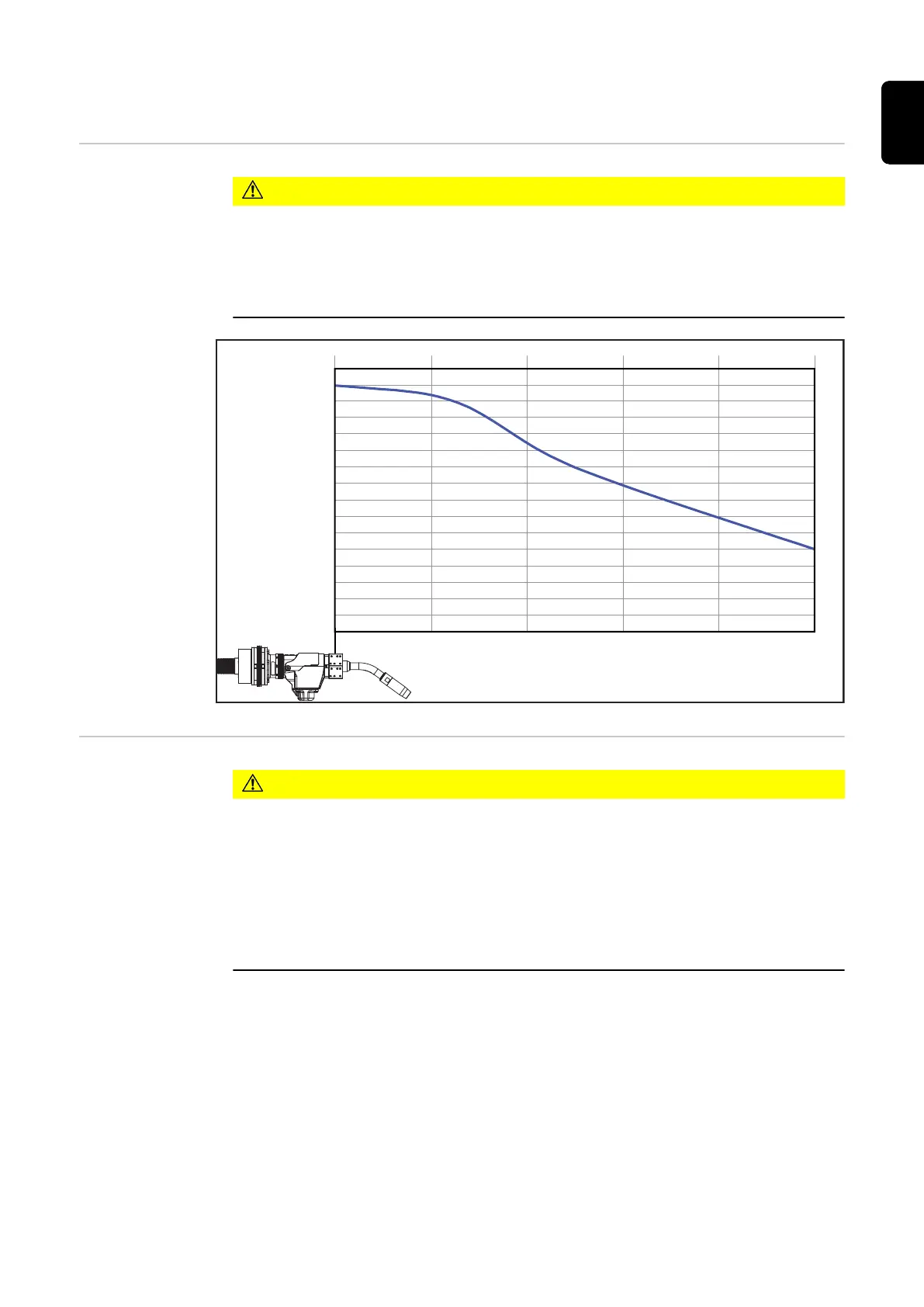

Load-bearing ca-
pacity of the
OPT/i camera
mount
CAUTION!
Danger due to mechanical overload of the system components
This can result in injury and damage to property.
▶
Load the OPT/i camera mount with a maximum of 1.5 kg.
▶
Always observe the relationship between weight and mounting distance
shown below.
0mm
1,6kg
1,5kg
1,4kg
1,3kg
1,2kg
1,1kg
1,0kg
0,9kg
0,8kg
0,7kg
0,6kg
0,5kg
0,4kg
0,3kg
0,2kg
0,1kg
0kg
50mm
100mm 150mm
200mm
250mm
Safety
CAUTION!
Risk of burns from hot torch body, hot torch body coupling and other hot weld-
ing torch components.
Before starting work on the torch body, the torch body coupling and all other
welding torch components:
▶
Allow the torch body, torch body coupling and all other welding torch com-
ponents to cool down to room temperature (+25 °C, +77 °F)
▶
Wear electrically insulated and heat protective gloves
▶
Use a suitable tool
133
EN
