Fronius Pull User Manual

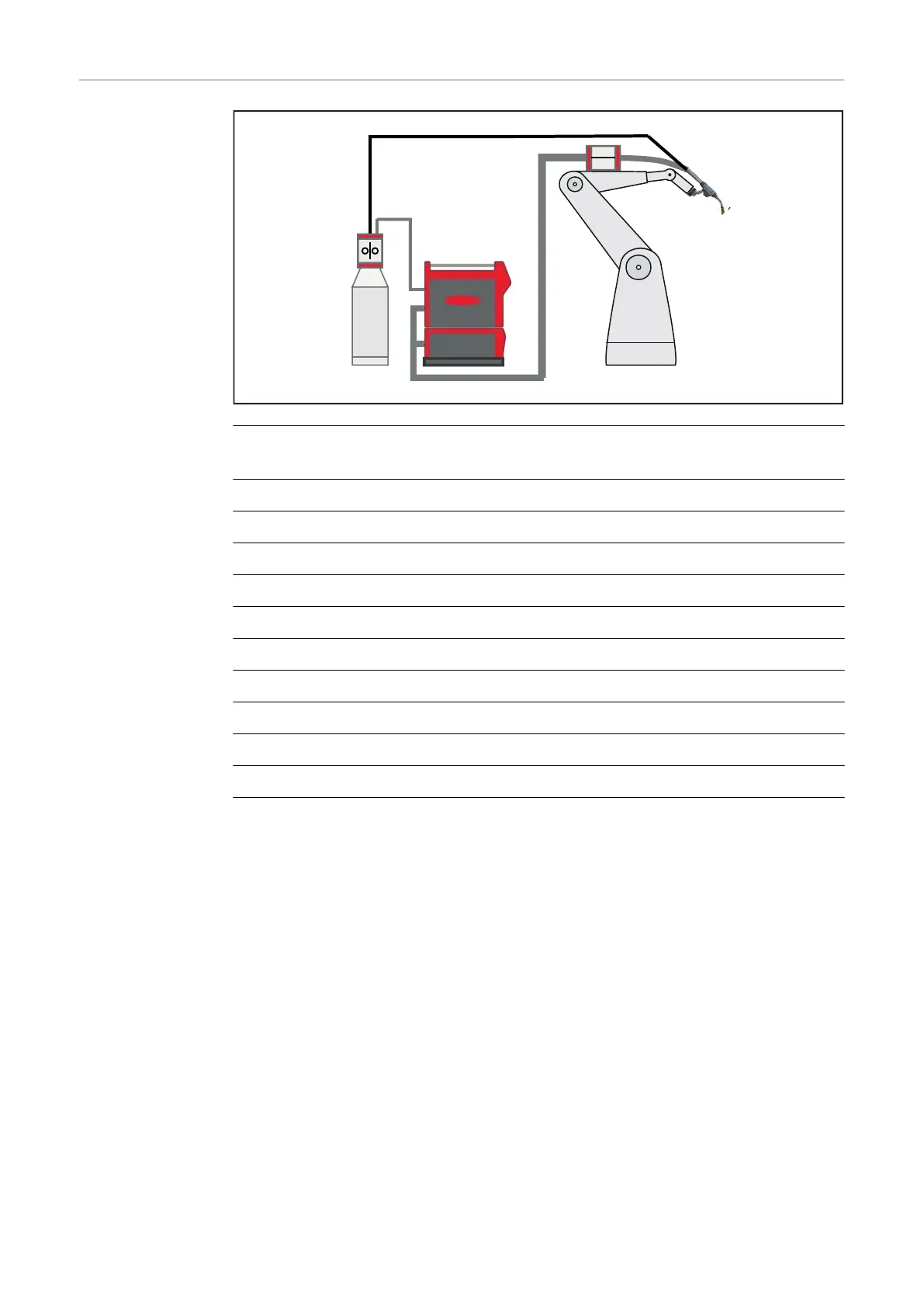

PushPull with 2-
roller unreeling
wirefeeder, wire
drum and ex-
ternal wirefeed-
ing hose
(9)
(11)**
(8)
(1)
(7)*
(2)
(10)
(
(3)
(4)
(5)
(6)
(1) Unreeling wirefeeder WF 30i REEL 2R
+ WF Mounting Drum
(2) SpeedNet cable COM
(3) TPSi power source
(4) CU cooling unit
(5) Upright console
(6) HP interconnecting hosepack
(7) Wirefeeding hose with inner liner
(8) SplitBox SB 500i R
(9) MHP /i R welding torch hosepack with external wirefeeding hose
(10) WF 25i Robacta Drive
(11) MHP /i R robot welding torch
Maximum wirefeed length:
max. 8 m between drive unit and unreeling wirefeeder
(max. 10 m with PowerLiner)
Possible wire diameters:
0.8 - 1.6 mm
Welding process:
Standard, Pulse, LSC, PMC, PMC-MIX-DRIVE
IMPORTANT!
-
This configuration is only possible with wire drum. A wirespool cannot be
used.
-
Do not use a wire straightening section or guide roller in this configuration.
* Use the largest inner liner (incl. basic kit)
** Use the inner liner corresponding to the wire diameter (incl. basic kit)
