Fronius Pull User Manual

PushPull with
wire buffer, 4-
roller unreeling
wirefeeder and
wire drum
(8)
(4)
(5)
(12)**
(10)*
(1)*
(6)
(11)
(7)
(2)
(3)
(1)**
(9)
(1)*

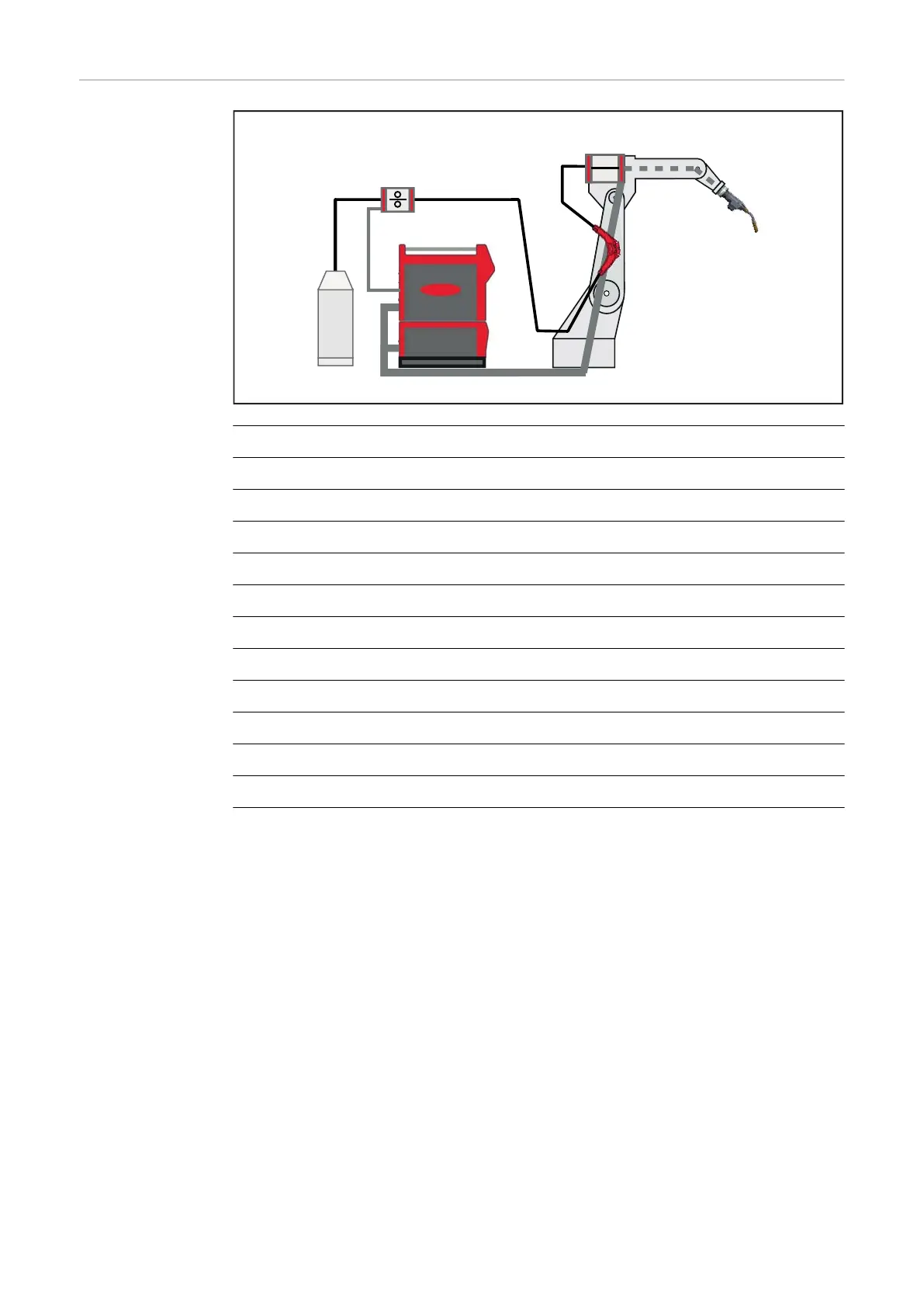

(1) Wirefeeding hose with inner liner
(2) SpeedNet cable COM
(3) Unreeling wirefeeder WF 25i REEL 4R
(4) TPSi power source
(5) CU cooling unit
(6) Upright console
(7) HP interconnecting hosepack
(8) SplitBox SB 500i R
(9) Wire buffer
(10) MHP /i R torch hosepack
(11) WF 25i Robacta Drive
(12) MTB /i R robot welding torch
Maximum wirefeed length:
-
max. 4 m between drive unit and wire buffer
-
max. 6 m between wire buffer and unreeling wirefeeder
-
max. 8 m between unreeling wirefeeder and wire drum
(max. 10 m with PowerLiner)
Possible wire diameters:
0.8 - 2.0 mm aluminium, 0.8 - 1.6 mm steel
Welding process:
Standard, Pulse, LSC, PMC, PMC-MIX-DRIVE
* Use the largest inner liner (incl. basic kit)
** Use the inner liner corresponding to the wire diameter (incl. basic kit)
