SplitBox SB 500i R / SB 500i R PAP
SB 500i R con-
trol elements,
connections and
mechanical com-
ponents

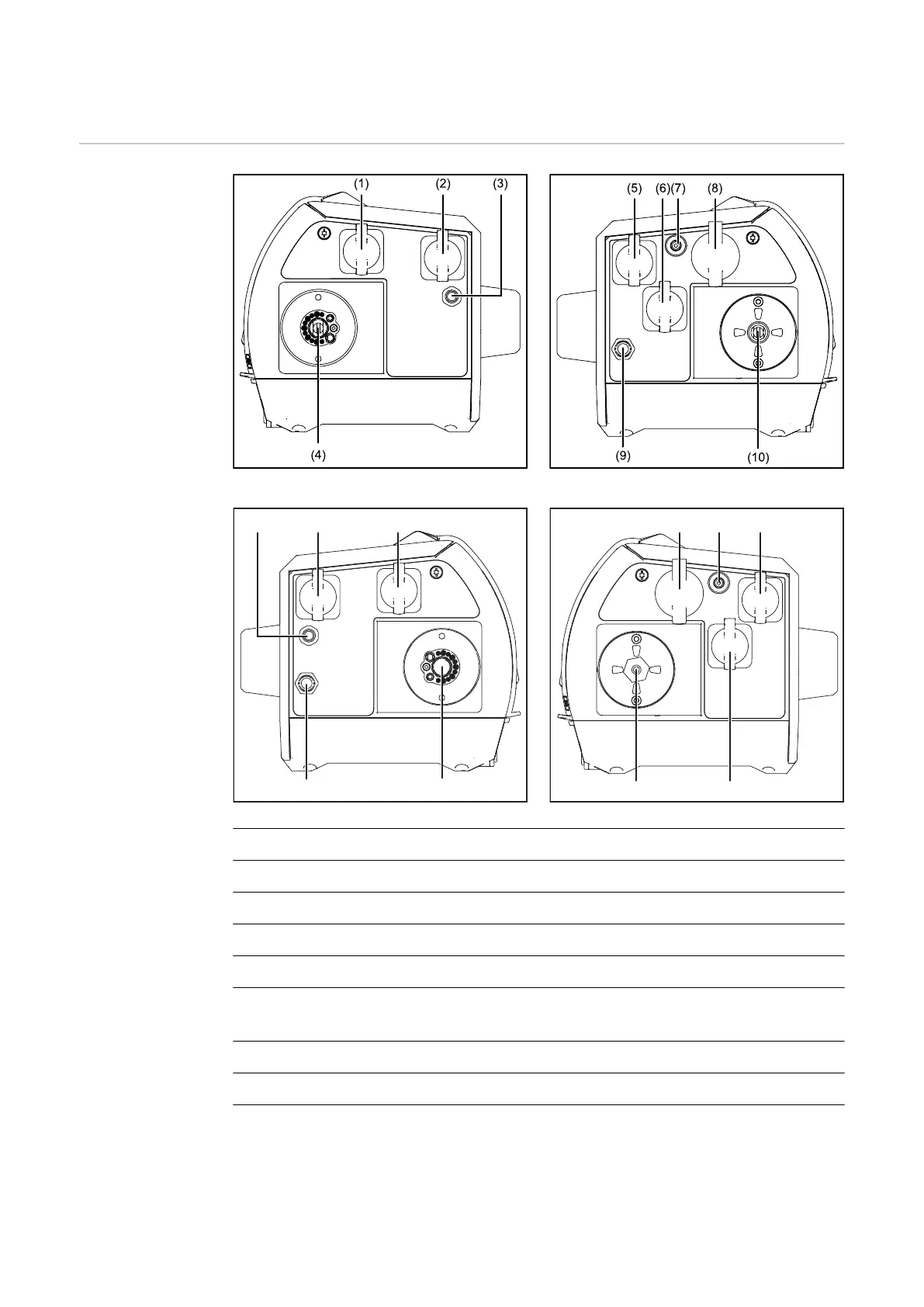

Front of SB 500i R (right variant) Rear of SB 500i R (right variant)
(1)(3) (6)
(9) (4)
Front of SB 500i R (left variant)
(7)(8) (5)
(2)(10)
Rear of SB 500i R (left variant)
No. Function
(1) Blanking cover for option 3
(2) Blanking cover for option 4
(3) Blanking cover for option 1
(4) Welding torch connection
(5) SpeedNet connection
for connecting the SpeedNet cable from the interconnecting hosepack
(6) Blanking cover for option 5
(7) Shielding gas connection
(8) (+) - current socket
for connecting the power cable from the interconnecting hosepack
