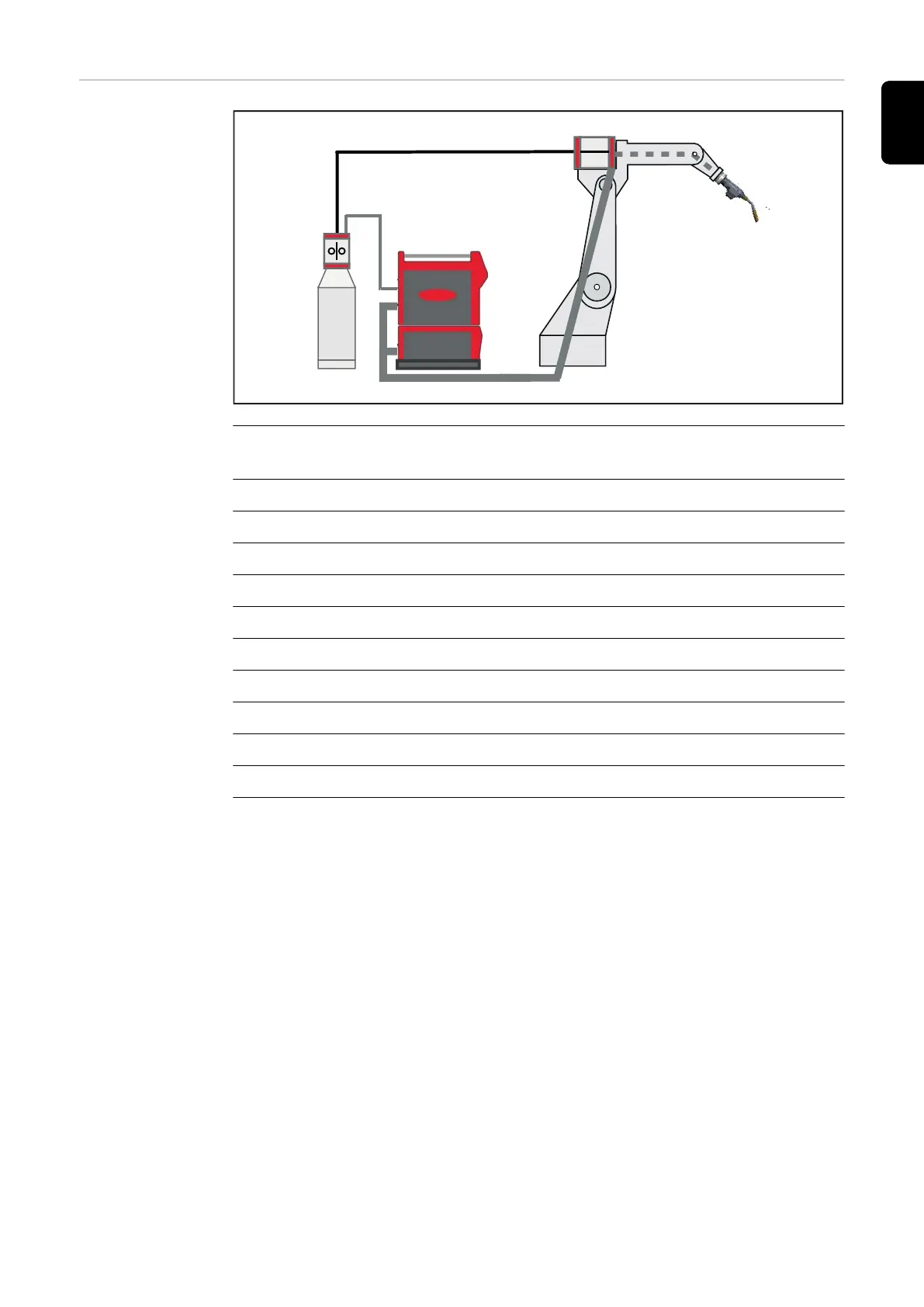

Fronius Pull User Manual

PushPull with 2-
roller unreeling
wirefeeder and
wire drum
(8)
(4)
(5)
(11)**
(9)*
(3)*
(6)
(10)
(7)
(1)
(2)
(1
(
(1) Unreeling wirefeeder WF 30i REEL 2R
+ WF Mounting Drum
(2) SpeedNet cable COM
(3) Wirefeeding hose with inner liner
(4) TPSi power source
(5) CU cooling unit
(6) Upright console
(7) HP interconnecting hosepack
(8) SplitBox SB 500i R
(9) MHP /i R torch hosepack
(10) WF 25i Robacta Drive
(11) MHP /i R robot welding torch
Maximum wirefeed length:
max. 8 m between drive unit and unreeling wirefeeder
(max. 10 m with PowerLiner)
Minimum length between wirefeeder and drive unit:
4 m
Possible wire diameters:
0.8 - 1.6 mm
Welding process:
Standard, Pulse, LSC, PMC, PMC-MIX-DRIVE
IMPORTANT! This configuration is only possible with wire drum. A wirespool
cannot be used.
* Use the largest inner liner (incl. basic kit)
** Use the inner liner corresponding to the wire diameter (incl. basic kit)
