Fronius Pull User Manual

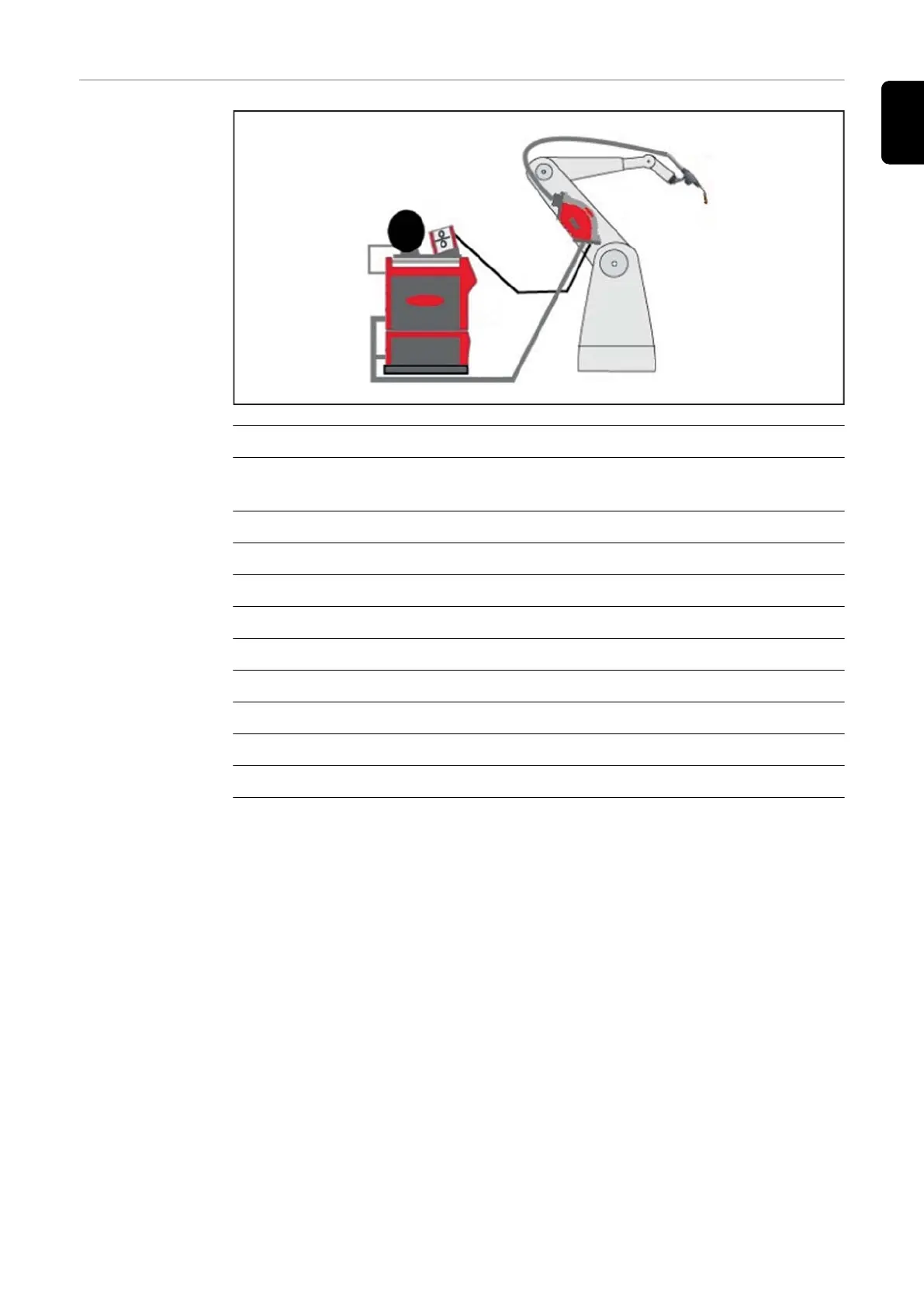

CMT with SB 60i,
4-roller unreel-
ing wirefeeder
and wirespool
(3)
(4)
(11)**
(8)
(5)
(6)
(1)
(7)**
(2)
(9)*
(2)
(10)
(1) SpeedNet cable COM
(2) Unreeling wirefeeder WF 25i REEL 4R
+ OPT/i WF Reel carriage D300
(3) TPSi power source
(4) CU cooling unit
(5) Upright console
(6) HP interconnecting hosepack SB 60i
(7) Wirefeeding hose with inner liner
(8) SplitBox SB 60i R
(9) MHP /i R torch hosepack
(10) WF 60i Robacta Drive CMT
(11) MTB /i R robot welding torch
Maximum wirefeed length:
-
max. 4 m between drive unit and SB 60i R
-
max. 6 m between SB 60i R and unreeling wirefeeder
Minimum length between wirefeeder and drive unit:
1 m
Possible wire diameters:
0.8 - 1.6 mm aluminium, 0.8 - 1.4 mm steel
Welding processes:
Standard, Pulse, LSC, PMC, CMT
* Use the largest inner liner (incl. basic kit)
** Use the inner liner corresponding to the wire diameter (incl. basic kit)
