SplitBox SB 60i R
SB 60i R:
control ele-
ments, connec-
tions and mech-
anical compon-
ents
A
B

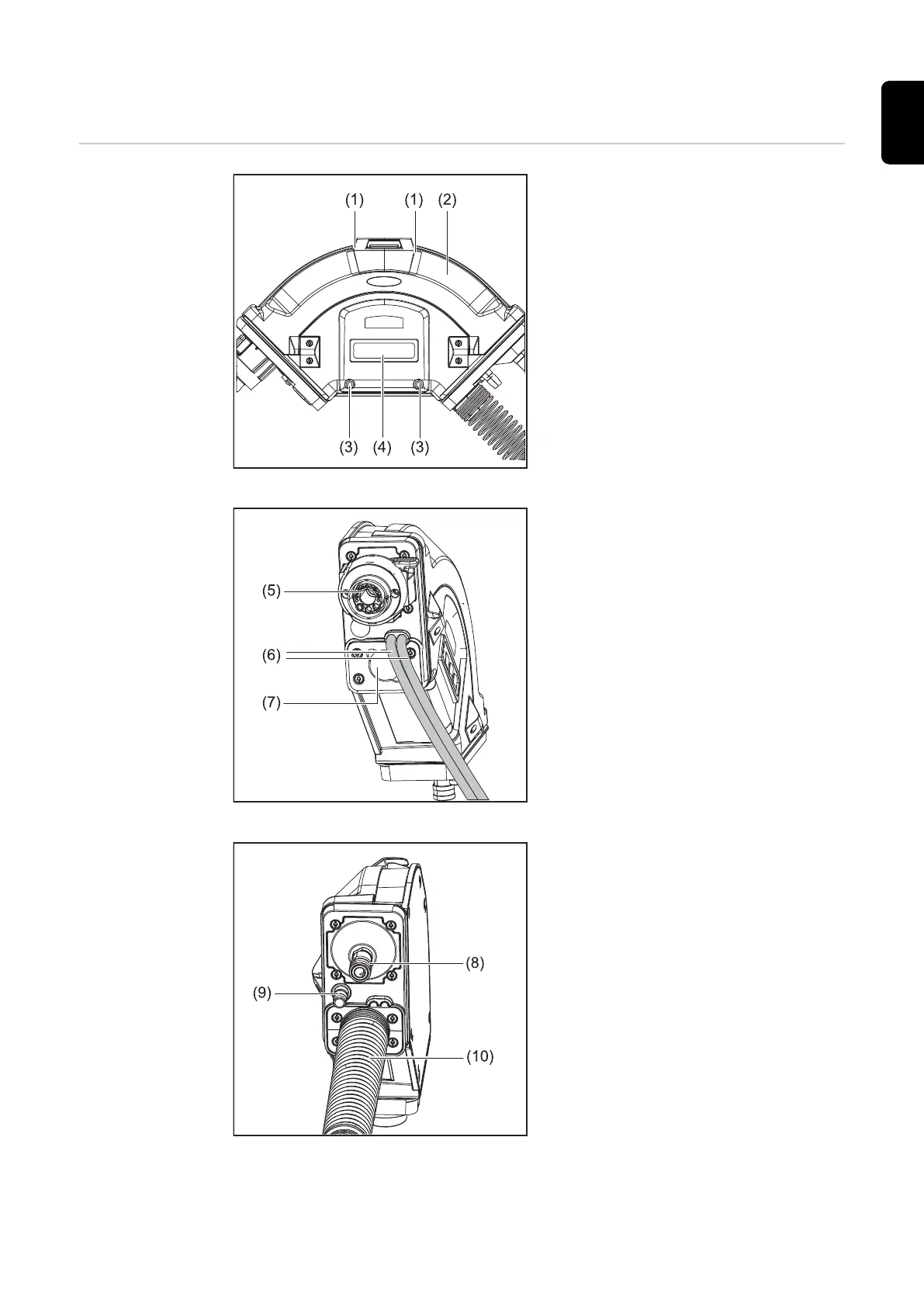

Front
(1) Hole for fitting to robot
(2) Cover
(3) Hole for fitting to robot
(4) Blanking cover / gas test / wire
threading control panel option
A - Welding torch end
(5) Welding torch connection
(6) Coolant hoses to welding torch
(7) Blanking cover (SpeedNet or
external sensor option)
B - Power source end
(8) Wire infeed
(via QuickConnect and inner
liner)
(9) 16 bar gas purging (option)
(10) Hosepack (fixed)
preconfigured for gas / water-
cooled applications
3 / 4 / 8 m
