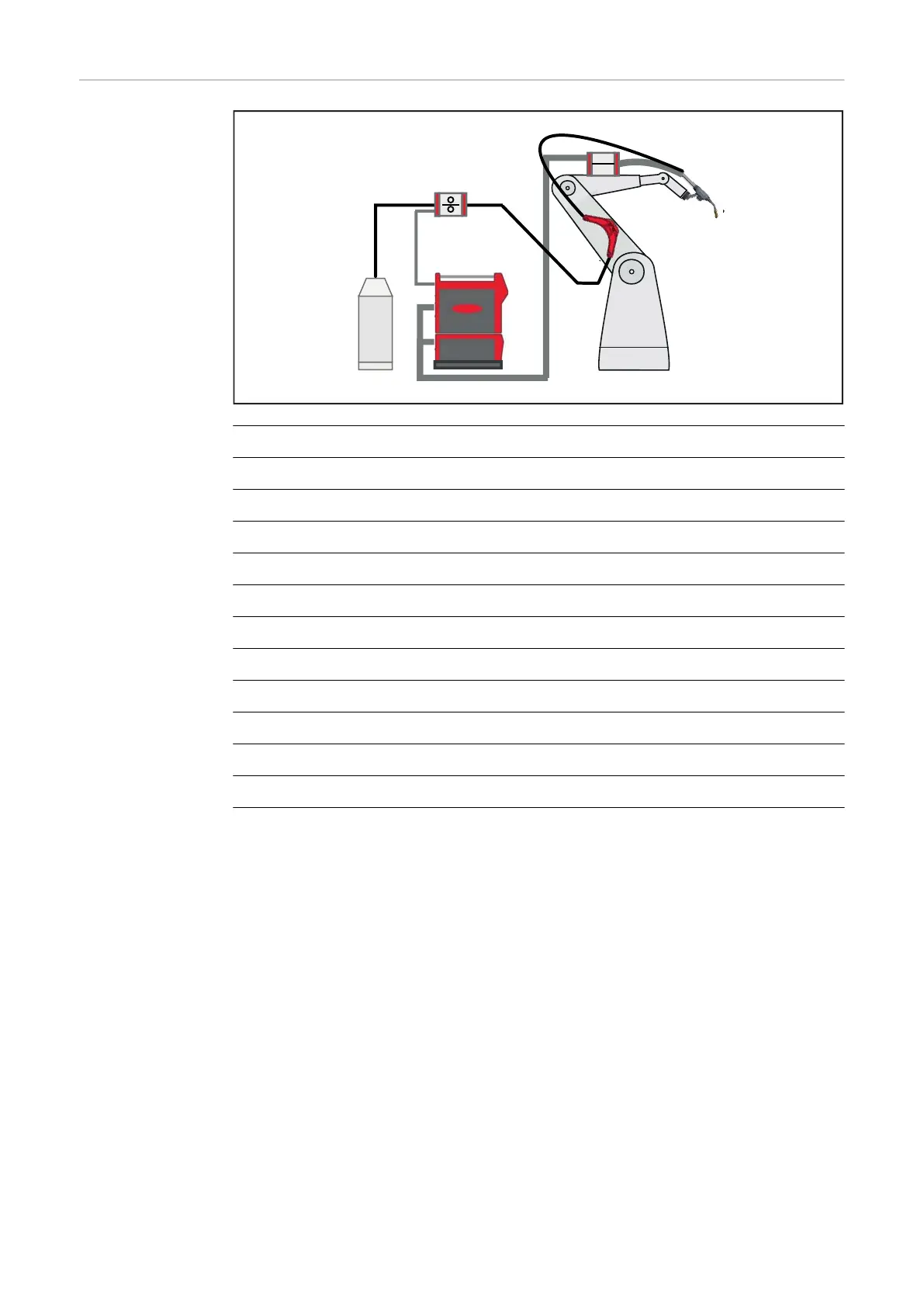

Fronius Pull User Manual

CMT with SB
500i, 4-roller un-
reeling wirefeed-
er, wire drum and
external
wirefeeding hose
(9)
(4)
(5)
(12)**
(8)
(6)
(7)
(1)*
(1)**
(2)
(10)*
(3)
(11)
(
(
*
(1) Wirefeeding hose with inner liner
(2) SpeedNet cable COM
(3) Unreeling wirefeeder WF 25i REEL 4R
(4) TPSi power source
(5) CU cooling unit
(6) Upright console
(7) HP interconnecting hosepack
(8) Wire buffer
(9) SplitBox SB 500i R
(10) MHP /i R welding torch hosepack with external wirefeeding hose
(11) WF 60i Robacta Drive CMT
(12) MTB /i R robot welding torch
Maximum wirefeed length:
-
max. 4 m between drive unit and wire buffer
-
max. 6 m between wire buffer and unreeling wirefeeder
-
max. 8 m between unreeling wirefeeder and wire drum
(max. 10 m with PowerLiner)
Minimum length between wirefeeder and drive unit:
1 m
Possible wire diameters:
0.8 - 1.6 mm aluminium, 0.8 - 1.4 mm steel
Welding process:
Standard, Pulse, LSC, PMC, CMT
* Use the largest inner liner (incl. basic kit)
** Use the inner liner corresponding to the wire diameter (incl. basic kit)
