Fronius Pull User Manual

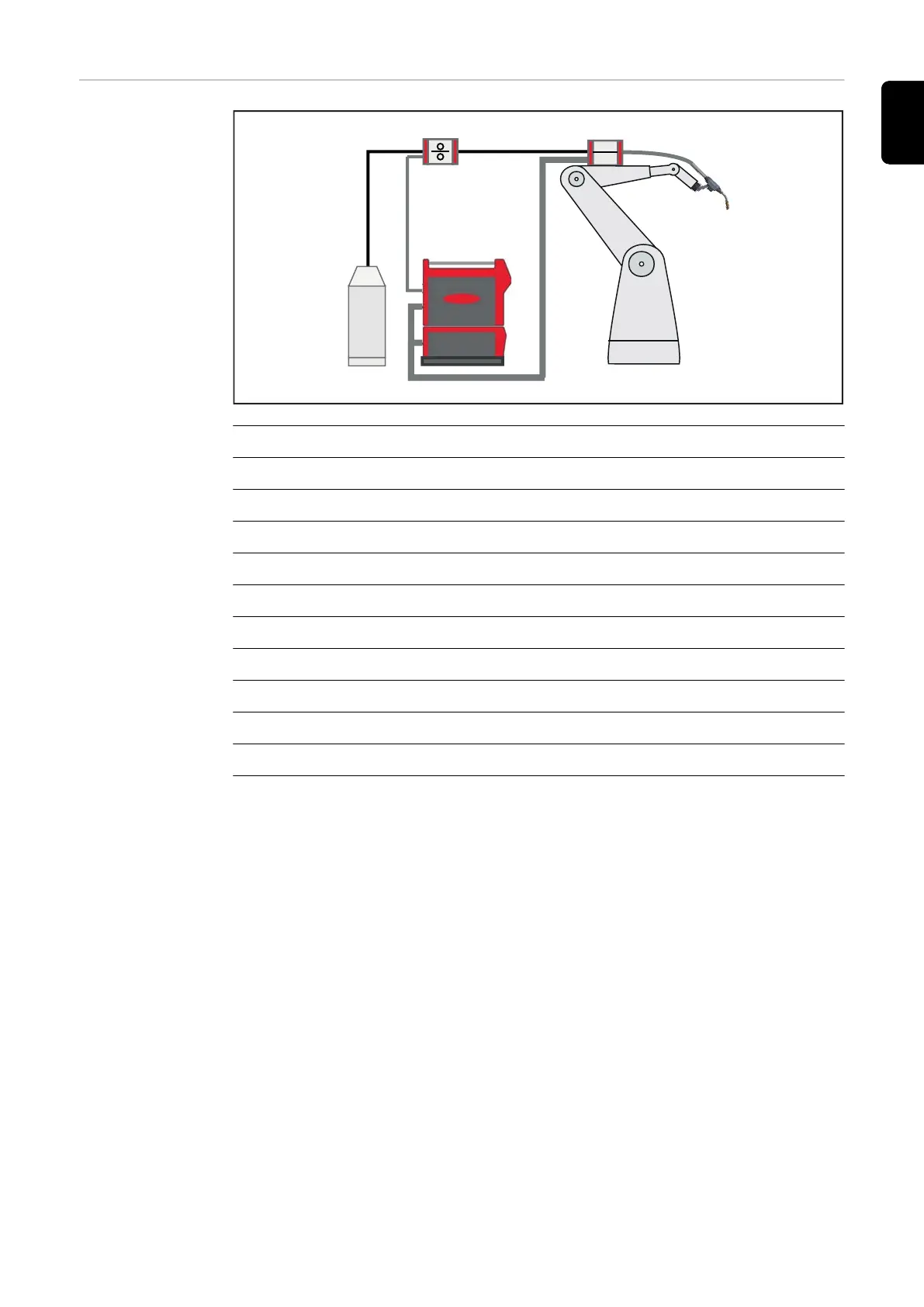

PushPull with 4-
roller unreeling
wirefeeder and
wire drum
(8)
(11)**
(10)
(1)*
(9)*
(2)
(3)
(1)*
(4)
(5)
(6)
(7)
(1) Wirefeeding hose with inner liner
(2) SpeedNet cable COM
(3) Unreeling wirefeeder WF 25i REEL 4R
(4) TPSi power source
(5) CU cooling unit
(6) Upright console
(7) HP interconnecting hosepack
(8) SplitBox SB 500i R
(9) MHP /i R torch hosepack
(10) WF 25i Robacta Drive
(11) MTB /i R robot welding torch
Maximum wirefeed length:
-
max. 15 m between drive unit and unreeling wirefeeder
(max. 20 m with PowerLiner)
-
max. 8 m between unreeling wirefeeder and wire drum
(max. 10 m with PowerLiner)
Minimum length between unreeling wirefeeder and drive unit:
4 m
Possible wire diameters:
0.8 - 2.0 mm
Welding process:
Standard, Pulse, LSC, PMC
* Use the largest inner liner (incl. basic kit)
** Use the inner liner corresponding to the wire diameter (incl. basic kit)
