Fronius Pull User Manual

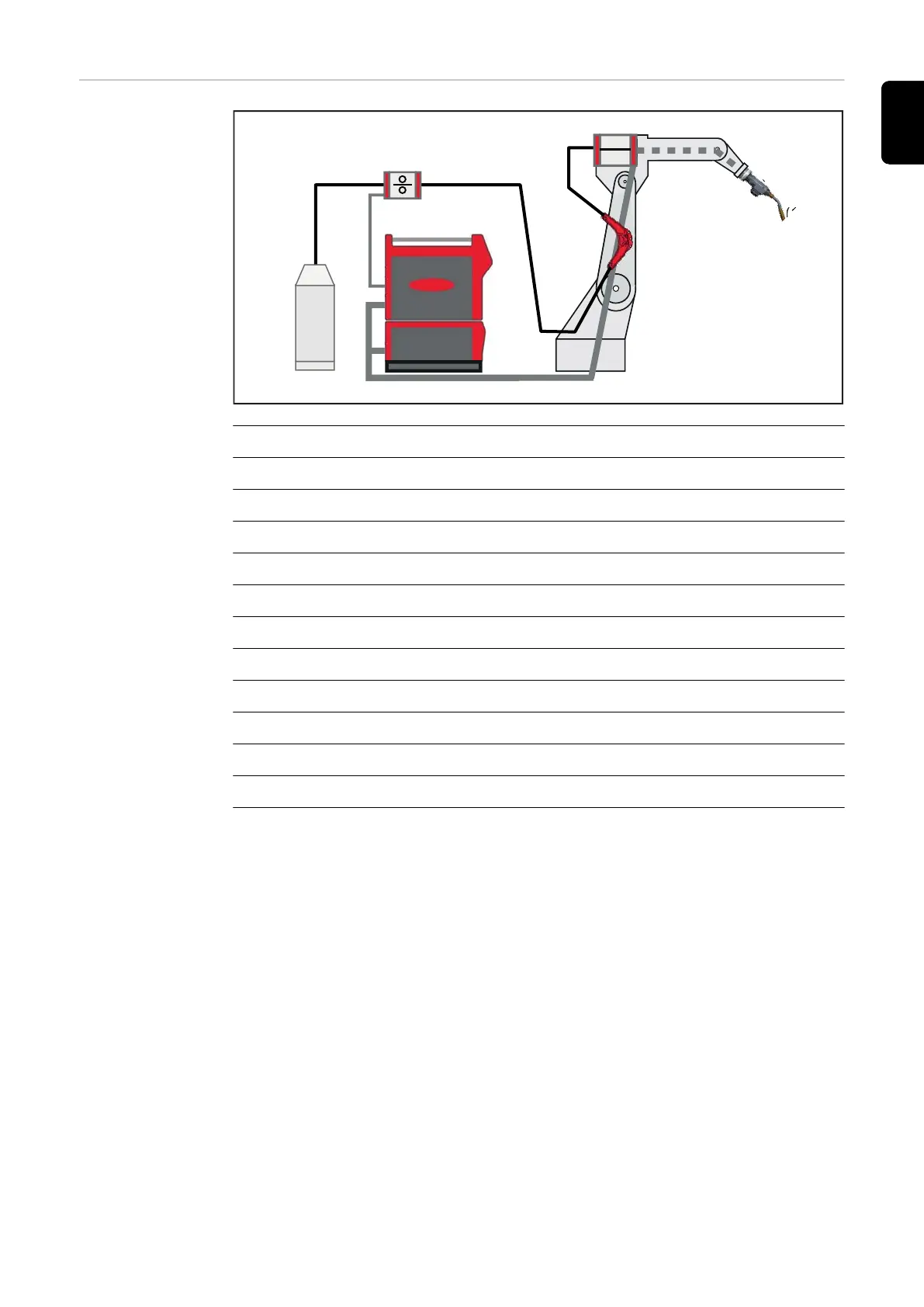

CMT with SB
500i, 4-roller un-
reeling wirefeed-
er and wire drum
(8)
(12)**
(9)
(10)*
(7)
(3)
(2)(1)*
(11)
(1)**
(1)*
(1
(
(
(
(4)
(5)
(6)
(1) Wirefeeding hose with inner liner
(2) SpeedNet cable COM
(3) Unreeling wirefeeder WF 25i REEL 4R
(4) TPSi power source
(5) CU cooling unit
(6) Upright console
(7) HP interconnecting hosepack
(8) SplitBox SB 500i R
(9) Wire buffer
(10) MHP /i R torch hosepack
(11) WF 60i Robacta Drive CMT
(12) MTB /i R robot welding torch
Maximum wirefeed length:
-
max. 4 m between drive unit and wire buffer
-
max. 6 m between wire buffer and unreeling wirefeeder
-
max. 8 m between unreeling wirefeeder and wire drum
(max. 10 m with PowerLiner)
Minimum length between wirefeeder and drive unit:
1 m
Possible wire diameters:
0.8 - 1.6 mm aluminium, 0.8 - 1.4 mm steel
Welding process:
Standard, Pulse, LSC, PMC, CMT
* Use the largest inner liner (incl. basic kit)
** Use the inner liner corresponding to the wire diameter (incl. basic kit)
