Fronius Pull - Pushpull with 4-Roller Unreeling Wirefeeder and Wirespool

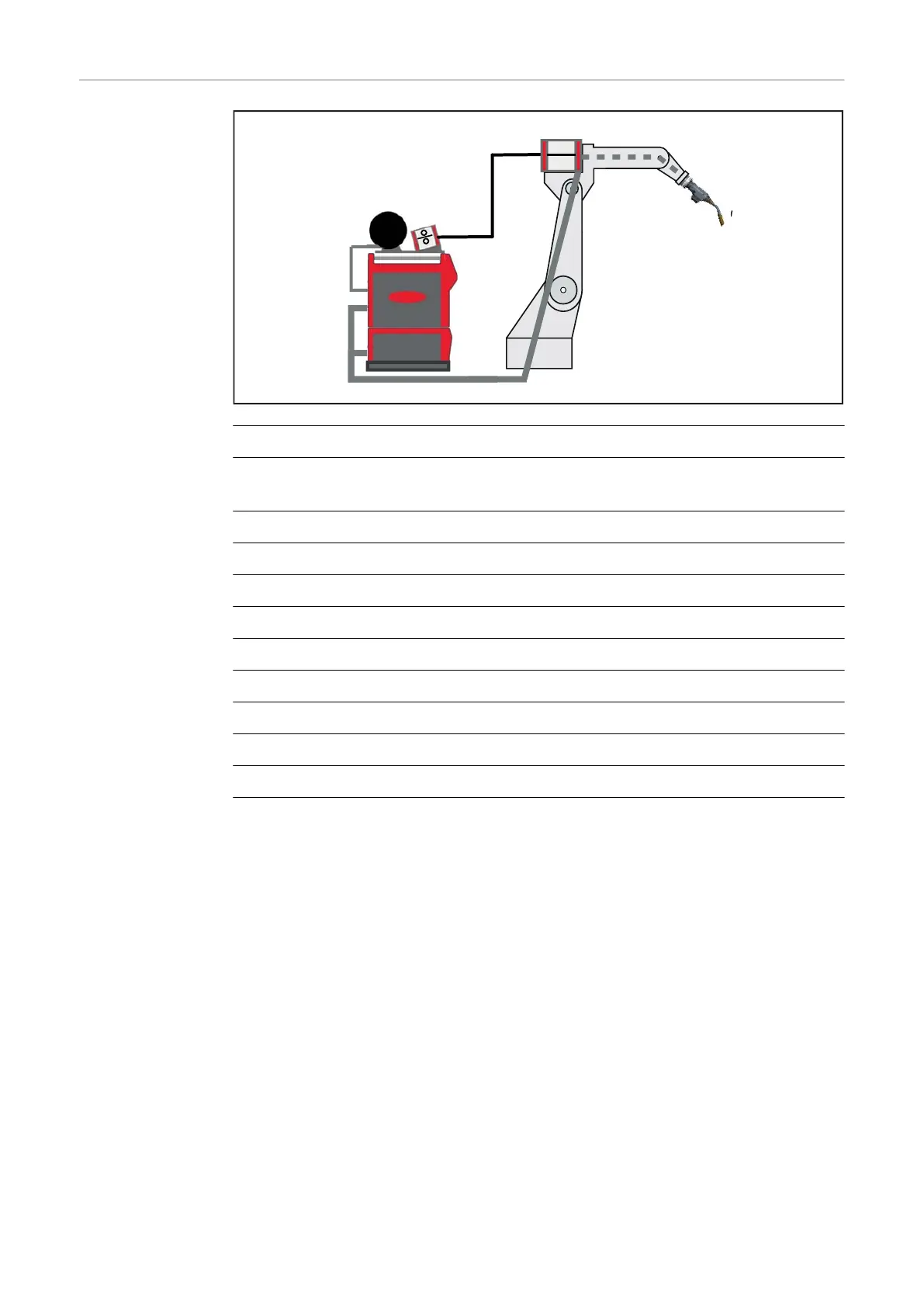

PushPull with 4-
roller unreeling
wirefeeder and
wirespool
(8)
(11)**
(9)*
(1)
(10)
(2)
(7)*
(
(2)
(3)
(4)
(5)
(6)
(1) SpeedNet cable COM
(2) Unreeling wirefeeder WF 25i REEL 4R
+ OPT/i WF Reel carriage D300
(3) TPSi power source
(4) CU cooling unit
(5) Upright console
(6) HP interconnecting hosepack
(7) Wirefeeding hose with inner liner
(8) SplitBox SB 500i R
(9) MHP /i R torch hosepack
(10) WF 25i Robacta Drive
(11) MTB /i R robot welding torch
Maximum wirefeed length:
max. 15 m between drive unit and unreeling wirefeeder
(max. 20 m with PowerLiner)
Minimum length between wirefeeder and drive unit:
4 m
Possible wire diameters:
0.8 - 2.0 mm
Welding process:
Standard, Pulse, LSC, PMC
* Use the largest inner liner (incl. basic kit)
** Use the inner liner corresponding to the wire diameter (incl. basic kit)
