Fronius Pull - PAP Robot Setups

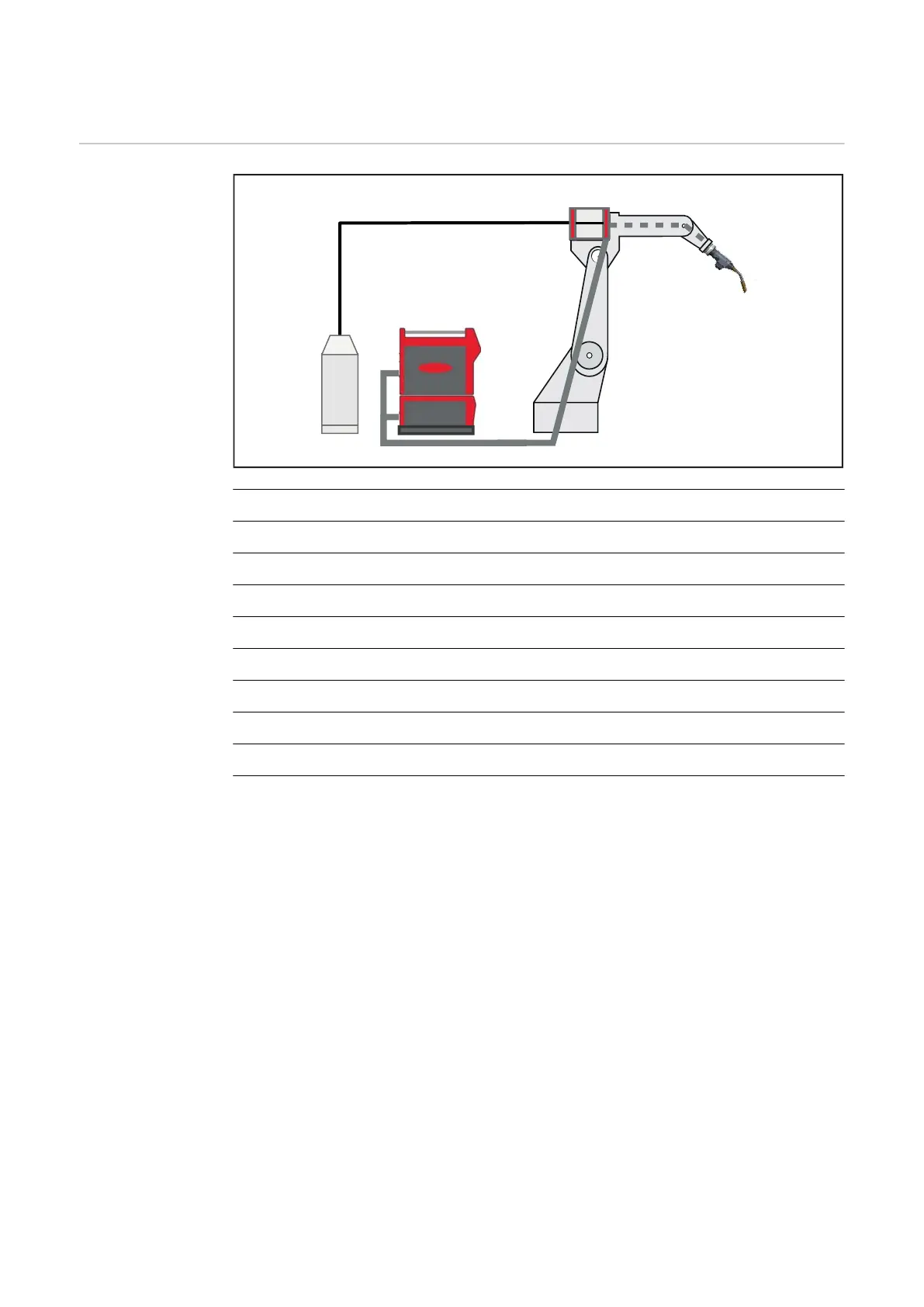

System configurations - PAP
PowerDrive with
wire drum
(8)
(2)
(3)
(9)**
(7)*
(1)*
(4)
(6)
(5)
(
(1) Wirefeeding hose with inner liner
(2) TPSi power source
(3) CU cooling unit
(4) Upright console
(5) HP interconnecting hosepack
(6) SplitBox SB 500i R
(7) MHP /i R torch hosepack
(8) WF 25i Robacta Drive
(9) MTB /i R robot welding torch
Maximum wirefeed length:
max. 6 m between wire drum and drive unit
(max. 8 m with PowerLiner)
Possible wire diameters:
0.8 - 1.2 mm
Welding process:
Standard, Pulse, LSC, PMC, PMC-MIX-DRIVE
IMPORTANT! Do not use a wire straightening section or guide roller in this con-
figuration.
* Use the largest inner liner (incl. basic kit)
** Use the inner liner corresponding to the wire diameter (incl. basic kit)
32
