Fronius Pull User Manual

PushPull with
wire buffer, 4-
roller unreeling
wirefeeder and
wirespool
(9)
(12)**
(10)*
(7)**
(8)
(1)
(2)
(7)*
(11)
(
(2
)
(3)
(4)
(5)
(6)

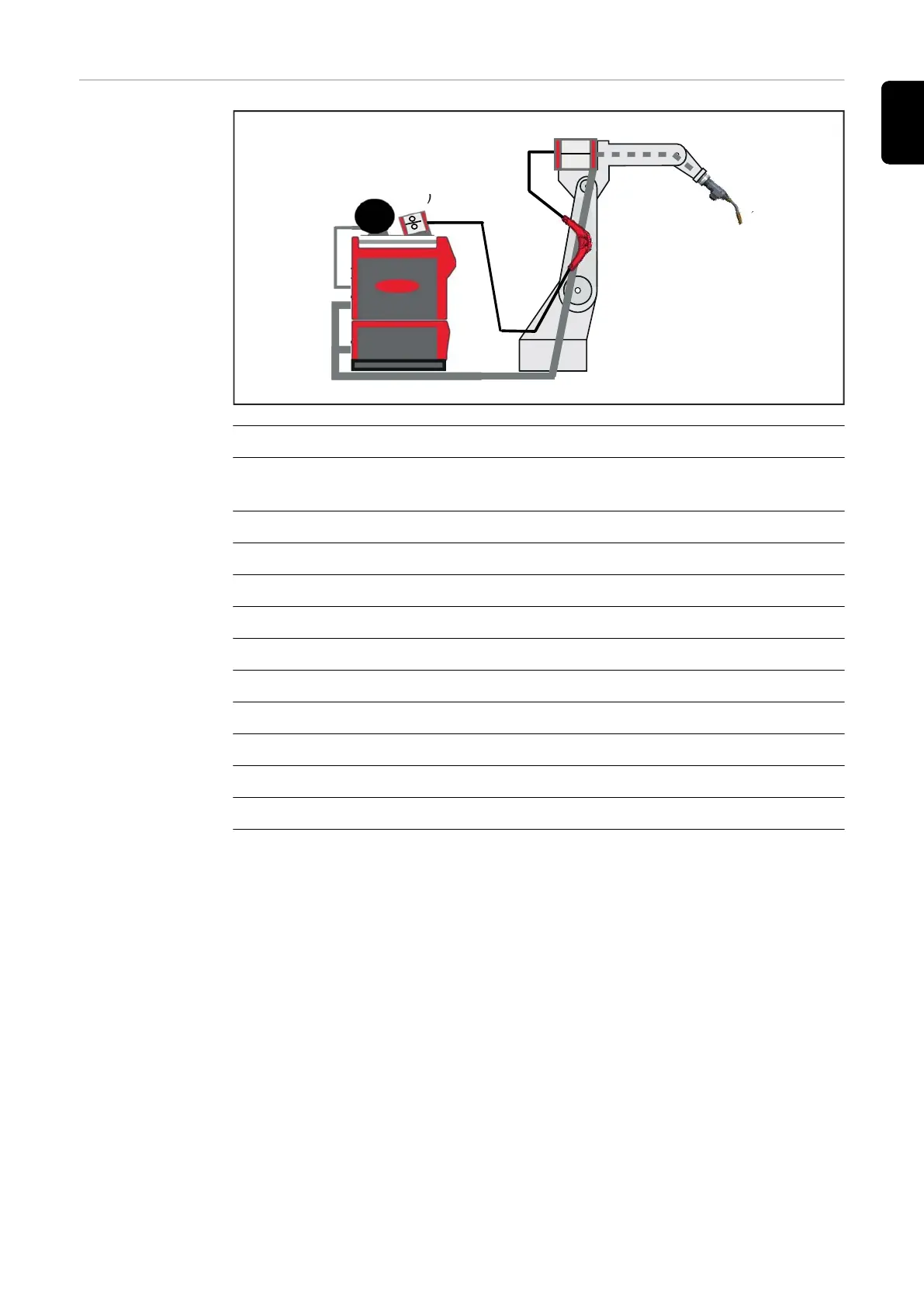

(1) SpeedNet cable COM
(2) Unreeling wirefeeder WF 25i REEL 4R
+ OPT/i WF Reel carriage D300
(3) TPSi power source
(4) CU cooling unit
(5) Upright console
(6) HP interconnecting hosepack
(7) Wirefeeding hose with inner liner
(8) Wire buffer
(9) SplitBox SB 500i R
(10) MHP /i R torch hosepack
(11) WF 25i Robacta Drive
(12) MTB /i R robot welding torch
Maximum wirefeed length:
-
max. 4 m between drive unit and wire buffer
-
max. 6 m between wire buffer and unreeling wirefeeder
Minimum length between wirefeeder and drive unit:
1 m
Possible wire diameters:
0.8 - 1.6 mm
Welding processes:
Standard, Pulse, LSC, PMC, PMC-MIX-DRIVE
* Use the largest inner liner (incl. basic kit)
** Use the inner liner corresponding to the wire diameter (incl. basic kit)
