Fronius Pull - Fitting the WF Robacta Drive to the Robot

Fitting the WF
Robacta Drive to
the robot

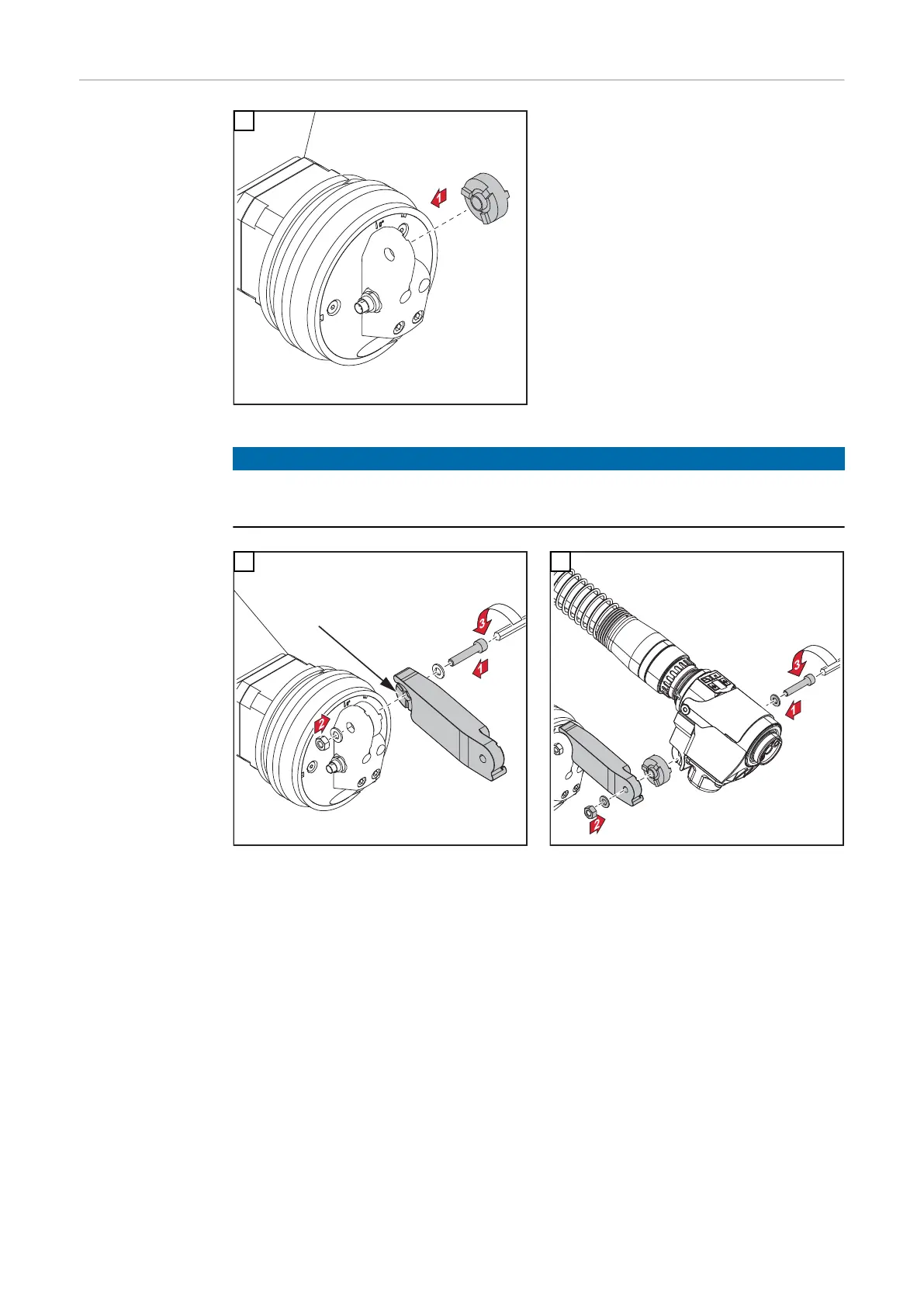

Mount the index disk 45° from the scope of delivery of the extension
1
NOTE!
CB (for CrashBox) is stamped on one side of the extension.
▶
This side must be fitted to the index disk that has already been fitted.
42 Nm
30.98 lb-ft
CB
Fit the extension to the index disc that has
already been fitted in such a way that the
stamped ‘CB’ on the extension points to the in-
dex disc!
2
42 Nm
30.98 lb-ft
3
94
