OPT/i camera mount
General

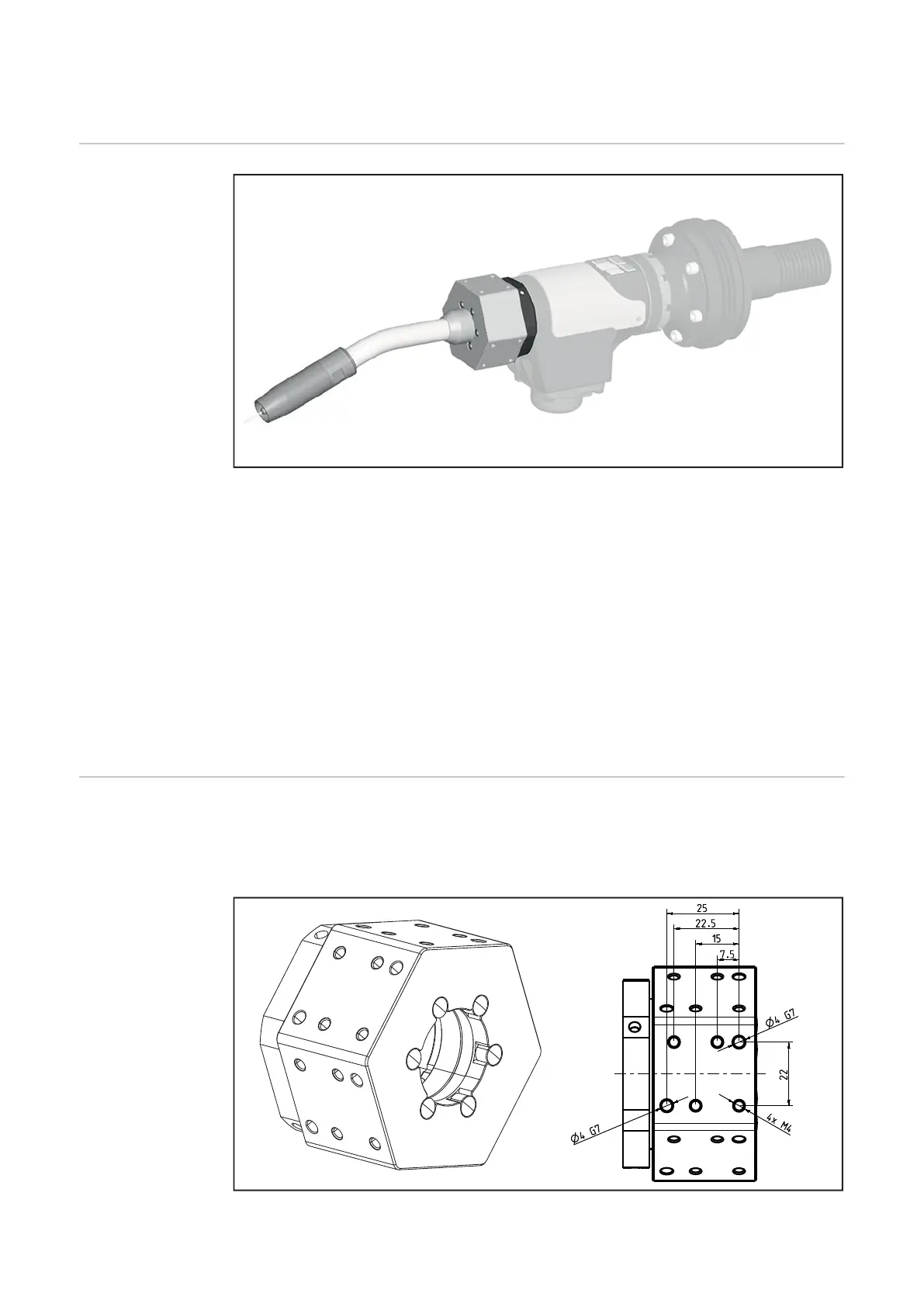

Application example of a mounted OPT/i camera mount (44,0350,0080)
The OPT/i camera mount can be used to mount seam tracking systems, cameras
or similar on the robot welding torch.
The camera mount is fitted instead of the torch body union nut; the TCP remains
the same.
The seam tracking system or camera is protected by the CrashBox.
The position of the mounted seam tracking system or camera is reproducible, as
it is positioned with a dowel pin.
Seam tracking system or camera can be mounted in six different places.
The scope of supply of the OPT/i camera mount includes a mounting key (size 60
mm).
Drilling template The following holes are provided as standard on the six surfaces of the OPT/i
camera mount:
-
4 M4 threaded holes with a depth of 9 mm
-
2 holes Ø 4 mm G7, depth = 6 mm
66
