Product Overview
42
Product Overview
3
Machine Components
This section describes the machine components and their functions.

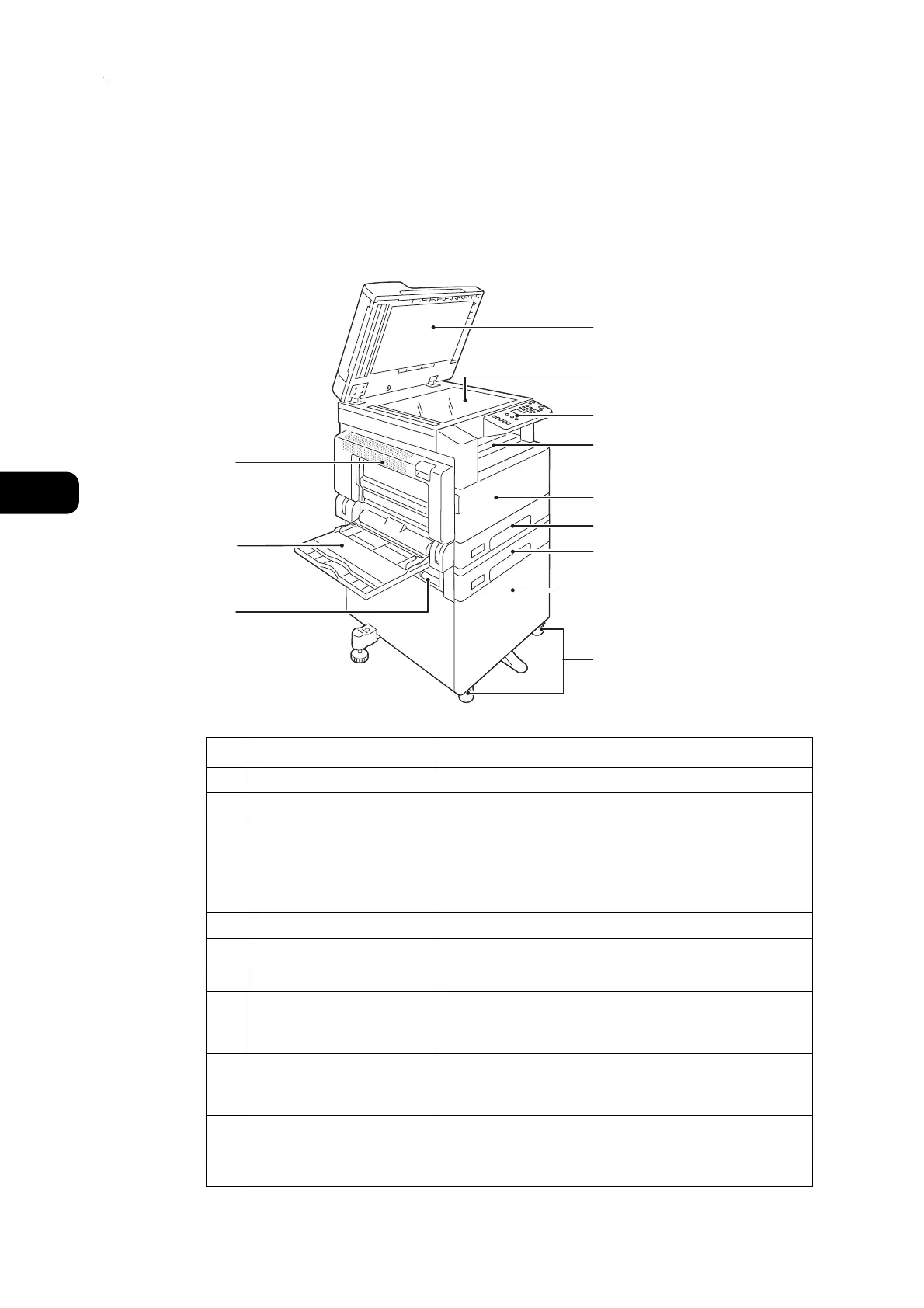

Front, Left Side
No. Component Description
1 Document cover Holds document in place.
2 Document glass Place document here.
3 Control panel Contains the buttons, LED indicators, and status machine
diagram used for operations.
z
For more information, refer to "Control Panel" (P.50).
4 Center tray Copies and prints are delivered here, facing down.
5 Front cover Open this cover to replace consumables.
6 Tray 1 (standard tray) Load paper here.
7Tray 2
(One Tray Module)
(Optional)
Optional tray. Load paper here.
8 Stand Mounts the machine on the floor. Contains storage space
for paper. This stand is available when the One Tray
Module is installed.
9 Locking casters Locks the wheels of the machine. Lock these casters after
moving the machine to its installation site.
10 One tray module cover [B] Open this cover to remove any jammed paper from Tray 2.
To Next Page
