Product Overview
54
Product Overview
3
Machine Status

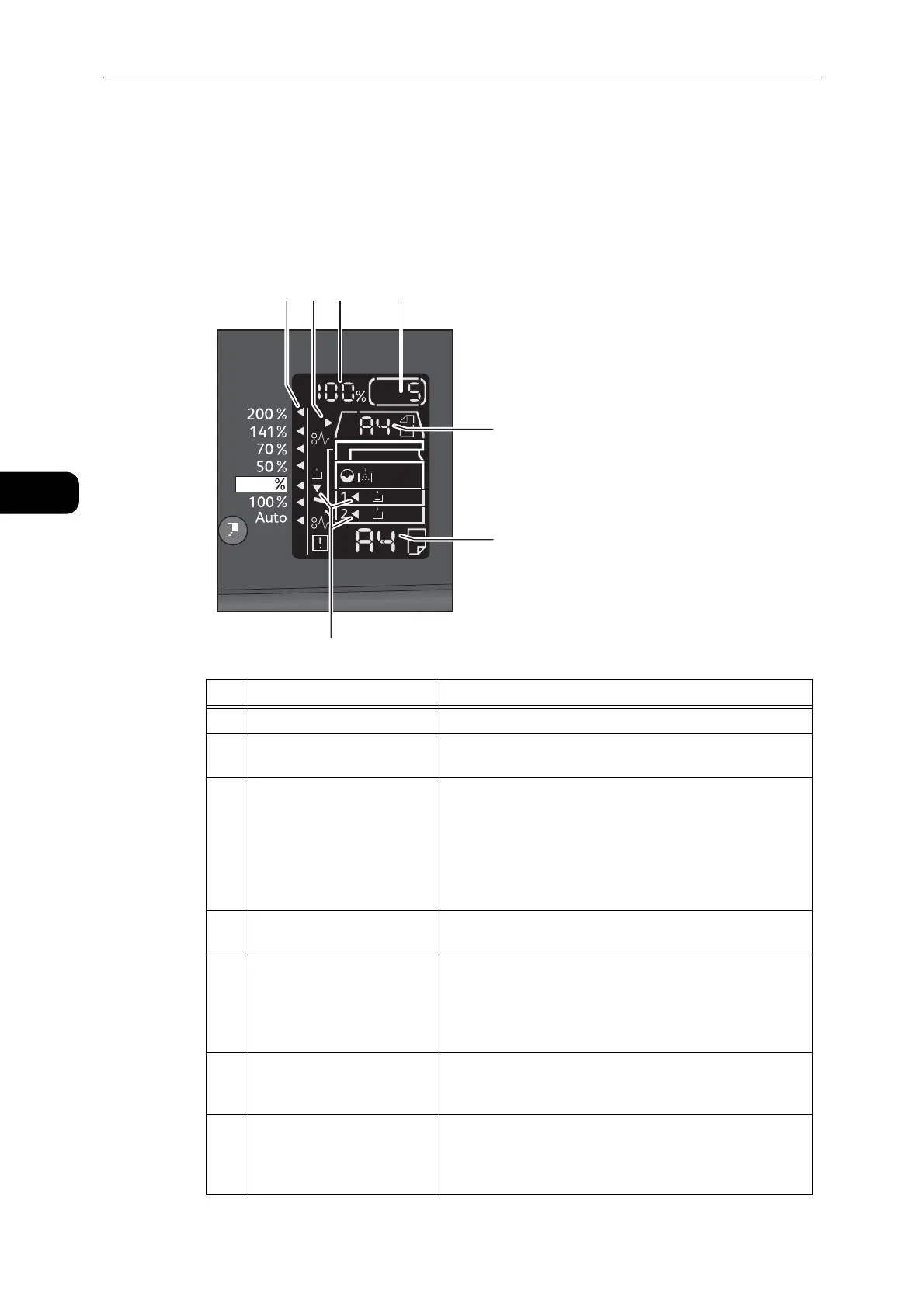

The Status Machine Diagram (mimic) consists of the following contents to display the
machine status.
This section provides detailed description of each indicator on the status machine diagram
(mimic).
No. Component Description
1 Reduce/Enlarge indicator Indicates the selected zoom ratio.
2 Document indicator This indicator is lit when a document is placed in the
document feeder or a document jam occurs.
3 Reduce/Enlarge display area Displays the specified zoom ratio within a range of 25 to
400%.
When the automatic detection is selected, [Aut] is
displayed.
Also displays the total number of copied pages, User ID/
System Administrator ID, program number, and job type
([Prt] for Print, [Scn] for Scan, and [Err] for Error).
4 Total Copy display area Displays the total number of copies.
Also displays a program number or an error code.
5 Original Size display area Displays the scanning size and orientation that are
specified with the <Original Size> button when the
document glass is used. When the document is placed in
the document feeder, the automatic detection is
automatically set and [Aut] is displayed.
6 Paper Size display area Displays the size and the orientation of the paper loaded in
the selected tray. When the automatic detection is selected
for the selected tray, [Aut] is displayed.
7 Tray indicators Indicates the selected tray.
When the automatic detection is set for the selected tray,
all tray indicators are lit.
Also indicates the tray where the paper jam occurred.
