Machine Components
45
Product Overview
3
Duplex Automatic Document Feeder
z

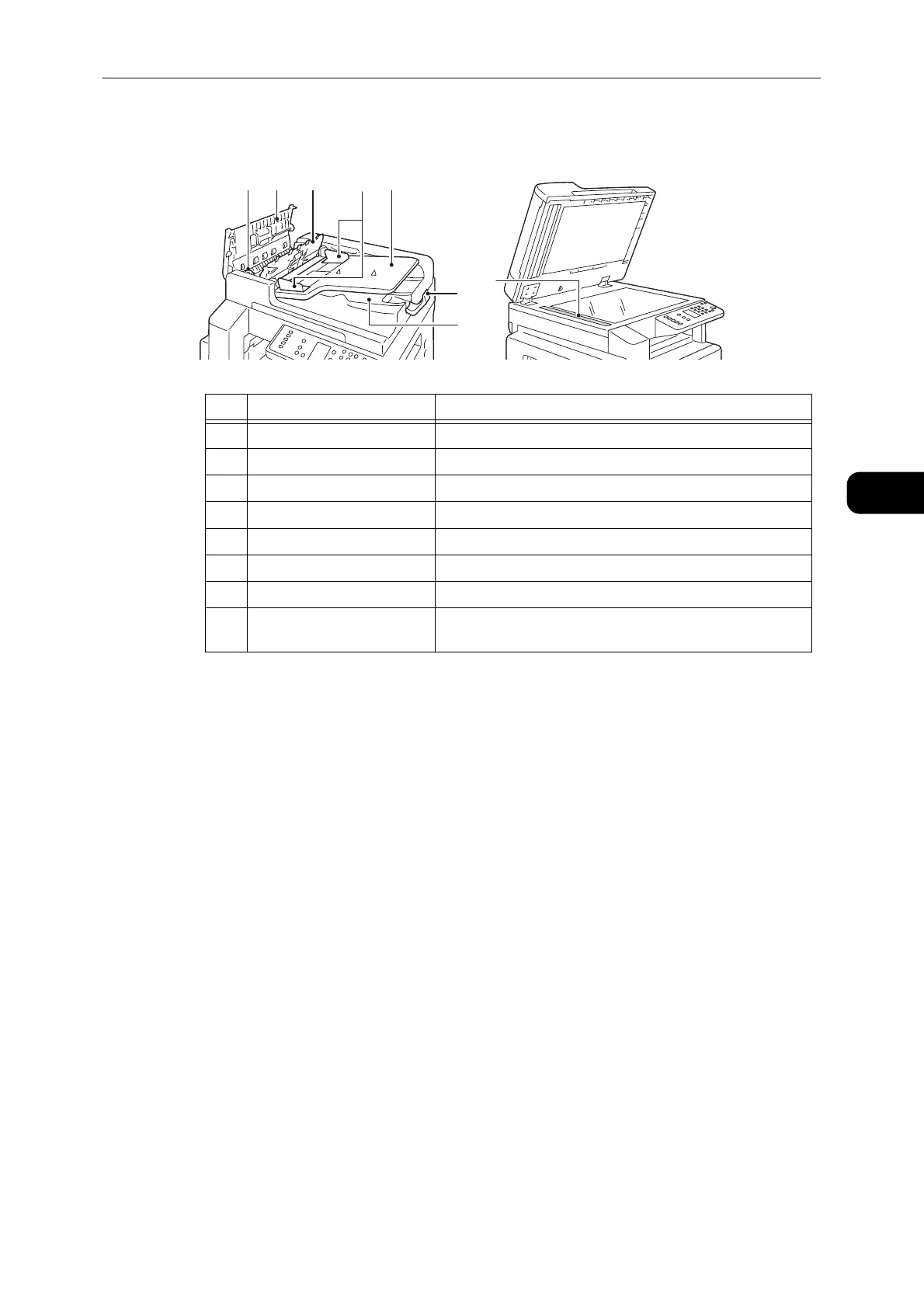

In this guide, the duplex automatic document feeder is referred to as the "document feeder".
No. Component Description
1 Lever Turn this lever to clear paper jams.
2 Document feeder cover Open this cover to clear paper jams.
3 Inner cover Open this cover to clear paper jams.
4 Document guides Use these guides to align the edges of documents.
5 Document feeder tray Load documents here.
6 Document stopper Prevents outputs from falling off.
7 Document output tray Scanned documents are delivered here.
8 Constant velocity transport
glass
Scans a loaded document.
