1.4 Screen Layout

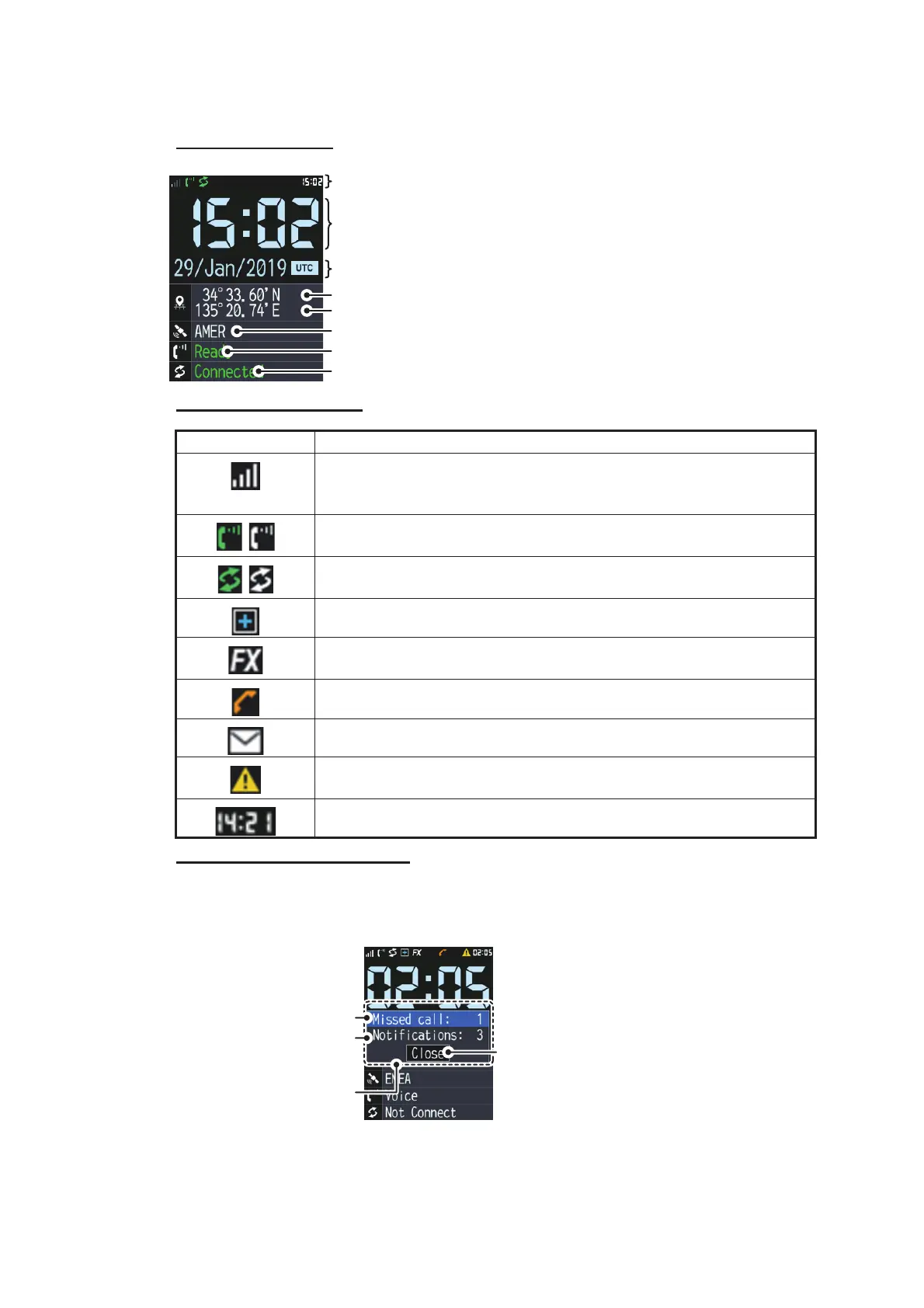

IP Handset Screen
Status bar indications
Notification pop-up window
The pop-up window appears when an call is missed, or when an unread event exists.
The number of missed calls/unread events appears with each indication.
Once closed, this window does not appear again until a new missed call or event oc-
curs.
Icon Definition
Shows the strength of the reception signal with up to four bars. Four
bars indicates a strong signal. If there is no signal bar, communica-
tion is not possible.
Green: Voice is ready.
White: Voice is not ready.
Green: Data transmission is ready. (Requires data connection.)
White: Data transmission is not ready.
Appears when this handset is assigned as a Safety Voice handset.
FX mode: Shows when FX mode is active.
See “Important Notices” at the start of this manual for more details.
Missed call: Appears when incoming call is missed.
New Message: Shows when a new SMS message arrives.
Shows when there is an unacknowledged event.
The buzzer sounds when this icon appears.
Shows the current UTC or local time.
*1: Processing
Ready
Voice (Voice line in use)
Fax (Fax in use)
ISDN (ISDN in use)
Status bar
Satellite in use
Voice status
*1
Data status
*2
Time
*2: Not connected
Connected
Processing
No permission
(Data transmission not permitted)
Ship latitude
Ship longitude
Date (UTC or local)
Press ▼ to select [Close], and
press the Enter key to close
the pop-up window.
Missed calls (unchecked)
Unread events
Notification pop-up window
To Next Page
