This setting will sound an alarm when the EXT-voltage drops dangerously low. VIB (vibration) that
vibrates the transmitter at the same time can also be set.
Method
① Select "EXT-VOLT" from the
telemetry screen with the Jog key.
② Open the setting screen by
pressing the Jog key.
① In the EXT-VOLT screen state, select
(ALARM) from the menu with the
Jog key.
② Select the "ACT" by pressing
the + key or – key.
① In the EXT-VOLT screen state,
select (LIMIT) from the menu with
the Jog key.
② Select the voltage by
pressing the + key or –
key.
Selection range：
0.0V ～ 70.0V
● When you want to set 5.0V, press the
+ key and – key simultaneously.
① In the EXT-VOLT screen state, select
(VIB) from the menu with the Jog
key.
② Select the "TYP1 ～ TYP3" by
pressing the + key or – key.
Calling the setting screen
Alarm set
Alarm voltage set
Vibration set

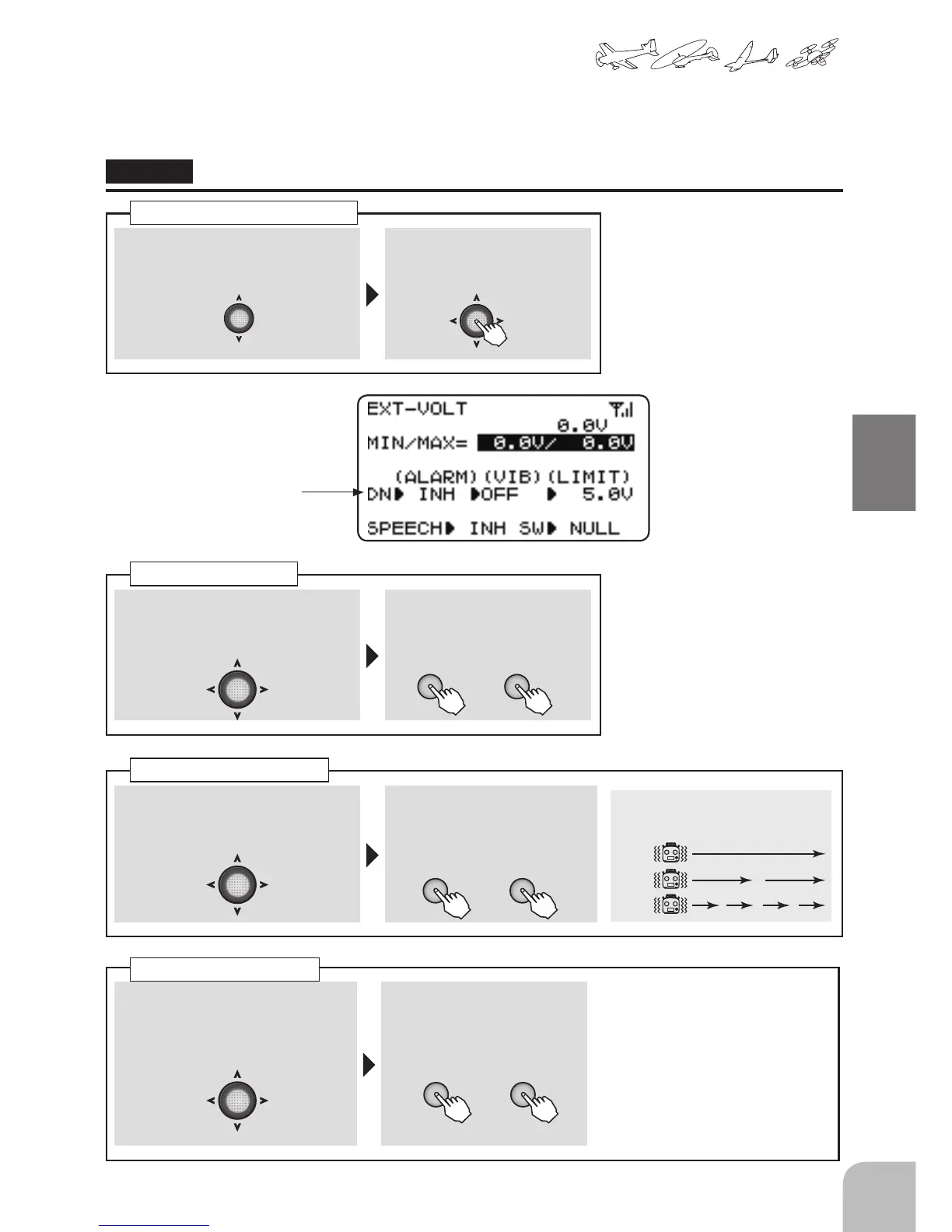

● EXT-Voltage alarm set up
＋ －
or
＋ －
or
＋ －
or
TYPE 1
TYPE 2
TYPE 3
"VIB" types
If the following types are selected, the
transmitter will vibrate during the warning.
DN (down) shows than an
alarm is generated when
the voltage drops below
the set voltage.
To Next Page
