140 G-TECH / Pro Competition User Guide, Release 3.1

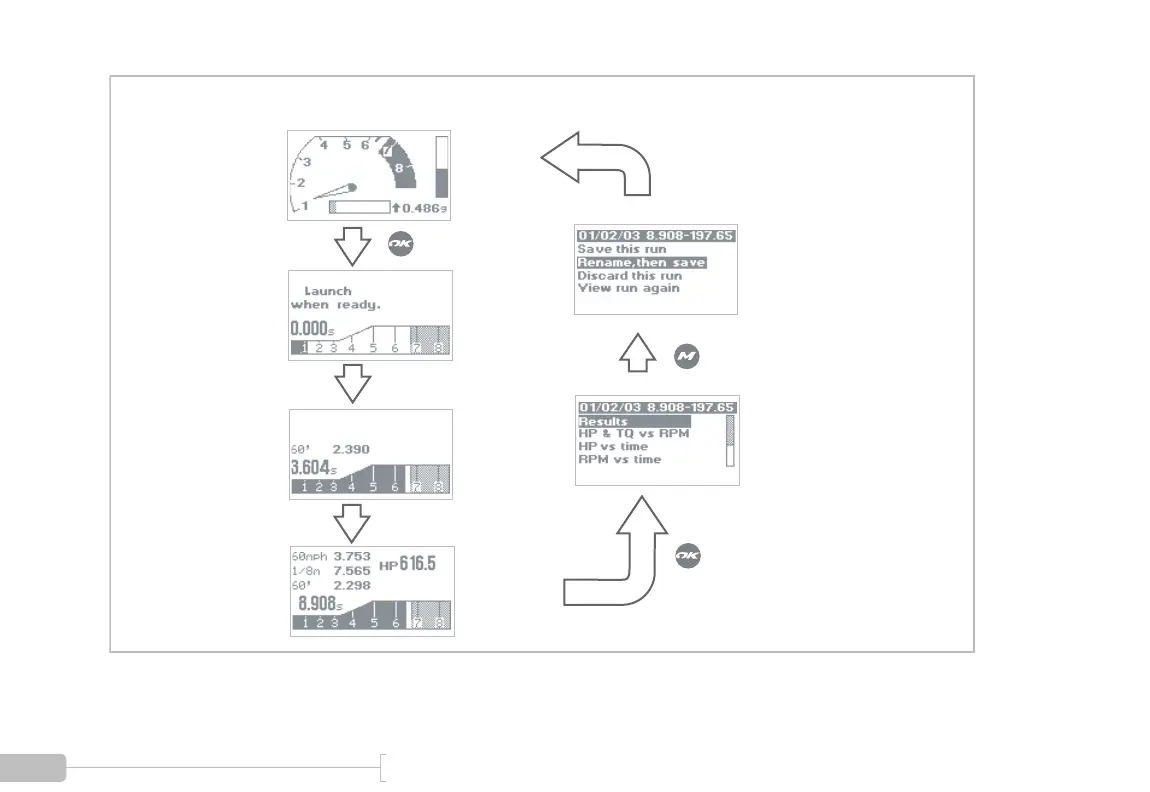

Figure 45: Performing an Acceleration Run

Performing an Acceleration Run

Return to Drag

Strip Mode

G-Window

Save (p. 58)

Rename (p. 60)

Discard (p. 57)

Analyze Run

(p. 68)

Finish Run (p. 58)

Start Accelerating
