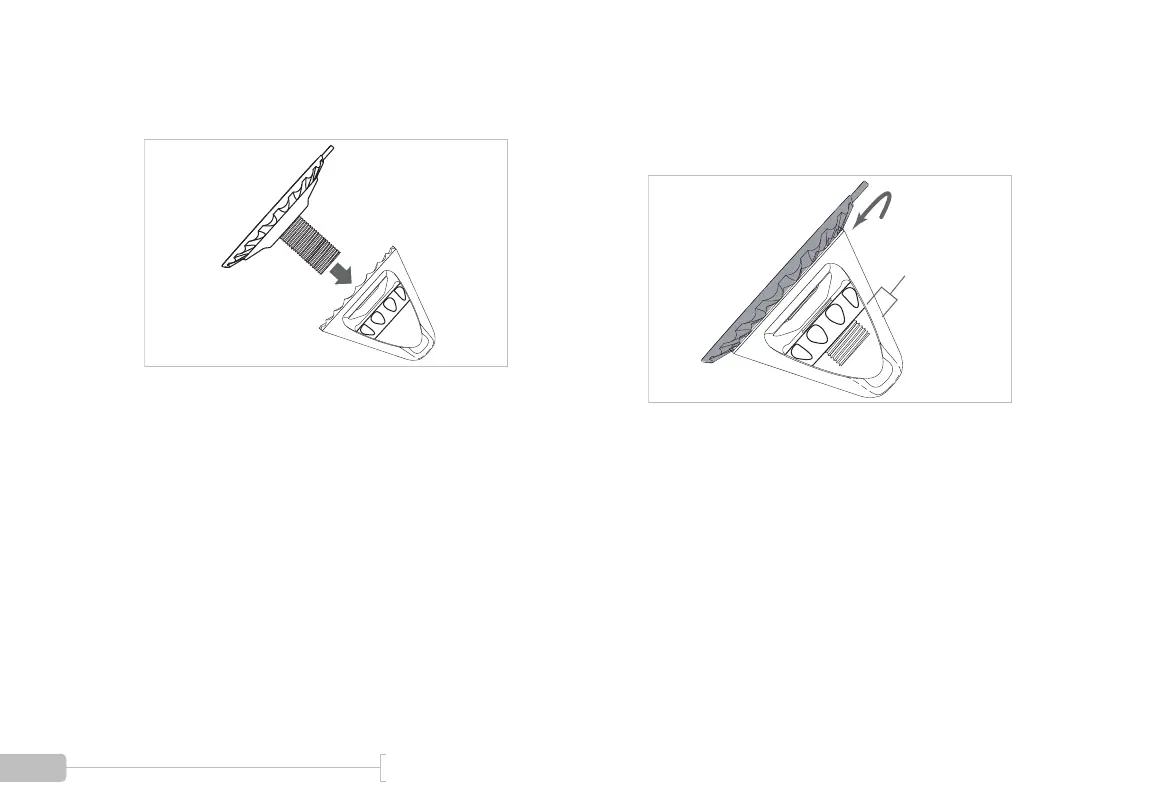

Insert the suction cup into the mounting bracket.

Turn the suction cup clockwise into the Large Vac-

uum Nut until approximately 1/4 inch of threads

protrude.

1/4"
