Gap Diagnostic IIDTool - Page 136

136
IIDTool
GAP Diagnostic 2019-07-15 All Rights Reserved
User Manual : Version 33, Firmware V3.0

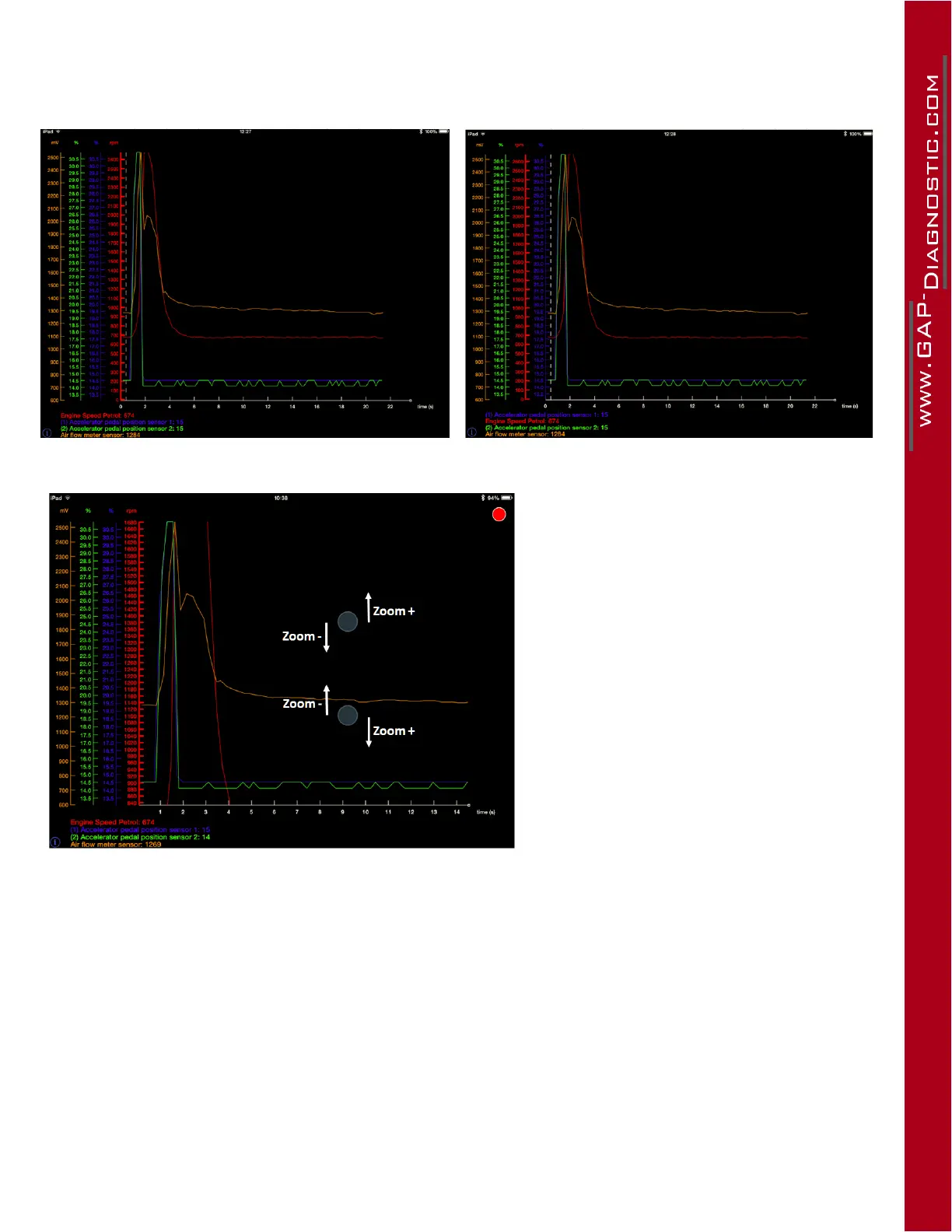

User can interchange any Y axis position. Press and hold on the desired axis and move it to the new
position.
Figure 64. App : LV : Y axis displacement
Vertical zooming is done on each Y axis
separately.
• SelectthedesiredYaxis/livevalue
• Touch and hold anywhere in the
screenwith2ngersandswipeverti-
cally in opposite directions.
Figure 65. App : LV : Vertical zooming
