164

IIDTool

User Manual : Version 33, Firmware V3.0

Note: IIDTool Pro and BT , go to point 2

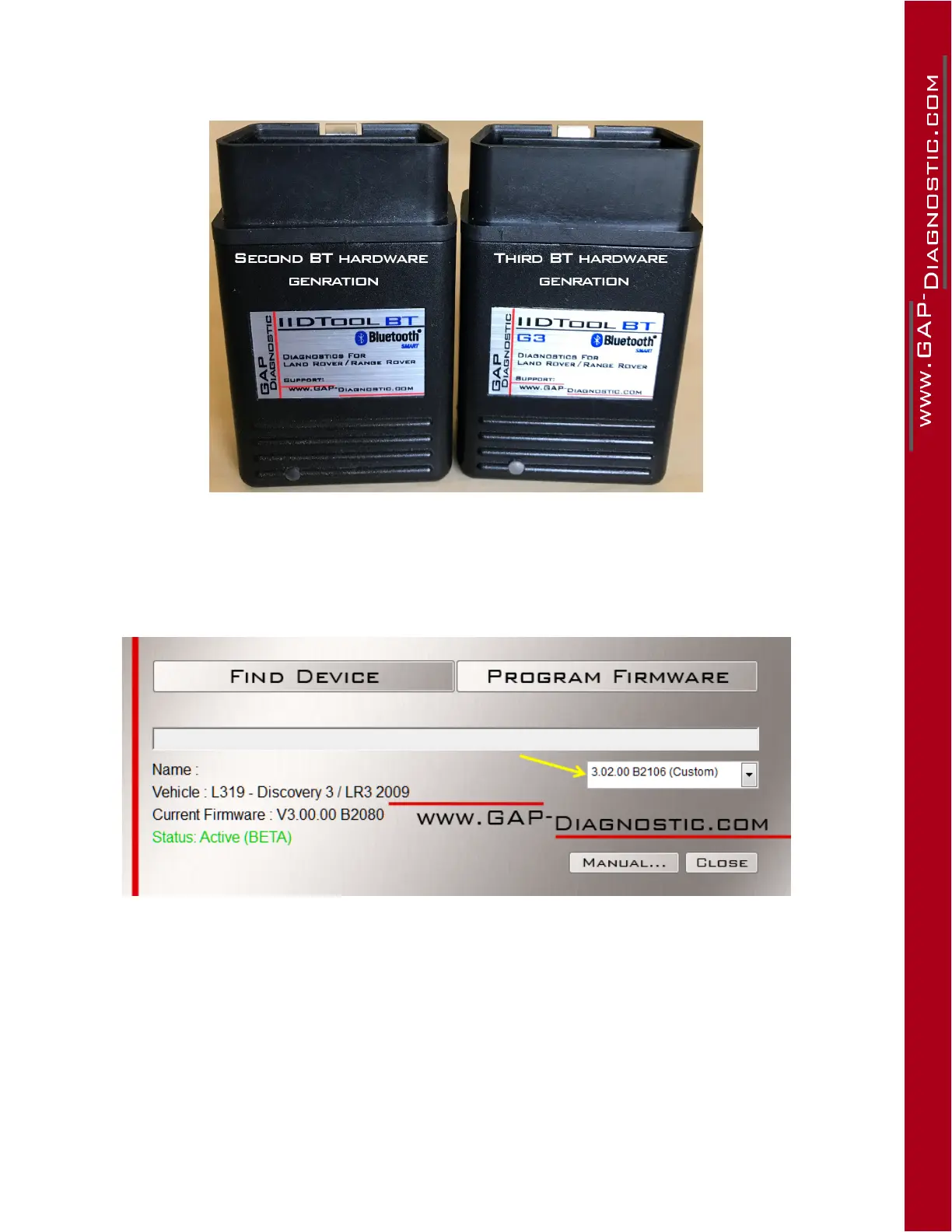

Figure 99. IIDTool BT generations

1. OnceBellAutoServiceshasgivenyouaccesstothecustomPCMBackuprmware,proceed

with updating your IIDTool to the “custom”rmware.See section 2.5.

Figure 100. BTandregular,updatingtheIIDToolwitha“Custom”rmware.
