GE AMX 4+ Technical Manual

 
         
   
7-9
5. Carefully remove spring between base assembly and spring pin on motor mount
plate. See Illustration 7-9.
6. Remove nut and bolt holding motor mount to base.
7. Remove drive belt from motor pulley.
8. Remove motor and brake assembly.
9. Remove capscrews and washers holding motor to motor mount plate.
10. Remove binding head screws attaching brake to motor.

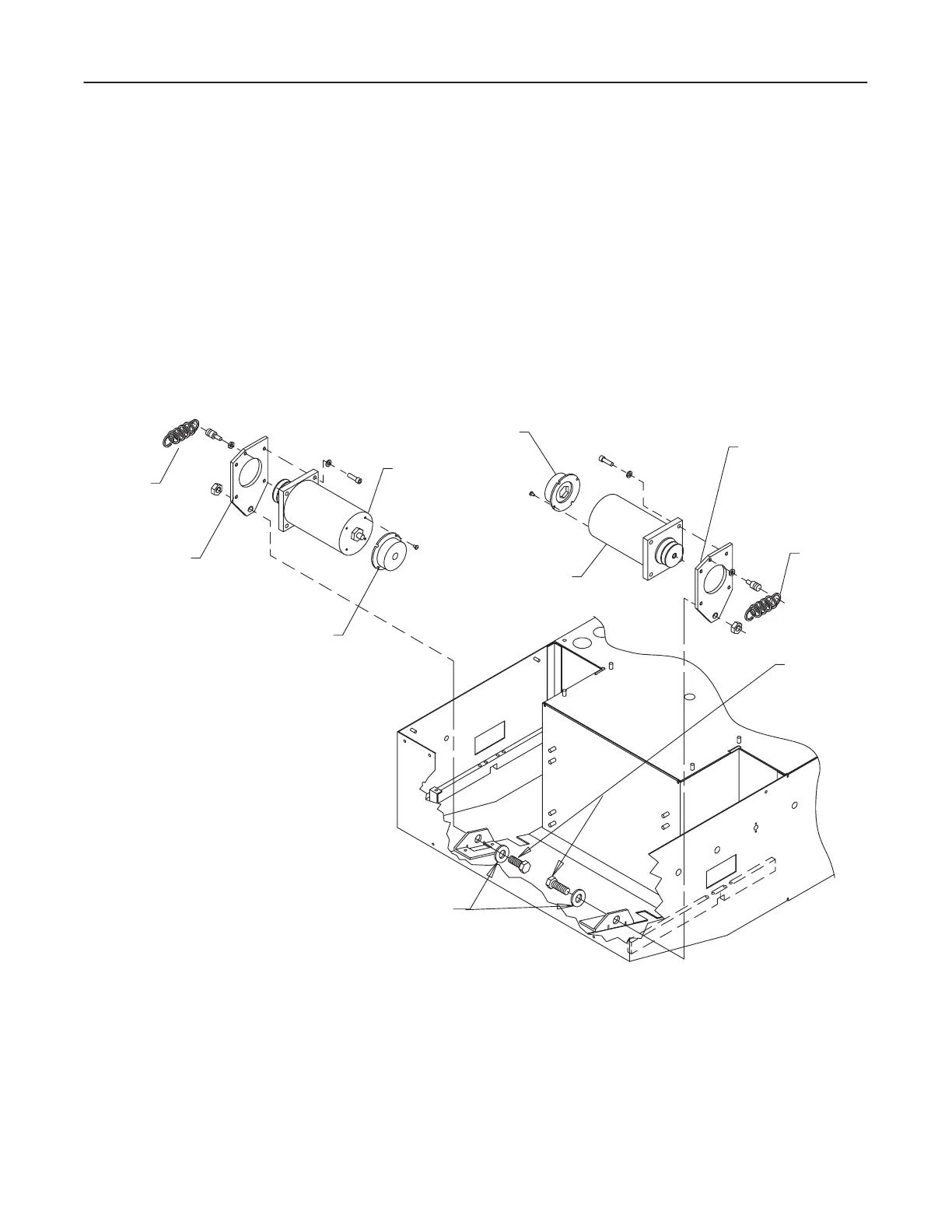

ILLUSTRATION 7-9
   
MOTOR
MOUNT
BOLTS
BRAKE
DRIVE MOTOR
MOTOR MOUNT
NOTCH ON
THIS SIDE
SPRING
BRAKE
DRIVE MOTOR
MOTOR MOUNT
NOTCH ON
THIS SIDE
SPRING
WASHERS

GE AMX 4+ Specifications

General

Type	Mobile X-ray System
Maximum kVp	125 kVp
Collimator	Manual Collimator
Battery	Rechargeable, lead-acid
Image Receptor Compatibility	CR and DR systems
Focal Spot Size	1.2 mm
mAs Range	0.04 - 320 mAs
X-ray Tube	Rotating Anode
