REV 5 DIRECTION 2173225-100
2-1
This section provides procedures covering the removal and installation of the x-ray
tube.
7 5 2 # #*,3)
.2'-*#+1 *%#
#!2/# 1&# &,/'6,+1) /* #$,/# /#*,3'+% !,*-,+#+10 $/,* 1&# /*
#*,3'+% 4#'%&1 )),40 1&# !,2+1#/4#'%&1 1, "#0!#+" /-'")5 +" 1&# /* 1,
0!#+" /-'")5 -,00' )5 !20'+% "*%# 1, 1&# 2+'1 +" -#/0,+) '+(2/5 0#
1&# ,2+1#/4#'%&1 '$1 ,,)
1. Remove collimator from x-ray tube. Refer to Section 1-1, steps 1 through 10
for removal instructions.
2. Disconnect anode and cathode High Voltage cable connectors from x-ray tube.
See Illustration 2-1.

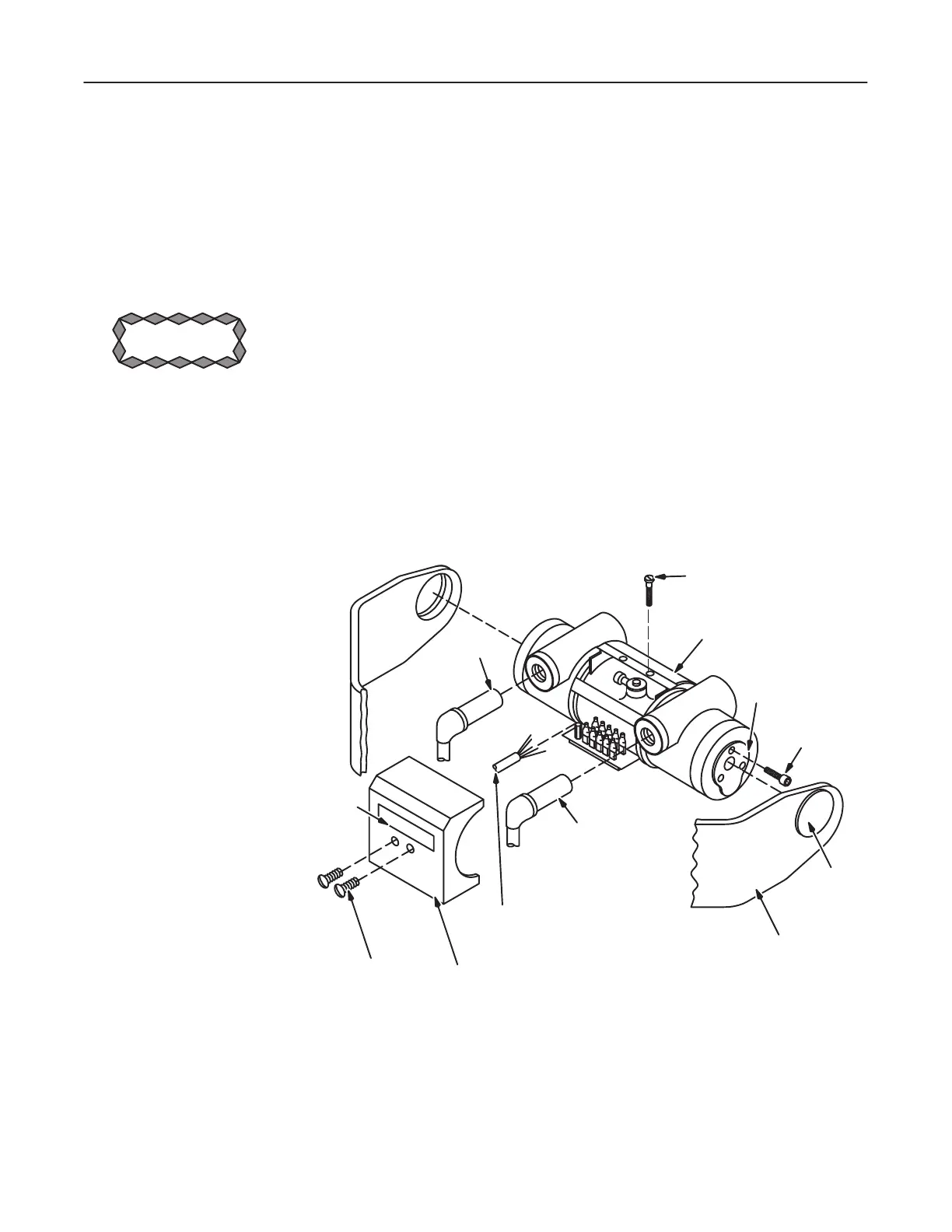

ILLUSTRATION 2-1
DECAL
TUBE FRONT COVER
CONTROL CABLE
RATING
PLATE
TUBE REAR COVER
YOKE ASSEMBLY
HV CABLE
(CATHODE)
HV CABLE
MOUNTING
PLATE
HEX SOCKET
FLAT HEAD
SCREWS
BUTTON HEAD SCREW
10-32 X 1/2
HEAD SCREW (2)
(ANODE)
