GE AMX 4+ Technical Manual

 
         
   
10-14
 Vertical Column Brake Cable
1. The vertical column brake cable exits the side of the vertical column assembly and
is routed to a channel on the rear of the column. See Illustration 10-18.

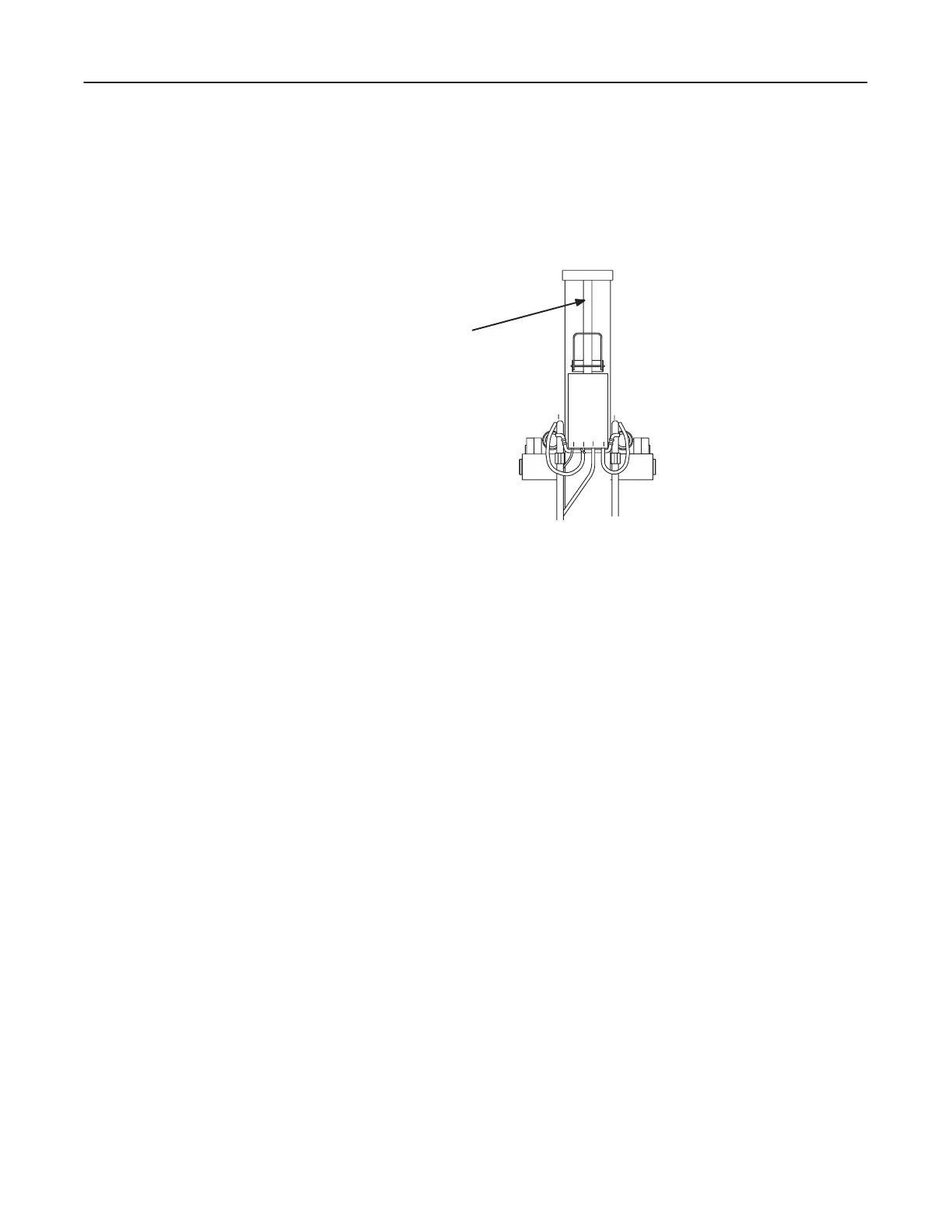

ILLUSTRATION 10-18
     
 
  
 
2. The brake cable enters the channel at the top of the vertical column assembly and
continues down into the top of the terminal box and is connected to the terminal
strip AMX3 A1 TS1. See Illustration 10-12 and Table 10-1.

GE AMX 4+ Specifications

General

Type	Mobile X-ray System
Maximum kVp	125 kVp
Collimator	Manual Collimator
Battery	Rechargeable, lead-acid
Image Receptor Compatibility	CR and DR systems
Focal Spot Size	1.2 mm
mAs Range	0.04 - 320 mAs
X-ray Tube	Rotating Anode
