GE AMX 4+ Technical Manual

 
         
   
4-20

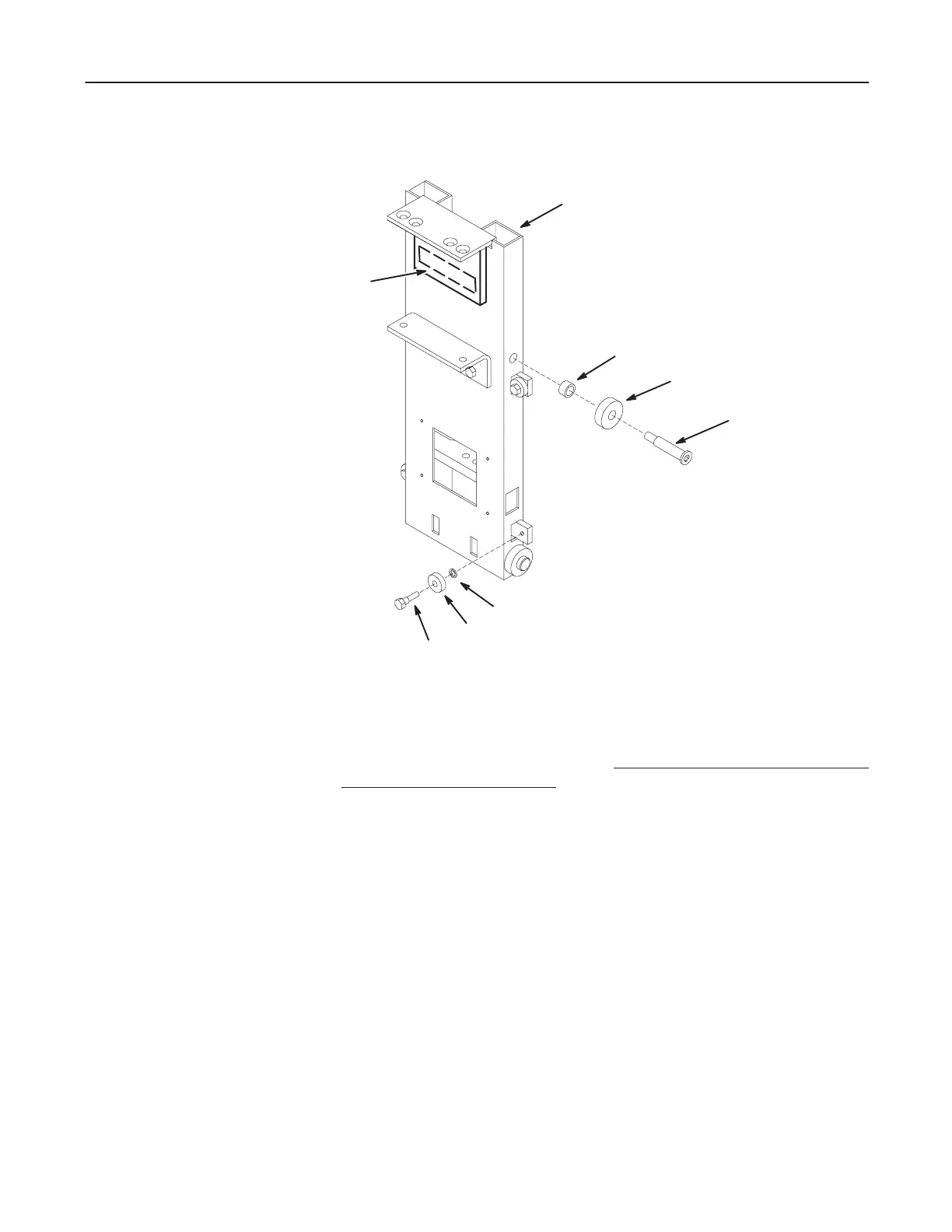

ILLUSTRATION 4-11
 
 




 
 



 Install Carriage Bearings
1. Lubricate bearings if necessary.
2. Attach four forward facing bearings to carriage mounting flanges with hex head
shoulder bolts. See Illustration 4-11. Apply Loctite and torque to 40-60
pound-inches (4.5 to 6.7 N-m)
3. Install side facing bearings at mounting locations on each side of carriage with
shoulder bolts.
4. Install carriage assembly in vertical column assembly. Refer to Section 4-14.

GE AMX 4+ Specifications

General

Type	Mobile X-ray System
Maximum kVp	125 kVp
Collimator	Manual Collimator
Battery	Rechargeable, lead-acid
Image Receptor Compatibility	CR and DR systems
Focal Spot Size	1.2 mm
mAs Range	0.04 - 320 mAs
X-ray Tube	Rotating Anode
