GE AMX 4+ Technical Manual

 
         
REV 5 DIRECTION 2173225-100
3-3
"   
!  
1. Remove collimator. Refer to Section 1.
2. Remove the x-ray tube. Refer to Section 2.
Right Mounting Plate Assembly
3. Remove decal from cover on end of right tube support to access the cover mountĆ
ing screws.
4. Remove four screws holding cover to mounting plate shaft.
5. Remove cover, two spring washers, two thrust washers and thrust bearing from
mounting plate shaft.
6. Slide shaft, disk, and mounting plate from right tube support.
7. Remove two small bearings and their shaft from right tube support.
8. Remove four screws holding shaft and disk to mounting plate.
9. Remove shaft and disk from mounting plate.

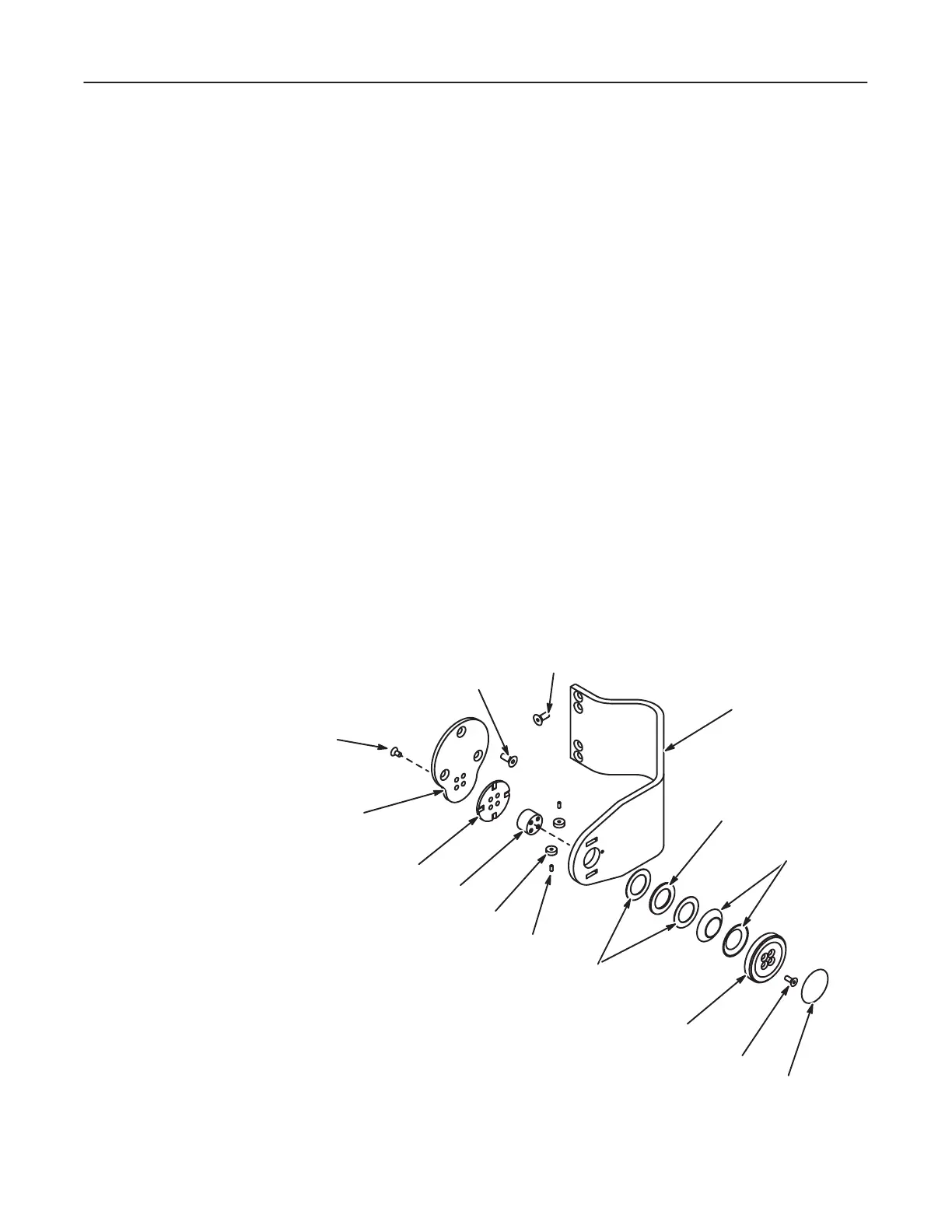

ILLUSTRATION 3-2
   
1/4-20 X .625 HEX SOCKET FLAT
HEAD CAPSCREW
MOUNTING PLATE
COVER
BEARING
DECAL
SHAFT
DISK
MOUNTING PLATE SHAFT
THRUST BEARING
THRUST WASHER
SPRING WASHER
RIGHT TUBE SUPPORT
1/4-20 X .5 HEX SOCKET FLAT
HEAD CAPSCREW
10-32 X .500 HEX SOCKET
FLAT HEAD CAPSCREW
10-32 X .500 HEX SOCKET
FLAT HEAD CAPSCREW

GE AMX 4+ Specifications

General

Type	Mobile X-ray System
Maximum kVp	125 kVp
Collimator	Manual Collimator
Battery	Rechargeable, lead-acid
Image Receptor Compatibility	CR and DR systems
Focal Spot Size	1.2 mm
mAs Range	0.04 - 320 mAs
X-ray Tube	Rotating Anode
