GE AMX 4+ Technical Manual

 
         
REV 5 DIRECTION 2173225-100
3-4
Left Mounting Plate Assembly
10. Remove decal from cover on end of left tube support to access the cover mountĆ
ing screws.
11. Remove four screws holding cover to mounting plate shaft.
12. Remove two spring washers, disk and thrust washer from mounting plate shaft.
13. Slide shaft, thrust washer, dowel pin, disk, and mounting plate from left tube supĆ
port.
14. Remove thrust washer and dowel pin from shaft.
15. Remove four screws holding shaft and disk to mounting plate.
16. Remove shaft and disk from mounting plate.
17. Remove eight hex socket flat head capscrews holding right and left tube support
arms to mounting plate.
18. Remove tube supports.

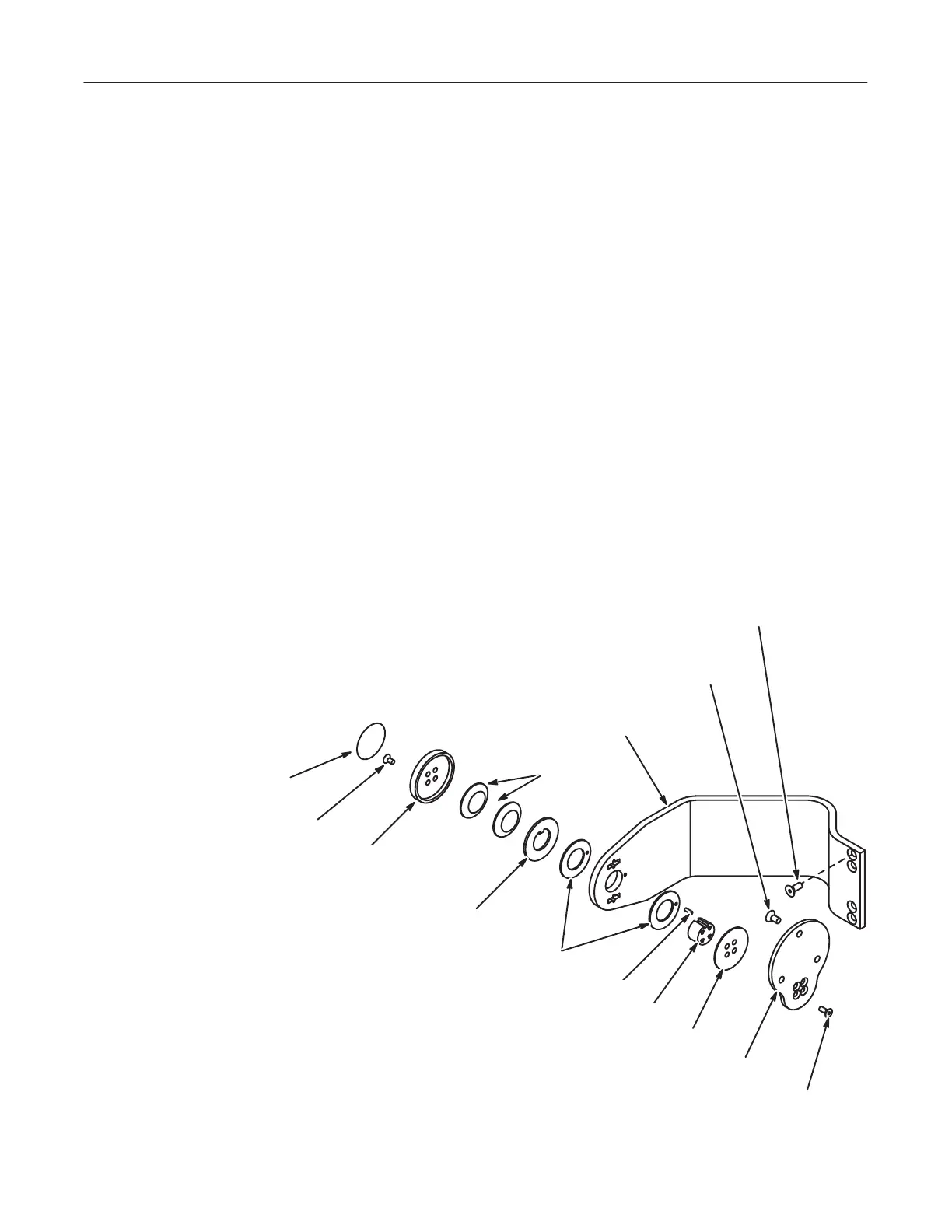

ILLUSTRATION 3-3
   
1/4-20 X .625 HEX SOCKET
FLAT HEAD CAPSCREW
MOUNTING PLATE
COVER
DECAL
SHAFT
DISK
SPRING
WASHER
LEFT TUBE SUPPORT
1/4-20 X .500 HEX SOCKET FLAT
HEAD CAPSCREW
10-32 X .500 HEX SOCKET
FLAT HEAD CAPSCREW
10-32 X .500 HEX SOCKET
FLAT HEAD CAPSCREW
THRUST WASHER
DOWEL PIN
DISC

GE AMX 4+ Specifications

General

Type	Mobile X-ray System
Maximum kVp	125 kVp
Collimator	Manual Collimator
Battery	Rechargeable, lead-acid
Image Receptor Compatibility	CR and DR systems
Focal Spot Size	1.2 mm
mAs Range	0.04 - 320 mAs
X-ray Tube	Rotating Anode
