GE AMX 4+ Technical Manual

 
         
REV 5 DIRECTION 2173225-100
5-5
( !% $ ##'   !"!  $#  $ &$
1. Move horizontal arm out of the way.
2. Shut power off by turning circuit breaker OFF.
3. Open top cover. Refer to Section 5-5.
!$ If you need more access to terminal strip, you may remove four hex nuts atĆ
taching low voltage power supply to mainframe and slide power supply backĆ
ward out of mainframe housing. See Illustration 5-4.

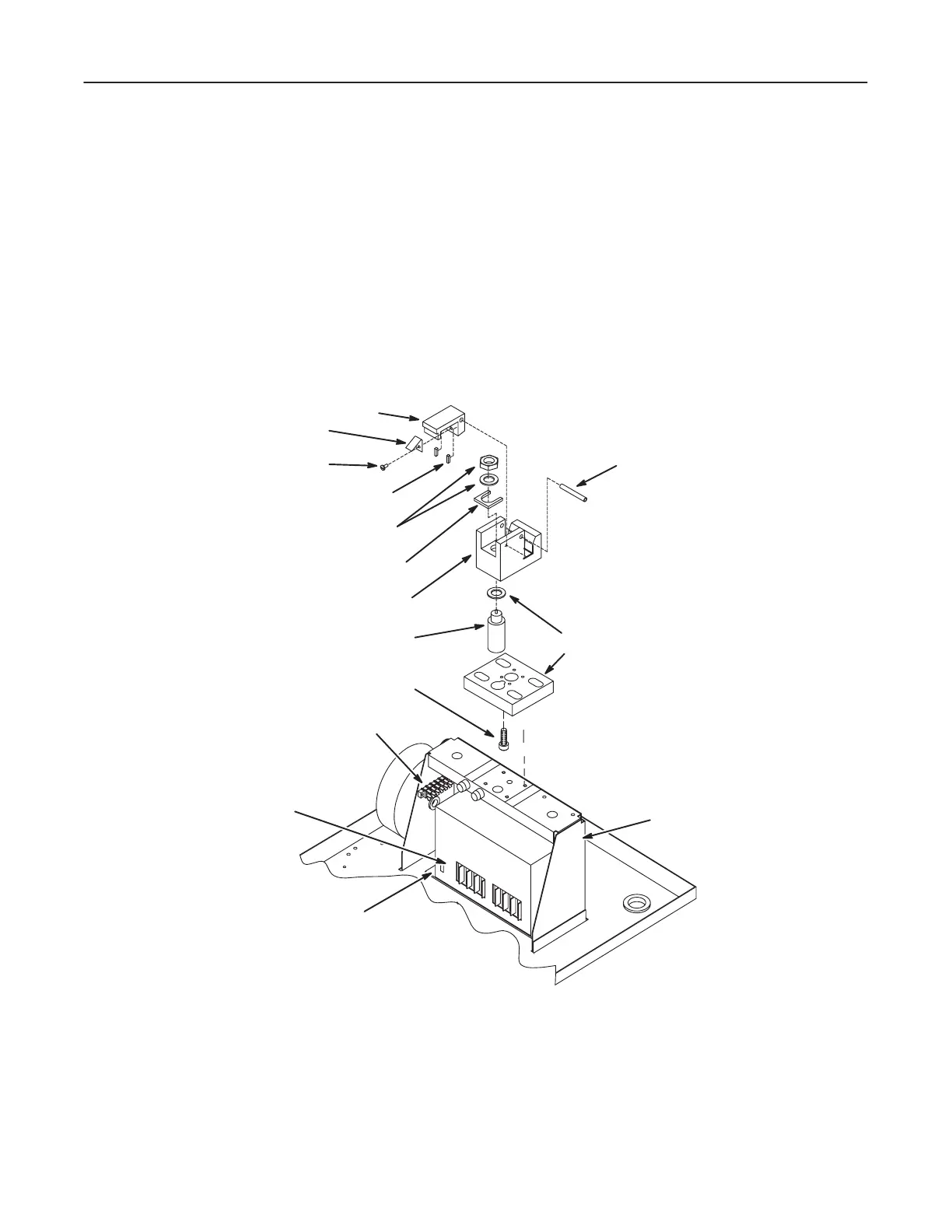

ILLUSTRATION 5-4
     
BINDING HEAD
SCREW
LATCH SPRING
SOLENOID
LOW
VOLTAGE SUPPLY
SPRING PIN
SPACER
MAINFRAME
HEX NUT
(4)HEX SOCKET
CAPSCREWS
LATCH
TERMINAL STRIP
(2) BUMPER
LATCH BLOCK
BUMPER
FURNISHED WITH
SOLENOID

GE AMX 4+ Specifications

General

Type	Mobile X-ray System
Maximum kVp	125 kVp
Collimator	Manual Collimator
Battery	Rechargeable, lead-acid
Image Receptor Compatibility	CR and DR systems
Focal Spot Size	1.2 mm
mAs Range	0.04 - 320 mAs
X-ray Tube	Rotating Anode
