10-1
This section covers the removal and installation of the main power cord reel, and the
horizontal arm/vertical column cable routing.
!
!! Cord Reel Removal (Domestic Models)
1. Shut power off by turning circuit breaker OFF.
2. Open top cover. Refer to Section 5-5.
3. Remove four hex nuts attaching low voltage power supply to mainframe and slide
it backward out of mainframe housing. See Illustration 10-1.
4. Disconnect cord reel leads from F1, F2 and ground stud.
5. Remove two internal hex cap screws retaining grommet in cut-out in mainframe
and remove cable and grommet.
6. Remove two hex washer head screws and lock nuts holding cord reel to side of
low voltage power supply housing.
7. Lift off cord reel pulling leads through grommet in low voltage power supply
housing.

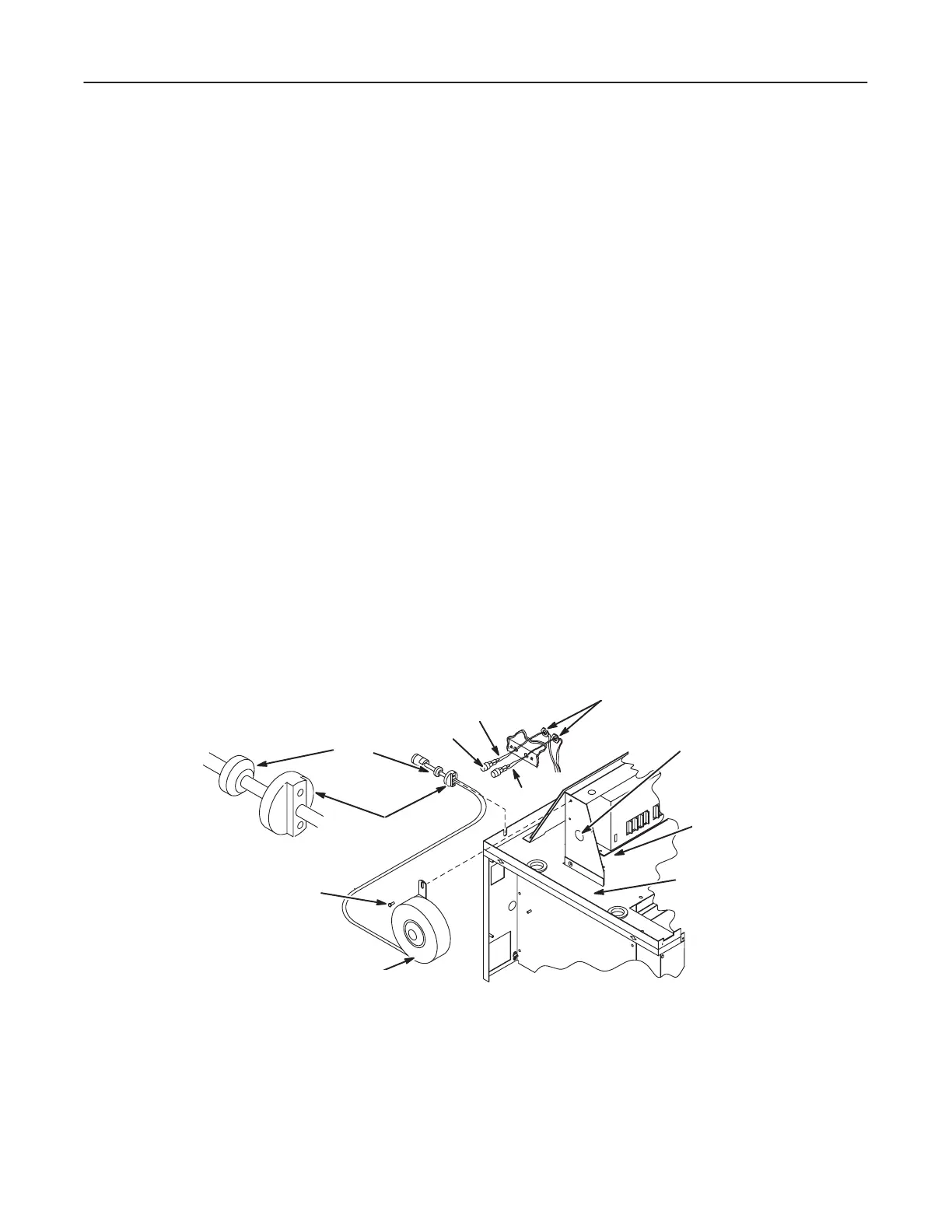

ILLUSTRATION 10-1
