** Remove Counterweight
1. Remove vertical column. Refer to Section 4-1.
2. Remove the main, safety and follower cables. Refer to Section 4-3.
3. Remove upper pulley and brake assembly. Refer to Section 4Ć4.
4. Slide counterweight from vertical column.
5. Remove top cable retainer clip from counterweight assembly by removing two
slotted hex washer head screws. See Illustration 4-9.

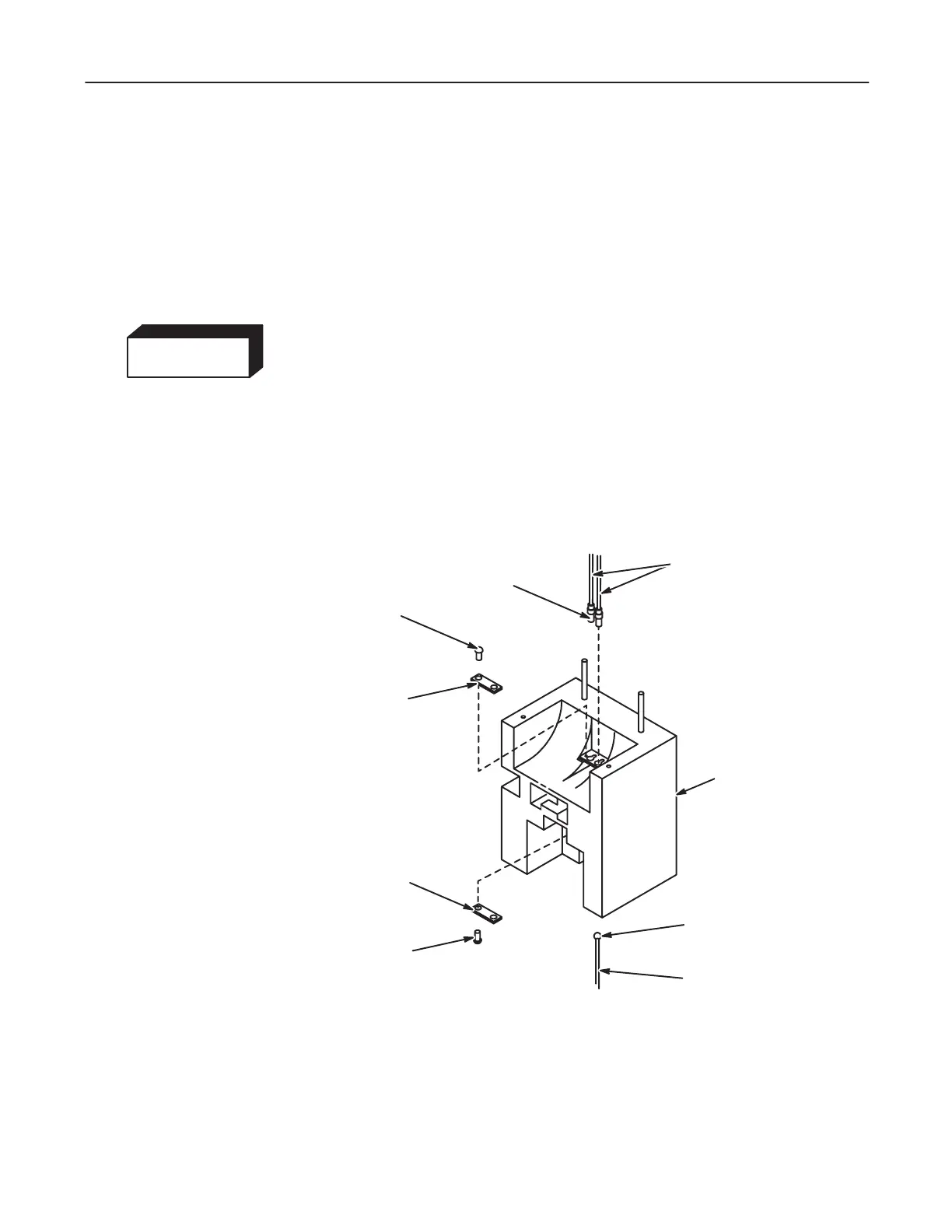

ILLUSTRATION 4-9
