GE AMX 4+ Technical Manual

 
         
REV 5 DIRECTION 2173225-100
7-1
 
   
  
This avoids damage to the front bumper when jacking up the AMX unit.
 Remove Pads
1. Remove the 10-32 x 1.25 inch bolts from each pad and remove the corner pads.
See Illustration 7-1.
2. Remove the 10-32 x 1.25 inch bolts and flat washers securing the front bumper
and remove the middle piece of the front bumper.

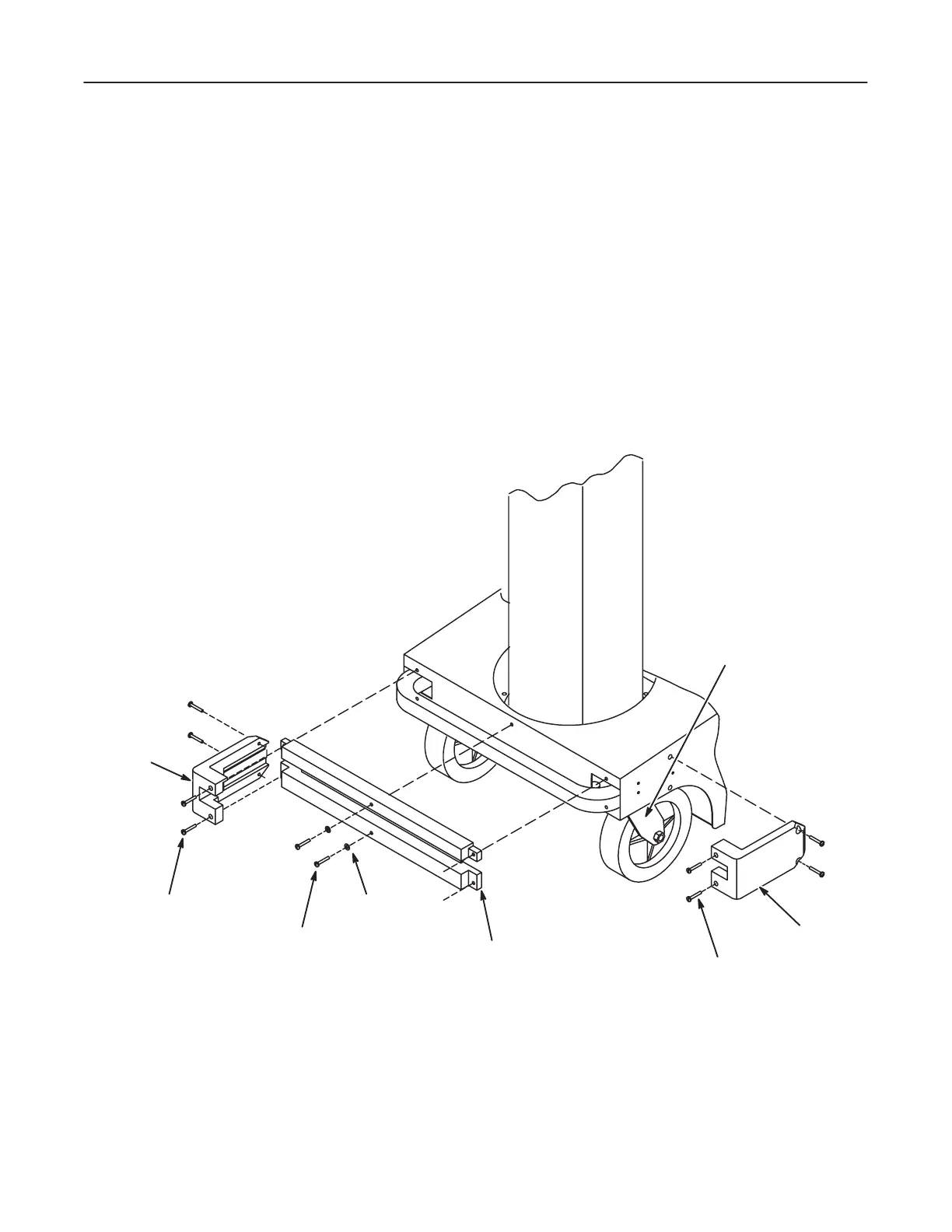

ILLUSTRATION 7-1
   
CORNER PAD
(4) 10-32 x 1.25I BOLT
CORNER PAD
(4) 10-32 x 1.25I BOLT
MIDDLE
PIECE
(2) 10-32 x 1.25I BOLT
(2) FLAT
WASHER
FRONT CASTER YOKE

GE AMX 4+ Specifications

General

Type	Mobile X-ray System
Maximum kVp	125 kVp
Collimator	Manual Collimator
Battery	Rechargeable, lead-acid
Image Receptor Compatibility	CR and DR systems
Focal Spot Size	1.2 mm
mAs Range	0.04 - 320 mAs
X-ray Tube	Rotating Anode
