GE AMX 4+

 
         
   
10-12
3. Continue routing and tyĆrapping the collimator cable along the anode cable to
strap point G." See Illustration 10-15.

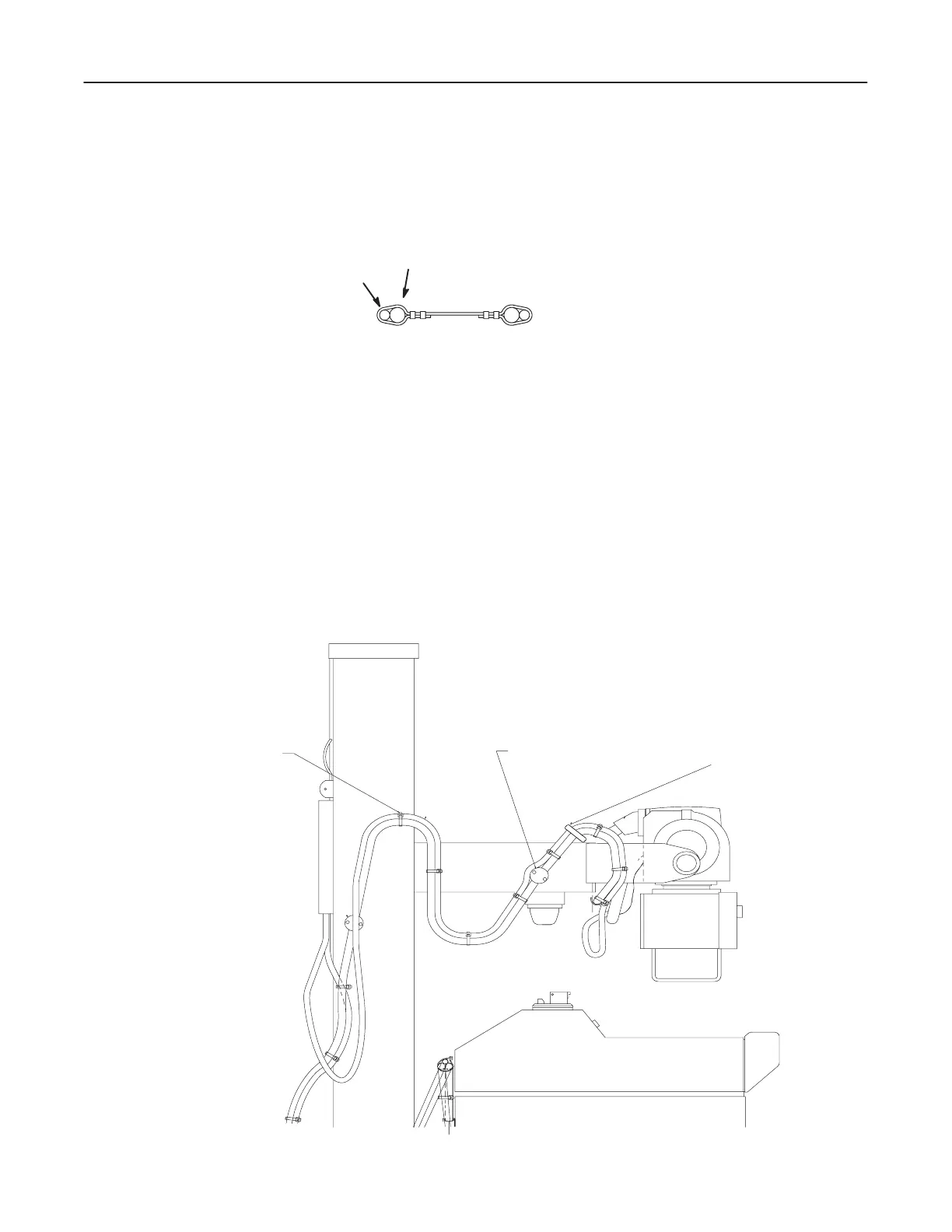

ILLUSTRATION 10-15
   



4. The horizontal arm brake cable is also picked up and retained until strap point
G." See Illustration 10-14.
5. There is a large loop after strap point G" before the cable enters the bottom of
the vertical column assembly terminal box and is connected to the terminal strip
AMX# A1 TS1. See Illustration 10-12 and Table 10-1.
 Horizontal Arm Brake Cable
1. The horizontal arm brake cable exits the left side of the horizontal arm outer tube
and is ty-rapped to the bottom of the anode cable just below clamp point H."
See Illustration 10-16.
ILLUSTRATION 10-16
 
 
     
  
