GE AMX 4+

 
         
REV 5 DIRECTION 2173225-100
3-9
% $!   
  # "
1. Remove horizontal arm assembly. Refer to Section 3-5.
2. Position horizontal arm assembly with latch block up.
3. Extend Horizontal Arm until clearance hole on underside is exposed.
4. Remove cable clamp. See Illustration 3-6.
5. Disconnect Brake Cable connection.
6. Remove the two stop block capscrews securing the brake and cable assembly to
the end of the outer tube. See Illustration 3-6.

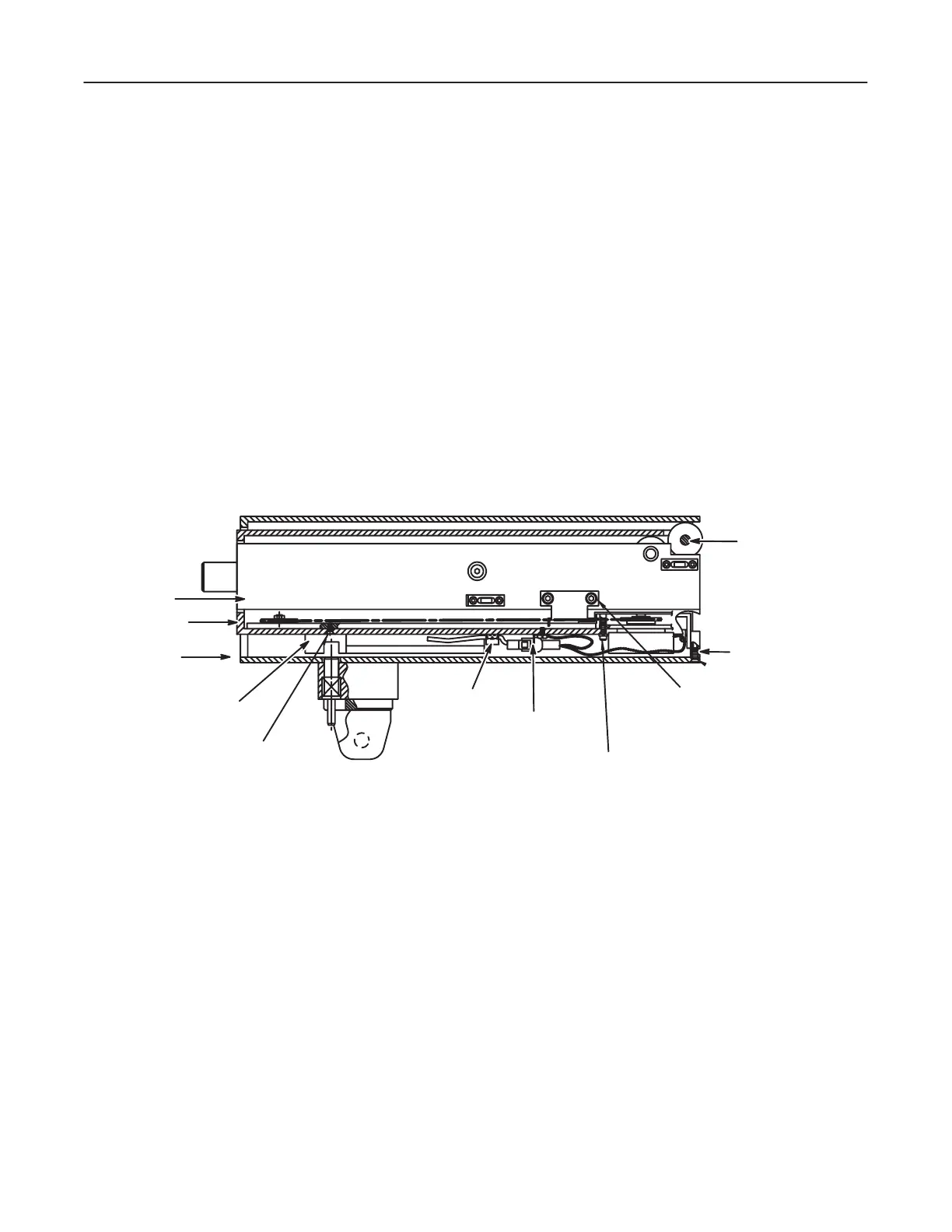

ILLUSTRATION 3-6
  
   
STOP BLOCK
CAPSCREWS
10-32 X 1/2 HEX
SOCKET FLATHEAD
LATCH BLOCK
CAPSCREWS
CENTER TUBE
OUTER TUBE
INNER TUBE
MOUNTING PLATE
CAPSCREW
6-32 X 3/8 HEX SOCKET
FLAT HEAD
BRAKE & CABLE ASSEMBLY
BRACKET CAPSCREWS
6-32 X 1/2 HEX SOCKET HEAD
CABLE CLAMP
BRAKE CONNECTOR BRACKET
& GROUND WIRE
INNER SHAFT &
RETAINING RINGS
BRAKE CAPSCREWS
6-32 X .62 HEX SOCKET HEAD
