Remove Follower Cable
If replacement of follower cable is required, all three cables should be replaced to enĆ
sure that the periodic maintenance time interval specified for replacement of the caĆ
bles remains the same.
Use this procedure for follower cable service, or in the event the procedure in
Section 4Ć3 cannot be successfully performed.
1. Remove vertical column from unit. Refer to Section 4-1. Vertical Column reĆ
moval is necessary in order to replace a follower cable.
2. Remove cover plate form the carriage assembly by removing four binding head
screws holding it in place. See Illustration 4-3.

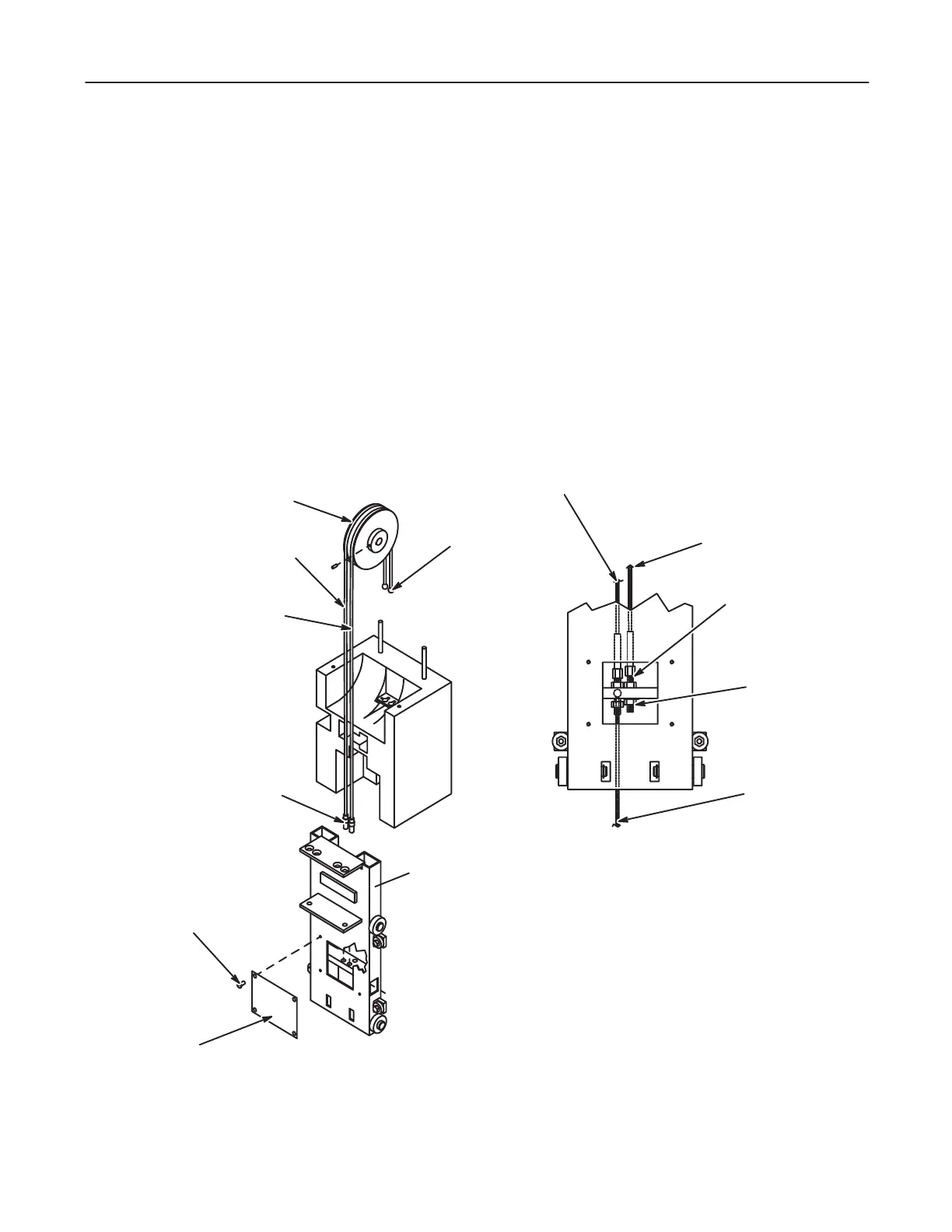

ILLUSTRATION 4-5
3. Move carriage near to bottom of column. This also brings counterweight to top
of column where it can be removed.
