9. Slowly withdraw pulley and brake assembly from top of column while sliding the
brake cable through slot in top of column. These must be done together or the
brake cable will be severed.
10. Pull main and safety cables from the column.
11. Remove the nuts from the stud ends of both cables.
12. Remove each cable from the pulley and brake assembly by first lifting it from its
pulley groove, moving it to the side of the pulley and then pulling it free. The ball
ends of these cables still remain attached to counterweight.
13. Remove the pulley and brake assembly.
Replace Upper Pulley and Bearings
1. Remove upper pulley and brake. Refer to Sections 4Ć4Ć1 and 4Ć4Ć2.
2. Place a tag on either the main cable or safety cable.
D This will aid in reĆinstalling them later in their correct positions.
3. Remove pulley set screws. See Illustration 4-7.

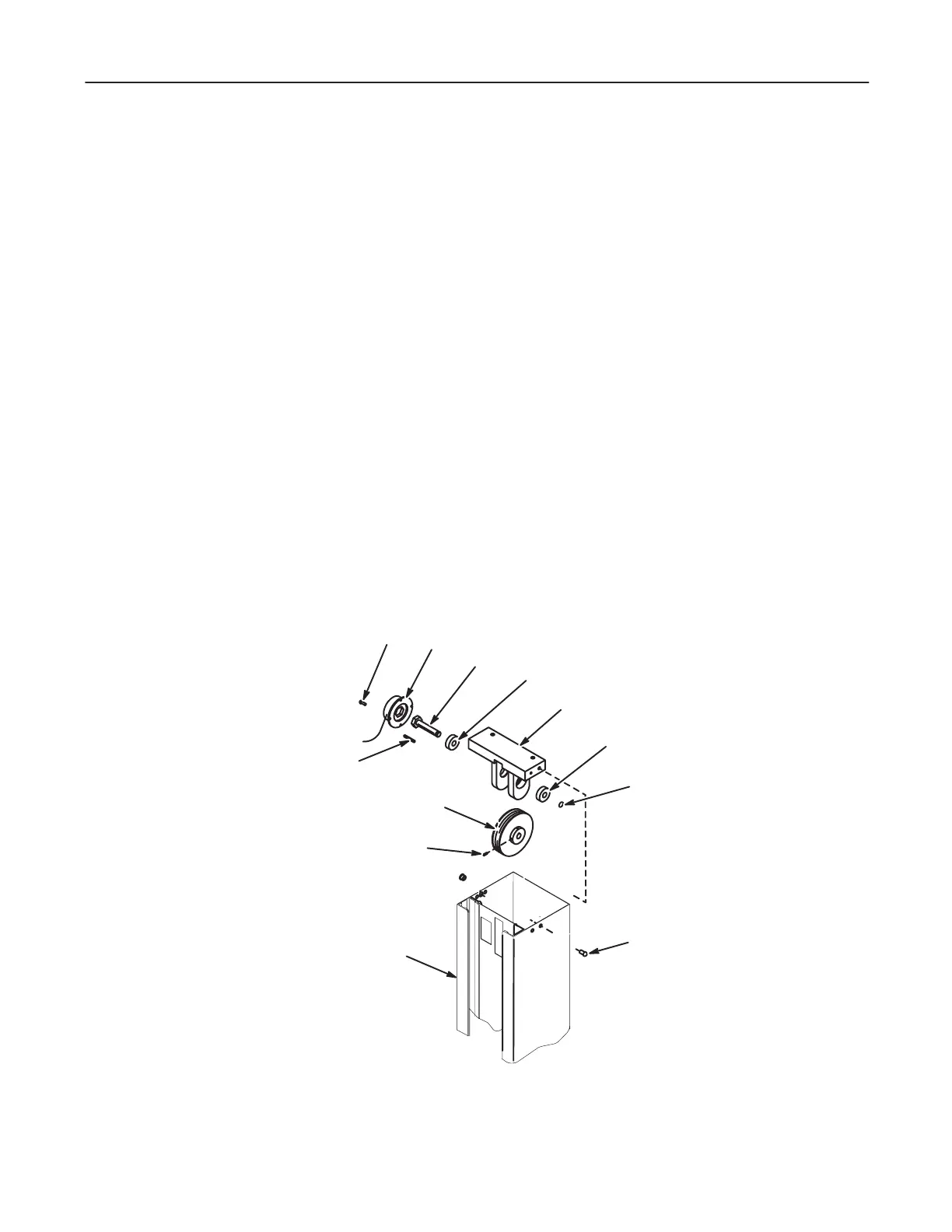

ILLUSTRATION 4-7
