 Anode Cable
1. The anode cable starts at the tube anode connector, runs through the yoke
crosses underneath to the opposite side of the yoke to clamp point D." See IllusĆ
tration 10-6.

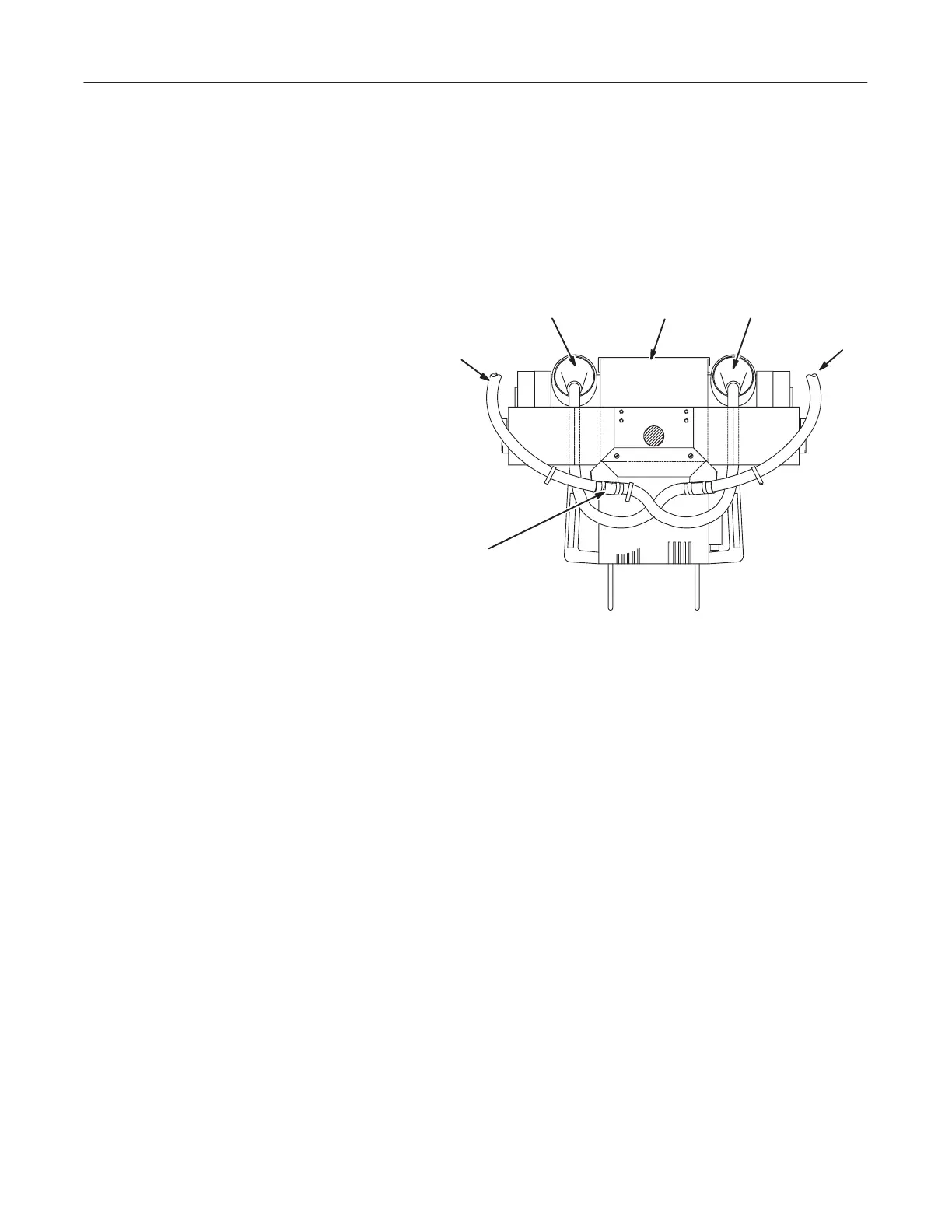

ILLUSTRATION 10-6
    
CATHODE
CONNECTOR
ANODE TO
STRAP POINT M"
CLAMP POINT L"
TUBE
ANODE
CONNECTOR
CATHOD
E

GE AMX 4+ Specifications

General

Type	Mobile X-ray System
Maximum kVp	125 kVp
Collimator	Manual Collimator
Battery	Rechargeable, lead-acid
Image Receptor Compatibility	CR and DR systems
Focal Spot Size	1.2 mm
mAs Range	0.04 - 320 mAs
X-ray Tube	Rotating Anode
