GE AMX 4+ Technical Manual

!  
  "      
REV 5 DIRECTION 2173225-100
6-4

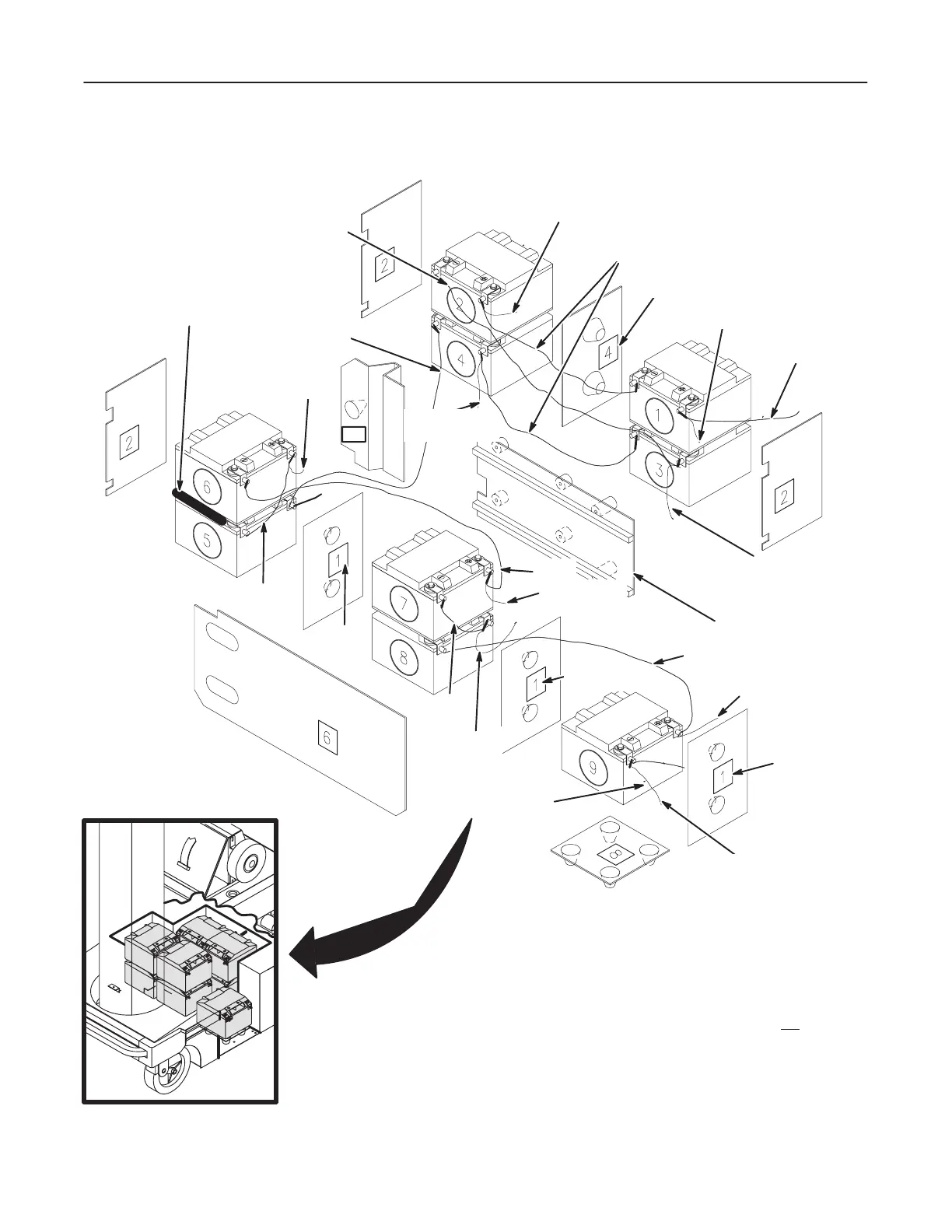

ILLUSTRATION 6-3
 
  THERE ARE NO INSULATORS #3 & #7.
  DON'T CONFUSE INSULATOR #4 WITH INSULATOR #1. INSULATOR #4 HAS TWO
NON-FUNCTIONAL HOLES. INSULATOR #1 HAVE TWO CUP-SHAPED BUMPS WITH NO
HOLES.
INSULATOR #1 MUST BE ORIENTED WITH BUMPS POINTING AWAY FROM YOU.
  ADD BATTERY SEPARATOR PADS BETWEEN BATTERIES1&3,2&4,5&6,AND7&8.
DON'T REMOVE PAPER BACKING FROM BATTERY SEPARATOR PADS. ORIENT PADS WITH PAPER
BACKING FACING UP.
CABLE 6
CABLE 8
CABLE 7
SENSE LEAD
CABLE 7 (2)
5
CABLE 7
SENSE LEAD
CABLE 6
SENSE LEAD
CABLE 4
SENSE LEAD
CABLE 4 TO
CIRCUIT BREAKER
BATTERY TEST
TERMINAL STRIP
CABLE 1
SENSE LEAD
CABLE 1
CABLE 3
CABLE 3
SENSE LEAD
CABLE 1
CABLE 1
SENSE LEAD
CABLE 5
SENSE LEAD
CABLE 5
CABLE 2
SENSE LEAD
CABLE 2
TO GROUND STUD
BATTERY SEPARATOR PAD
TYPICAL (4 PLACES)
SEE NOTE 3
SEE
NOTE 2
SEE
NOTE 2
SEE
NOTE 2
SEE
NOTE 2

GE AMX 4+ Specifications

General

Type	Mobile X-ray System
Maximum kVp	125 kVp
Collimator	Manual Collimator
Battery	Rechargeable, lead-acid
Image Receptor Compatibility	CR and DR systems
Focal Spot Size	1.2 mm
mAs Range	0.04 - 320 mAs
X-ray Tube	Rotating Anode
