REV 5 DIRECTION 2173225-100
6-7

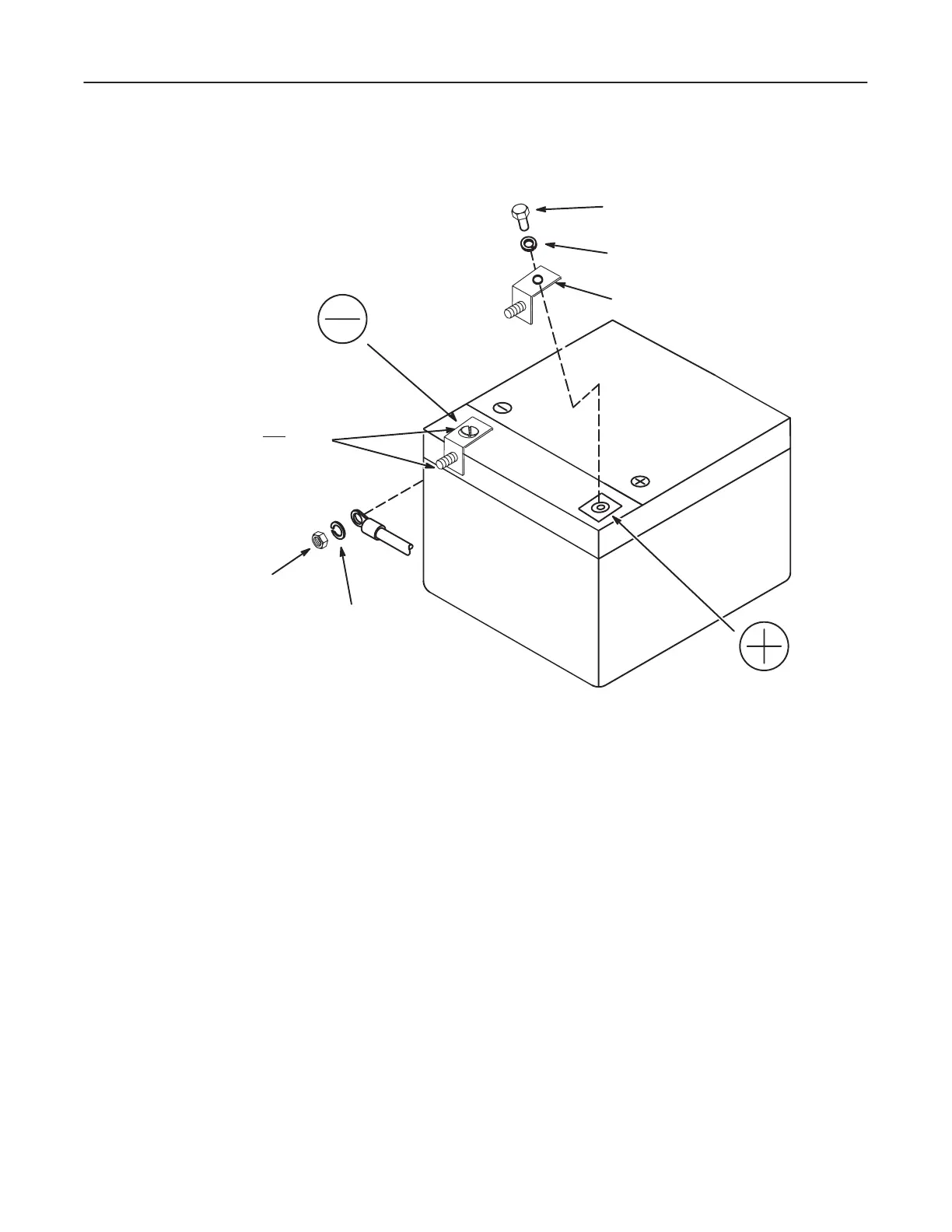

ILLUSTRATION 6-4
TERMINAL PLATE
TORQUE TO 45-50 LB-IN
(5.1-5.6 N-M) ON
BATTERY CONNECTIONS.
M6 LOCKWASHER
M6 HEX HD SCREW
M6 LOCKWASHER
M6 HEX NUT
6. Connect end of Cable #6 with sense lead to Battery #3 (+) and connect other
end to Battery #2 (-). Slide a boot over each terminal.
7. Connect a Cable #7 end with sense lead to Battery #4 (+), and connect other
end to Battery #3 (-). Slide a boot over each terminal.
8. Connect remaining Cable #7 end with sense lead to Battery #2 (+) and connect
other end to Battery #1 (-). Slide a boot over each terminal.
9. Connect end of Cable #8 without sense lead to Battery #4 (-), and slide a boot
over this terminal. Orient cable so that the terminal lug points down at 45_ toĆ
ward door opening.
10. Connect end of Cable #4 with sense lead to Battery #1 (+) and slide a boot over
this terminal. Route Cable #4 through grommet in hole in top of battery comĆ
partment, connect it to terminal #4 on circuit breaker in AMX1 A3, and slide
boot over terminal.
11. Install Insulator #5, #6, and the remaining Insulator #2 .
12. Position Batteries #5 & #6 in compartment opening stacked one on top of the
other with a separator pad between them.
