NetworX Version 3 Installation Manual
20

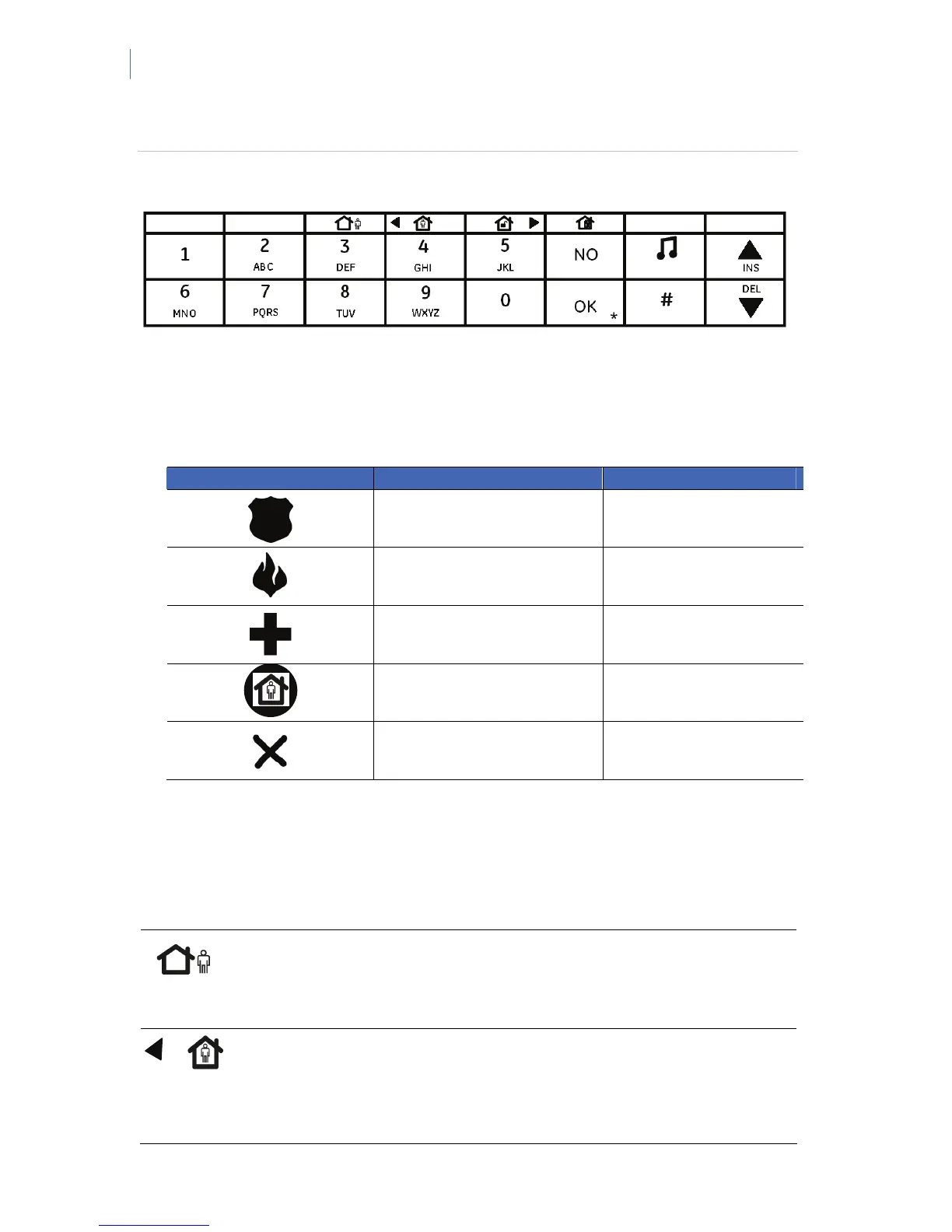

The NetworX V3 keypad has the following key layout out-of-the-box:
Figure 4. Default keypad layout.
F1 F2 F3 F4 F5 F6 F7 F8
The four top-row keys with the blank keycaps can be replaced by the installer, as they are supplied
with the keypad for this purpose.
Figure 3 shows the keypad with the optional function keycaps
placed in their default positions (factory setting). Optional keycaps available for assigning to the four
programmable keys are:
Keycap symbol Name Default factory setting
PANIC F1
FIRE F2
MEDICAL F8
NIGHT MODE F7
CANCEL Not assigned
Note: The function keycaps can be placed randomly over the four available positions. Actual function activation is
accomplished through a menu option during installation.
For more information about programming function keys F1 to F8, see Programming the function
keys on page
154.
Table 7. Key functions
Arm Away
Press to arm the system.
Note: Exact behavior of this key depends on the system settings configured by the
installer. For more information, see the Master Keypad, and the Quick Arm menu
option descriptions in the glossary.
Arm Stay
Press to arm the system in Stay mode.
Note: For this mode to work correctly, interior zones must be set. You can also
configure this key to toggle the Stay/Instant mode of the armed partition. For more
information on this button behavior, see the Master Keypad, Instant Stay Toggle, and
the Quick Arm menu option description in the glossary.
