GE RAFT VOLUSON™ P8/VOLUSON™P6

DIRECTION 5775469, R

EVISION 3 DRAFT (JULY 19, 2018) BASIC SERVICE MANUAL

8-154 Section 8-52 - Replacing optional Peripherals

9.) Unscrew 7 screws and disassemble REAR EMI COVER.

10.)Unscrew 2 screws and disassemble printer EMI cover 1 and 2.

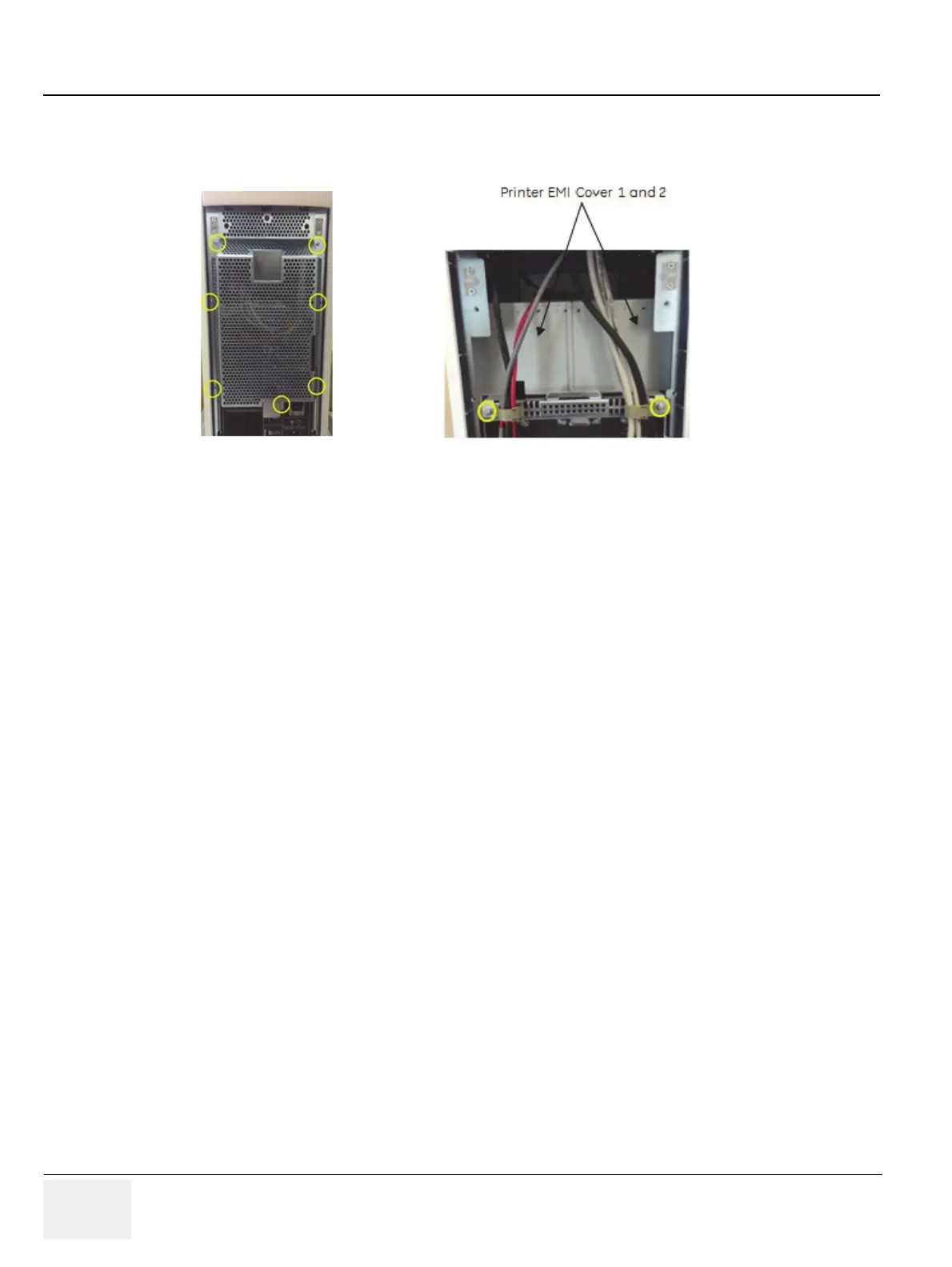

Figure 8-218 Disassembling printer EMI covers
